7200 BECBP Angularis Contactus Ball Bearings

Angularis Contactus Ball Bearings (ACBBs) plumae anuli interiores et exteriores circulae dispositae sunt inter se relativae in directione axis ferentis. Hoc modo isti gestus ordinantur ad onera coniuncta accommodanda, quae et onera radialia et axialia onera includunt.

Contact Us Nobis Contactus
PRIOR:3200 A-2ZTN9/MT33 Duplex Row Angularis Contact Ball Bearings SEQUENS:Quattuor-Point Contact Angularis Contact Ball Ferens
  • Descriptio
  • Specificationes
  • Nobis Contactus

Key Characteres et Commoda
High Load Capacity and Rigidity: Ob eorum consilium, quod magis elementorum volubilium elementorum (globorum) quam profunda sulcatum gestus globorum incorporationi concedit, altiorem facultatem habent oneris portandi ac magis rigiditatem pro eadem magnitudine.

Load Composita Accommodation: Simul accommodare possunt onera radialia et onera axialis unidirectionalia. Moles angulus contactus adaequans permittit variationem in ratione radialis ad axialem facultatem.

Idoneam ad Casio et High praecisionem; Hae gestus bene aptae sunt applicationibus ad celeritates rotationales altas et exquisitas positiones, praesertim in contextu sicut instrumentum machinae fusi.

Flexibile instruitur: Singula (singula) vel paria possunt (ut retro ad tergum, facie ad faciem, vel tandem dispositiones) ad axem bidirectionalem onera accommodare ac superiorem rigorem consequi. Processus institutionis ac temperatio directus est.

Operans euismod bonum: Praeclaram accelerationem et retardationem exhibent notas, quarum celeritas incipit et subsistit.

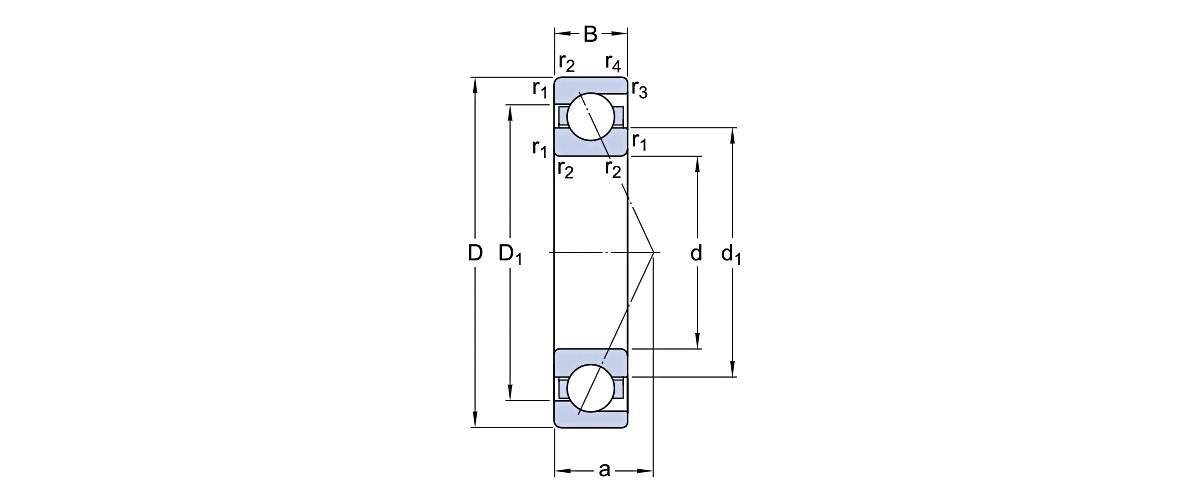

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
10 30 9 6.318 3.015 27000 27000 0.036 7200 BECBP Ferens
10 30 9 6.318 3.015 27000 27000 0.03 7200 BEP supportantes
12 32 10 6.849 3.42 25200 23400 0.036 7201 BECBP Ferens
12 32 10 6.849 3.42 25200 23400 0.036 7201 BEGAP Ferens
12 32 10 6.849 3.42 25200 23400 0.036 7201 BEP supportantes
12 37 12 9.54 4.5 23400 18000 0.06 7301 BE-2RZP Ferens
12 37 12 9.54 4.5 23400 21600 0.06 7301 BEP supportantes
15 35 11 7.488 3.96 21600 18000 0.045 7202 BE-2RZP Ferens
15 35 11 7.488 3.96 21600 21600 0.045 7202 BEP supportantes
15 35 11 7.92 4.185 21600 23400 0.045 7202 BECBP Ferens
15 35 11 7.92 4.185 21600 23400 0.045 7202 BEGAP Ferens
15 35 11 7.92 4.185 21600 23400 0.045 7202 BEGBP Ferens
15 35 11 9.18 4.68 23400 36000 0.045 7202 ACCBM Ferens
15 42 13 11.7 6.03 19800 15300 0.082 7302 BE-2RZP Ferens
15 42 13 11.7 6.03 19800 18000 0.08 7302 BECBP Ferens
15 42 13 11.7 6.03 19800 18000 0.08 7302 BEP supportantes
17 40 12 9.36 4.95 18000 18000 0.065 7203 BEY Ferens
17 40 12 9.36 4.95 19800 15300 0.063 7203 BE-2RZP Ferens
17 40 12 9.36 4.95 19800 18000 0.065 7203 BEP supportantes
17 40 12 9.9 5.265 19800 19800 0.065 7203 BECBP Ferens
17 40 12 9.9 5.265 19800 19800 0.065 7203 BEGAP Ferens
17 40 12 9.9 5.265 19800 25200 0.065 7203 BECBM Ferens
17 40 12 11.25 6.03 21600 30600 0.065 7203 ACCBM Ferens
17 47 14 14.31 7.47 18000 13500 0.1 7303 BE-2RZP Ferens
17 47 14 14.31 7.47 18000 17100 0.11 7303 BECBP Ferens
17 47 14 14.31 7.47 18000 17100 0.11 7303 BEGAP Ferens
17 47 14 14.31 7.47 18000 17100 0.11 7303 BEP supportantes
20 47 14 11.97 6.885 17100 12600 0.15 7204 BE-2RZP Ferens
20 47 14 11.97 6.885 17100 16200 0.11 7204 BEP supportantes

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
20 47 14 12.87 7.335 17100 17100 0.11 7204 BECBJ Ferens
20 47 14 12.87 7.335 17100 17100 0.11 7204 BECBP Ferens
20 47 14 12.87 7.335 17100 17100 0.11 7204 BECBPH Ferens
20 47 14 12.87 7.335 17100 17100 0.11 7204 BECBY Ferens
20 47 14 12.87 7.335 17100 17100 0.11 7204 BEGAP Ferens
20 47 14 12.87 7.335 17100 17100 0.11 7204 BEGBP supportantes
20 47 14 12.87 7.335 17100 21600 0.11 7204 BECBM Ferens
20 47 14 14.4 8.37 18000 27000 0.11 7204 ACCBM Ferens
20 52 15 15.66 8.55 15300 11700 0.14 7304 BE-2RZP Ferens
20 52 15 15.66 8.55 15300 14400 0.14 7304 BEP supportantes
20 52 15 17.1 9 15300 16200 0.14 7304 BECBP supportantes
20 52 15 17.1 9 15300 16200 0.14 7304 BECBPH Ferens
20 52 15 17.1 9 15300 16200 0.14 7304 BEGAP Ferens
20 52 15 17.1 9 15300 16200 0.14 7304 BEGBP supportantes
20 52 15 17.1 9 15300 19800 0.14 7304 BECBM Ferens
20 52 15 17.1 9 16200 16200 0.14 7304 BECBY Ferens
20 52 15 18.72 10.08 17100 23400 0.14 7304 ACCBM Ferens
25 52 15 13.32 8.37 14400 10800 0.13 7205 BE-2RZP Ferens
25 52 15 13.32 8.37 14400 13500 0.13 7205 BEP supportantes
25 52 15 13.32 8.37 14400 13500 0.13 7205 BEY Ferens
25 52 15 14.04 9 14400 15300 0.13 7205 BECBP Ferens
25 52 15 14.04 9 14400 15300 0.13 7205 BECBPH Ferens
25 52 15 14.04 9 14400 15300 0.13 7205 BECBY Ferens
25 52 15 14.04 9 14400 15300 0.13 7205 BEGAP Ferens
25 52 15 14.04 9 14400 15300 0.13 7205 BEGAY Ferens
25 52 15 14.04 9 14400 15300 0.13 7205 BEGBY Ferens
25 52 15 14.04 9 14400 18000 0.13 7205 BECBM Ferens
25 52 15 16.2 10.26 15300 23400 0.13 7205 ACCBM Ferens
25 62 17 21.78 12.6 12600 9900 0.23 7305 BE-2RZP Ferens
25 62 17 21.78 12.6 12600 12600 0.23 7305 BEP supportantes

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
25 62 17 23.85 13.77 12600 13500 0.23 7305 BECBP Ferens
25 62 17 26.5 15.3 14000 15000 0.23 7305 BECBPH Ferens
25 62 17 26.5 15.3 14000 15000 0.23 7305 BECBY Ferens
25 62 17 26.5 15.3 14000 15000 0.23 7305 BEGAP Ferens
25 62 17 26.5 15.3 14000 15000 0.23 7305 BEGBP supportantes
25 62 17 26.5 15.3 14000 15000 0.23 7305 BEGBY Ferens
25 62 17 26.5 15.3 14000 19000 0.23 7305 BECBM Ferens
25 62 17 29 17 15000 22000 0.23 7305 ACCBM Ferens
25 80 21 39.7 23.6 11000 15000 0.61 7405 BCBM Ferens
25 80 21 39.7 23.6 11000 15000 0.61 7405 BM Bear
30 62 16 22.5 14.3 13000 10000 0.2 7206 BE-2RZP Ferens
30 62 16 22.5 14.3 13000 13000 0.2 7206 BEP supportantes
30 62 16 24 15.6 13000 14000 0.2 7206 BECBP Ferens
30 62 16 24 15.6 13000 14000 0.2 7206 BECBPH Ferens
30 62 16 24 15.6 13000 14000 0.2 7206 BEGAP Ferens
30 62 16 24 15.6 13000 14000 0.2 7206 BEGBP supportantes
30 62 16 24 15.6 13000 18000 0.2 7206 BECBM Ferens
30 62 16 24 15.6 14000 14000 0.2 7206 BECBY Ferens
30 62 16 24 15.6 14000 14000 0.2 7206 BEGAJ Ferens
30 62 16 24 15.6 14000 14000 0.2 7206 BEGAY Ferens
30 62 16 27.5 17.3 15000 20000 0.2 7206 ACCBM Ferens
30 72 19 32.5 19.3 12000 9500 0.35 7306 BE-2RZP Ferens
30 72 19 32.5 19.3 12000 12000 0.35 7306 BEP supportantes
30 72 19 32.5 19.3 12000 16000 0.35 7306 BEGBM Ferens
30 72 19 35.5 21.2 12000 13000 0.35 7306 BECBP supportantes
30 72 19 35.5 21.2 12000 13000 0.35 7306 BEGAP Ferens
30 72 19 35.5 21.2 12000 13000 0.35 7306 BEGAPH Ferens
30 72 19 35.5 21.2 12000 13000 0.35 7306 BEGBP supportantes
30 72 19 35.5 21.2 12000 16000 0.35 7306 BECBM Ferens
30 72 19 35.5 21.2 12000 16000 0.35 7306 BEGAM Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
30 72 19 35.5 21.2 13000 13000 0.35 7306 BECBY Ferens
30 72 19 31.95 19.08 11700 11700 0.34 7306 BEGBY Ferens
30 72 19 35.1 21.24 11700 17100 0.34 7306 ACCBM Ferens
30 90 23 42.75 26.1 9000 11700 0.83 7406 BCBM Ferens
30 90 23 42.75 26.1 9000 11700 0.83 7406 BM Ferens
35 72 17 26.19 17.1 9900 8100 0.35 7207 BE-2RZP Ferens
35 72 17 26.19 17.1 9900 9900 0.35 7207 BEP supportantes
35 72 17 27.9 18.72 9900 10800 0.35 7207 BECBP Ferens
35 72 17 27.9 18.72 9900 10800 0.35 7207 BECBPH Ferens
35 72 17 27.9 18.72 9900 10800 0.35 7207 BEGAP Ferens
35 72 17 27.9 18.72 9900 10800 0.35 7207 BEGBP Ferens
35 72 17 27.9 18.72 9900 13500 0.35 7207 BECBM Ferens
35 72 17 27.9 18.72 9900 13500 0.35 7207 BEGAM Ferens
35 72 17 27.9 18.72 10800 10800 0.35 7207 BECBY Ferens
35 72 17 27.9 18.72 10800 10800 0.35 7207 BEGAY Ferens
35 72 17 27.9 18.72 10800 10800 0.35 7207 BEGBY Ferens
35 72 17 31.95 20.88 10800 16200 0.35 7207 ACCBM Ferens
35 80 21 35.1 22.05 9900 7650 0.45 7307 BE-2RZP Ferens
35 80 21 35.1 22.05 9900 9000 0.45 7307 BEP supportantes
35 80 21 37.35 23.85 9900 9900 0.45 7307 BECBP Ferens
35 80 21 37.35 23.85 9900 9900 0.45 7307 BECBY Ferens
35 80 21 37.35 23.85 9900 9900 0.45 7307 BEGAP Ferens
35 80 21 37.35 23.85 9900 9900 0.45 7307 BEGAPH Ferens
35 80 21 37.35 23.85 9900 9900 0.45 7307 BEGBP Ferens
35 80 21 37.35 23.85 9900 12600 0.45 7307 BECBM Ferens
35 80 21 37.35 23.85 9900 12600 0.45 7307 BEGAM Ferens
35 80 21 41.85 27 9900 15300 0.45 7307 ACCBM Ferens
35 100 25 54.45 34.2 8100 10800 1.1 7407 BCBM supportantes
35 100 25 54.45 34.2 8100 10800 1.1 7407 BM Bear
40 80 18 31.05 21.6 9000 7200 0.42 7208 BE-2RZP Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
40 80 18 31.05 21.6 9000 9000 0.42 7208 BEP supportantes
40 80 18 32.85 23.4 9000 9900 0.37 7208 BECBJ Ferens
40 80 18 32.85 23.4 9000 9900 0.37 7208 BECBP Ferens
40 80 18 32.85 23.4 9000 9900 0.37 7208 BECBPH Ferens
40 80 18 32.85 23.4 9000 9900 0.37 7208 BEGAP Ferens
40 80 18 32.85 23.4 9000 11700 0.37 7208 BECBM Ferens
40 80 18 32.85 23.4 9900 9900 0.37 7208 BECBY Ferens
40 80 18 32.85 23.4 9900 9900 0.37 7208 BEGAY Ferens
40 80 18 32.85 23.4 9900 9900 0.37 7208 BEGBY Ferens
40 80 18 37.35 26.1 9900 14400 0.37 7208 ACCBM Ferens
40 90 23 41.58 27.45 8550 6750 0.62 7308 BE-2RZP Ferens
40 90 23 41.58 27.45 8550 8100 0.62 7308 BEP supportantes
40 90 23 45 29.25 8550 9000 0.62 (VII)CCCVIII BECAP supportantes
40 90 23 45 29.25 8550 9000 0.62 7308 BECBJ Ferens
40 90 23 45 29.25 8550 9000 0.62 7308 BECBP supportantes
40 90 23 45 29.25 8550 9000 0.62 7308 BEGAP Ferens
40 90 23 45 29.25 8550 9000 0.62 7308 BEGAPH Ferens
40 90 23 45 29.25 8550 9000 0.62 7308 BEGBP supportantes
40 90 23 45 29.25 8550 10800 0.62 7308 BECBM Ferens
40 90 23 45 29.25 8550 10800 0.62 7308 BEGAM Ferens
40 90 23 45 29.25 8550 10800 0.62 7308 BEGBM Ferens
40 90 23 45 29.25 9000 9000 0.62 7308 BECBY Ferens
40 90 23 45 29.25 9000 9000 0.62 7308 BEGBY Ferens
40 90 23 50.4 32.4 9000 13500 0.62 7308 ACCBM Ferens
40 110 27 63.18 40.5 7200 9900 1.4 7408 BCBM supportantes
40 110 27 63.18 40.5 7200 9900 1.4 7408 BGBM Ferens
40 110 27 63.18 40.5 7200 9900 1.4 7408 BM Bear
45 85 19 32.22 23.4 8550 6750 0.52 7209 BE-2RZP Ferens
45 85 19 32.22 23.4 8550 8100 0.52 7209 BEP supportantes
45 85 19 34.2 25.65 8550 9000 0.52 7209 BECBJ Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
45 85 19 34.2 25.65 8550 9000 0.52 7209 BECBP Ferens
45 85 19 34.2 25.65 8550 9000 0.42 7209 BEGAP Ferens
45 85 19 34.2 25.65 8550 9000 0.42 7209 BEGAPH Ferens
45 85 19 34.2 25.65 8550 10800 0.42 7209 BECBM Ferens
45 85 19 34.2 25.65 9000 9000 0.42 7209 BECBY Ferens
45 85 19 34.2 25.65 9000 9000 0.42 7209 BEGAY Ferens
45 85 19 34.2 25.65 9000 9000 0.42 7209 BEGBY Ferens
45 85 19 39.6 28.8 9000 13500 0.42 7209 ACCBM Ferens
45 100 25 50.31 33.75 7650 6030 0.85 7309 BE-2RZP Ferens
45 100 25 50.31 33.75 7650 7200 0.85 7309 BEP supportantes
45 100 25 54.9 36.45 7650 8100 0.85 (LXXIII)CCCIX BECAP supportantes
45 100 25 54.9 36.45 7650 8100 0.85 7309 BECBJ Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BECBP supportantes
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGAM Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGAP Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGAPH Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGBP supportantes
45 100 25 54.9 36.45 7650 9900 0.85 7309 BECBM Ferens
45 100 25 54.9 36.45 8100 8100 0.85 7309 BECBY Ferens
45 100 25 54.9 36.45 8100 8100 0.85 7309 BEGBY Ferens
45 100 25 61.2 40.95 8100 11700 0.85 7309 ACCBM Ferens
45 120 29 76.68 49.5 6750 6750 1.55 7409 BCBM supportantes
45 120 29 76.68 49.5 6750 6750 1.55 7409 BGBM Ferens
45 120 29 76.68 49.5 6750 6750 1.55 7409 BGM Ferens
50 90 20 33.93 25.65 8100 6300 0.55 7210 BE-2RZP Ferens
50 90 20 33.93 25.65 8100 7650 0.55 7210 BEP supportantes
50 90 20 36 27.9 8100 8100 0.55 7210 BECBJ Ferens
50 90 20 36 27.9 8100 8100 0.55 7210 BECBP Ferens
50 90 20 36 27.9 8100 8100 0.55 7210 BECBPH Ferens
50 90 20 36 27.9 8100 8100 0.55 7210 BECBY Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
45 85 19 34.2 25.65 8550 9000 0.52 7209 BECBP Ferens
45 85 19 34.2 25.65 8550 9000 0.42 7209 BEGAP Ferens
45 85 19 34.2 25.65 8550 9000 0.42 7209 BEGAPH Ferens
45 85 19 34.2 25.65 8550 10800 0.42 7209 BECBM Ferens
45 85 19 34.2 25.65 9000 9000 0.42 7209 BECBY Ferens
45 85 19 34.2 25.65 9000 9000 0.42 7209 BEGAY Ferens
45 85 19 34.2 25.65 9000 9000 0.42 7209 BEGBY Ferens
45 85 19 39.6 28.8 9000 13500 0.42 7209 ACCBM Ferens
45 100 25 50.31 33.75 7650 6030 0.85 7309 BE-2RZP Ferens
45 100 25 50.31 33.75 7650 7200 0.85 7309 BEP supportantes
45 100 25 54.9 36.45 7650 8100 0.85 (LXXIII)CCCIX BECAP supportantes
45 100 25 54.9 36.45 7650 8100 0.85 7309 BECBJ Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BECBP supportantes
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGAM Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGAP Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGAPH Ferens
45 100 25 54.9 36.45 7650 8100 0.85 7309 BEGBP supportantes
45 100 25 54.9 36.45 7650 9900 0.85 7309 BECBM Ferens
45 100 25 54.9 36.45 8100 8100 0.85 7309 BECBY Ferens
45 100 25 54.9 36.45 8100 8100 0.85 7309 BEGBY Ferens
45 100 25 61.2 40.95 8100 11700 0.85 7309 ACCBM Ferens
45 120 29 76.68 49.5 6750 6750 1.55 7409 BCBM supportantes
45 120 29 76.68 49.5 6750 6750 1.55 7409 BGBM Ferens
45 120 29 76.68 49.5 6750 6750 1.55 7409 BGM Ferens
50 90 20 33.93 25.65 8100 6300 0.55 7210 BE-2RZP Ferens
50 90 20 33.93 25.65 8100 7650 0.55 7210 BEP supportantes
50 90 20 36 27.9 8100 8100 0.55 7210 BECBJ Ferens
50 90 20 36 27.9 8100 8100 0.55 7210 BECBP Ferens
50 90 20 36 27.9 8100 8100 0.55 7210 BECBPH Ferens
50 90 20 36 27.9 8100 8100 0.55 7210 BECBY Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
55 100 21 44.1 36 7200 9000 0.62 7211 BECBM Ferens
55 100 21 51.3 40.5 7650 10800 0.62 7211 ACCBM Ferens
55 120 29 71.37 49.5 6300 6030 1.4 7311 BEP supportantes
55 120 29 76.5 54 6300 6300 1.4 7311 BECBJ Ferens
55 120 29 76.5 54 6300 6300 1.4 7311 BECBP Ferens
55 120 29 76.5 54 6300 6300 1.4 7311 BECBPH Ferens
55 120 29 76.5 54 6300 6300 1.4 7311 BEGAP Ferens
55 120 29 76.5 54 6300 6300 1.4 7311 BEGAY Ferens
55 120 29 76.5 54 6300 6300 1.4 7311 BEGBP supportantes
55 120 29 76.5 54 6300 6300 1.4 7311 BEGBY Ferens
55 120 29 76.5 54 6300 8100 1.4 7311 BECBM Ferens
55 120 29 76.5 54 6300 8100 1.4 7311 BECCM Ferens
55 120 29 76.5 54 6300 8100 1.4 7311 BEGAM Ferens
55 120 29 76.5 54 6300 8100 1.4 7311 BEGBM Ferens
55 120 29 81 58.95 6300 6300 1.4 7311 BECBY Ferens
55 120 29 86.85 60.3 6750 9900 1.4 7311 ACCBM Ferens
55 140 33 99.9 68.85 5670 7200 2.75 7411 BCBM Ferens
55 140 33 99.9 68.85 5670 7200 2.75 7411 BGAM Ferens
55 140 33 99.9 68.85 5670 7200 2.75 7411 BGBM Ferens
55 140 33 99.9 68.85 5670 7200 2.75 7411 BGM Ferens
55 140 33 99.9 68.85 5670 7200 2.75 7411 BM Bear
60 110 22 51.48 40.95 6300 6300 0.8 7212 BEP supportantes
60 110 22 54.9 45 6300 6750 0.8 7212 BECBJ Ferens
60 110 22 54.9 45 6300 6750 0.8 7212 BECBP Ferens
60 110 22 54.9 45 6300 6750 0.8 7212 BECBPH Ferens
60 110 22 54.9 45 6300 6750 0.8 7212 BECBY Ferens
60 110 22 54.9 45 6300 6750 0.8 7212 BEGAP Ferens
60 110 22 54.9 45 6300 6750 0.8 7212 BEGBP Ferens
60 110 22 54.9 45 6300 8550 0.8 7212 BECBM Ferens
60 110 22 54.9 45 6300 8550 0.8 7212 BEGAM Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
60 110 22 62.55 50.4 7200 9900 0.8 7212 ACCBM Ferens
60 130 31 86.04 62.55 5670 5400 1.75 7312 BEP supportantes
60 130 31 93.6 68.85 5670 6030 1.75 7312 BECAP Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BECBJ Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BECBP Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BECBPH Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BECBY Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BEGAP Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BEGAY Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BEGBP Ferens
60 130 31 93.6 68.85 5670 6030 1.75 7312 BEGBY Ferens
60 130 31 93.6 68.85 5670 7650 1.75 7312 BECBM Ferens
60 130 31 93.6 68.85 5670 7650 1.75 7312 BECCM Ferens
60 130 31 93.6 68.85 5670 7650 1.75 7312 BEGAM Ferens
60 130 31 93.6 68.85 5670 7650 1.75 7312 BEGBM Ferens
60 130 31 104.4 76.5 6300 9000 1.75 7312 ACCBM Ferens
60 150 35 107.1 77.85 5040 6750 3.3 7412 BCBM Ferens
60 150 35 107.1 77.85 5040 6750 3.3 7412 BGAM Ferens
60 150 35 107.1 77.85 5040 6750 3.3 7412 BGBM Ferens
60 150 35 107.1 77.85 5040 6750 3.3 7412 BM Bear
65 120 23 59.67 48.6 6030 5670 1 7213 BEGAF Ferens
65 120 23 59.67 48.6 6030 5670 1 7213 BEP supportantes
65 120 23 62.55 51.3 6030 6030 1 7213 BECBJ Ferens
65 120 23 62.55 51.3 6030 6030 1 7213 BECBP Ferens
65 120 23 62.55 51.3 6030 6030 1 7213 BECBY Ferens
65 120 23 62.55 51.3 6030 6030 1 7213 BEGAP Ferens
65 120 23 62.55 51.3 6030 6030 1 7213 BEGAPH Ferens
65 120 23 62.55 51.3 6030 7650 1 7213 BECBM Ferens
65 120 23 73.35 58.95 6300 9000 1 7213 ACCBM Ferens
65 140 33 97.2 72 5400 5040 2.15 7313 BECBF ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
65 140 33 97.2 72 5400 5040 2.15 7313 BEGAF Ferens
65 140 33 97.2 72 5400 5040 2.15 7313 BEP supportantes
65 140 33 104.4 77.85 5400 5670 2.15 7313 BECBJ Ferens
65 140 33 104.4 77.85 5400 5670 2.15 7313 BECBP Ferens
65 140 33 104.4 77.85 5400 5670 2.15 7313 BECBPH Ferens
65 140 33 104.4 77.85 5400 5670 2.15 7313 BECBY Ferens
65 140 33 104.4 77.85 5400 5670 2.15 7313 BEGAP Ferens
65 140 33 104.4 77.85 5400 5670 2.15 7313 BEGBP supportantes
65 140 33 104.4 77.85 5400 5670 2.15 7313 BEGBY Ferens
65 140 33 104.4 77.85 5400 7200 2.15 7313 BECBM Ferens
65 140 33 104.4 77.85 5400 7200 2.15 7313 BECCM Ferens
65 140 33 104.4 77.85 5400 7200 2.15 7313 BEGAM Ferens
65 140 33 104.4 77.85 5400 7200 2.15 7313 BEGBM Ferens
65 140 33 118.8 86.85 5670 8550 2.15 7313 ACCBM Ferens
65 160 37 117 86.85 4770 4770 4 7413 BGBM Ferens
65 160 37 117 86.85 4770 6300 4 7413 BCBM Ferens
69.85 158.75 34.925 124.2 93.6 5400 5400 3.6 AMS 22 ABP Ferens
70 125 24 60.84 50.4 5670 5400 1.1 7214 BEGAF Ferens
70 125 24 60.84 50.4 5670 5400 1.1 7214 BEP supportantes
70 125 24 64.8 54 5670 5670 1.1 7214 BECBJ Ferens
70 125 24 64.8 54 5670 5670 1.1 7214 BECBP Ferens
70 125 24 64.8 54 5670 5670 1.1 7214 BECBPH Ferens
70 125 24 64.8 54 5670 5670 1.1 7214 BECBY Ferens
70 125 24 64.8 54 5670 5670 1.1 7214 BEGAP Ferens
70 125 24 64.8 54 5670 7200 1.1 7214 BECBM Ferens
70 125 24 64.8 54 5670 7200 1.1 7214 BEGAM Ferens
70 125 24 74.7 61.2 6030 9000 1.1 7214 ACCBM Ferens
70 150 35 107.1 81 5040 4770 2.65 7314 BEGAF Ferens
70 150 35 107.1 81 5040 4770 2.65 7314 BEP supportantes
70 150 35 114.3 88.2 5040 5040 2.65 7314 BECAP Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
70 150 35 114.3 88.2 5040 5040 2.65 7314 BECBJ Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BECBP Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BECBPH Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BECBY Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BEGAJ Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BEGAP Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BEGAPH Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BEGAY Ferens
70 150 35 114.3 88.2 5040 5040 2.65 7314 BEGBY Ferens
70 150 35 114.3 88.2 5040 6300 2.65 7314 BECBM Ferens
70 150 35 114.3 88.2 5040 6300 2.65 7314 BEGAM Ferens
70 150 35 128.7 99 5400 7650 2.65 7314 ACCBM Ferens
70 180 42 143.1 114.3 4320 5670 5.8 7414 BCBM Ferens
70 180 42 143.1 114.3 4320 5670 5.8 7414 BGAM Ferens
75 130 25 63.18 54 5400 5040 1.2 7215 BEP supportantes
75 130 25 66.15 58.95 5400 5670 1.2 7215 BECBJ Ferens
75 130 25 66.15 58.95 5400 5670 1.2 7215 BECBP Ferens
75 130 25 66.15 58.95 5400 5670 1.2 7215 BECBPH Ferens
75 130 25 66.15 58.95 5400 5670 1.2 7215 BEGAP Ferens
75 130 25 66.15 58.95 5400 7200 1.2 7215 BECBM Ferens
75 130 25 66.15 58.95 5670 5670 1.2 7215 BECBY Ferens
75 130 25 66.15 58.95 5670 5670 1.2 7215 BEGAM Ferens
75 130 25 66.15 58.95 5670 5670 1.2 7215 BEGAY Ferens
75 160 37 112.5 88.2 4770 4500 3.2 7315 BEP supportantes
75 160 37 118.8 93.6 4770 4770 3.2 7315 BECBJ Ferens
75 160 37 118.8 93.6 4770 4770 3.2 7315 BECBP Ferens
75 160 37 118.8 93.6 4770 4770 3.2 7315 BECBY Ferens
75 160 37 118.8 93.6 4770 4770 3.2 7315 BEGAP Ferens
75 160 37 118.8 93.6 4770 4770 3.2 7315 BEGAPH Ferens
75 160 37 118.8 93.6 4770 6030 3.2 7315 BECBM Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
75 160 37 118.8 93.6 4770 6030 3.2 7315 BEGAM ferens
75 190 45 151.2 126 4050 5400 6.85 7415 BCBM Ferens
75 190 45 151.2 126 4050 5400 6.85 7415 BGAM Ferens
75 190 45 151.2 126 4050 5400 6.85 7415 BGBM Ferens
76.2 177.8 39.688 146.7 123.3 4770 4500 5.21 AMS 24 ABP Ferens
80 140 26 72.54 62.55 5040 4770 1.45 7216 BEGAF Ferens
80 140 26 72.54 62.55 5040 4770 1.45 7216 BEGAP Ferens
80 140 26 72.54 62.55 5040 4770 1.45 7216 BEP supportantes
80 140 26 76.5 67.5 5040 5040 1.45 7216 BECBJ Ferens
80 140 26 76.5 67.5 5040 5040 1.45 7216 BECBP Ferens
80 140 26 76.5 67.5 5040 5040 1.45 7216 BECBPH Ferens
80 140 26 76.5 67.5 5040 5040 1.45 7216 BECBY Ferens
80 140 26 76.5 67.5 5040 5040 1.45 7216 BEGAPH Ferens
80 140 26 76.5 67.5 5040 6300 1.45 7216 BECBM Ferens
80 140 26 76.5 67.5 5040 6300 1.45 7216 BEGAM Ferens
80 170 39 121.5 99 4500 4050 3.8 7316 BEP supportantes
80 170 39 128.7 106.2 4500 4500 3.8 7316 BECBJ Ferens
80 170 39 128.7 106.2 4500 4500 3.8 7316 BECBP supportantes
80 170 39 128.7 106.2 4500 4500 3.8 7316 BECBPH Ferens
80 170 39 128.7 106.2 4500 4500 3.8 7316 BECBY Ferens
80 170 39 128.7 106.2 4500 4500 3.8 7316 BEGAP Ferens
80 170 39 128.7 106.2 4500 4500 3.8 7316 BEGAY Ferens
80 170 39 128.7 106.2 4500 4500 3.8 7316 BEGBY Ferens
80 170 39 128.7 106.2 4500 5670 3.8 7316 BECBM Ferens
80 170 39 128.7 106.2 4500 5670 3.8 7316 BECCM Ferens
80 170 39 128.7 106.2 4500 5670 3.8 7316 BEGAM Ferens
80 200 48 160.2 137.7 3600 3870 8.1 7416 GAM Ferens
80 200 48 160.2 137.7 3600 3870 8.1 7416 M Ferens
80 200 48 160.2 137.7 3870 3870 8.1 7416 CBM Ferens
85 150 28 86.04 74.7 4770 4500 1.85 7217 BEGAF Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
85 150 28 86.04 74.7 4770 4500 1.85 7217 BEGAP Ferens
85 150 28 86.04 74.7 4770 4500 1.85 7217 BEP supportantes
85 150 28 91.8 81 4770 4770 1.85 7217 BECBJ Ferens
85 150 28 91.8 81 4770 4770 1.85 7217 BECBP Ferens
85 150 28 91.8 81 4770 4770 1.85 7217 BECBY Ferens
85 150 28 91.8 81 4770 6030 1.85 7217 BECBM Ferens
85 180 41 131.4 109.8 4050 3870 4.61 7317 BECBF ferens
85 180 41 131.4 109.8 4050 3870 4.61 7317 BEGAF Ferens
85 180 41 131.4 109.8 4050 3870 4.61 7317 BEP supportantes
85 180 41 140.4 118.8 4050 4320 4.61 7317 BECBJ Ferens
85 180 41 140.4 118.8 4050 4320 4.61 7317 BECBP Ferens
85 180 41 140.4 118.8 4050 4320 4.61 7317 BECBY Ferens
85 180 41 140.4 118.8 4050 4320 4.61 7317 BEGAP Ferens
85 180 41 140.4 118.8 4050 4320 4.61 7317 BEGAPH Ferens
85 180 41 140.4 118.8 4050 5400 4.61 7317 BECBM Ferens
85 180 41 140.4 118.8 4050 5400 4.61 7317 BECCM Ferens
85 180 41 140.4 118.8 4050 5400 4.61 7317 BEGAM ferens
85 210 52 171 149.4 3600 3600 9.6 7417 BACBMC Ferens
85 210 52 171 149.4 3600 3600 9.6 7417 BAGAMC Ferens
88.9 165.1 28.575 114.3 100.8 4770 4500 2.89 ALS 28 ABP Ferens
90 160 30 97.2 86.85 4500 4050 2.3 7218 BEGAF Ferens
90 160 30 97.2 86.85 4500 4050 2.3 7218 BEP supportantes
90 160 30 97.2 86.85 4500 5670 2.3 7218 BEGAM Ferens
90 160 30 104.4 93.6 4500 4500 2.3 7218 BECBJ Ferens
90 160 30 104.4 93.6 4500 4500 2.3 7218 BECBP Ferens
90 160 30 104.4 93.6 4500 4500 2.3 7218 BECBY Ferens
90 160 30 104.4 93.6 4500 4500 2.3 7218 BECCM Ferens
90 160 30 104.4 93.6 4500 4500 2.3 7218 BEGAP Ferens
90 160 30 104.4 93.6 4500 4500 2.3 7218 BEGAY Ferens
90 160 30 104.4 93.6 4500 5670 2.3 7218 BECBM Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
90 190 43 140.4 120.6 3870 3600 5.2 7318 BEP supportantes
90 190 43 149.4 131.4 3870 4050 5.2 7318 BECBJ Ferens
90 190 43 149.4 131.4 3870 4050 5.2 7318 BECBP Ferens
90 190 43 149.4 131.4 3870 4050 5.2 7318 BECBY Ferens
90 190 43 149.4 131.4 3870 4050 5.2 7318 BEGAP Ferens
90 190 43 149.4 131.4 3870 4050 5.2 7318 BEGAPH Ferens
90 190 43 149.4 131.4 3870 4050 5.2 7318 BEGAY Ferens
90 190 43 149.4 131.4 3870 5040 5.2 7318 BECBM Ferens
90 190 43 149.4 131.4 3870 5040 5.2 7318 BEGAM Ferens
90 225 54 190.8 173.7 3240 3420 11.5 7418 GAM Ferens
90 225 54 190.8 173.7 3420 3420 11.5 7418 CBM Ferens
95 170 32 111.6 97.2 4050 3870 2.7 7219 BEP supportantes
95 170 32 116.1 106.2 4050 4320 2.7 7219 BECBP Ferens
95 170 32 116.1 106.2 4050 4320 2.7 7219 BECBY Ferens
95 170 32 116.1 106.2 4050 4320 2.7 7219 BEGAPH Ferens
95 170 32 116.1 106.2 4050 5400 2.7 7219 BECBM Ferens
95 170 32 116.1 106.2 4050 5400 2.7 7219 BEGAM Ferens
95 200 45 151.2 135 3600 3420 6.05 7319 BEGAF Ferens
95 200 45 151.2 135 3600 3420 6.05 7319 BEP supportantes
95 200 45 151.2 135 3600 3600 6.05 7319 BEM Ferens
95 200 45 162 146.7 3600 3870 6.05 7319 BECBP supportantes
95 200 45 162 146.7 3600 3870 6.05 7319 BECBY Ferens
95 200 45 162 146.7 3600 3870 6.05 7319 BEGAP Ferens
95 200 45 162 146.7 3600 3870 6.05 7319 BEGAY Ferens
95 200 45 162 146.7 3600 3870 6.05 7319 BEGBY Ferens
95 200 45 162 146.7 3600 4770 6.05 7319 BECBM Ferens
95 200 45 162 146.7 3600 4770 6.05 7319 BEGAM Ferens
95 250 55 217.8 212.4 3060 3060 13.5 7419 CBM Ferens
95 250 55 217.8 212.4 3060 3060 13.5 7419 GAM Ferens
95 250 55 217.8 212.4 3060 3060 13.5 7419 M Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
100 180 34 121.5 109.8 4050 3600 3.3 7220 BEP supportantes
100 180 34 128.7 120.6 3870 5040 3.5 7220 BECBM Ferens
100 180 34 128.7 120.6 3870 5040 3.5 7220 BECCM Ferens
100 180 34 128.7 120.6 3870 5040 3.5 7220 BEGAM Ferens
100 180 34 128.7 120.6 4050 4050 3.5 7220 BECBP Ferens
100 180 34 128.7 120.6 4050 4050 3.5 7220 BECBY Ferens
100 180 34 128.7 120.6 4050 4050 3.5 7220 BEGAY Ferens
100 215 47 182.7 171 3420 3240 7.5 7320 BEGAF Ferens
100 215 47 182.7 171 3420 3240 7.5 7320 BEM Ferens
100 215 47 182.7 171 3420 3240 7.5 7320 BEP supportantes
100 215 47 194.4 187.2 3420 3600 7.5 7320 BECBP Ferens
100 215 47 194.4 187.2 3420 3600 7.5 7320 BECBY Ferens
100 215 47 194.4 187.2 3420 3600 7.5 7320 BEGAP Ferens
100 215 47 194.4 187.2 3420 3600 7.5 7320 BEGBY Ferens
100 215 47 194.4 187.2 3420 4500 7.5 7320 BECBM Ferens
100 215 47 194.4 187.2 3420 4500 7.5 7320 BECCM Ferens
100 215 47 194.4 187.2 3420 4500 7.5 7320 BEGAM Ferens
100 265 60 238.5 243 2880 2880 15.5 7420 CBM Ferens
101.6 184.15 31.75 143.1 128.7 4050 4050 3.15 ALS 32 ABP Ferens
105 190 36 133.2 123.3 3600 3420 3.95 7221 BEP supportantes
105 190 36 140.4 135 3600 3870 3.95 7221 BECBP Ferens
105 190 36 140.4 135 3600 4770 3.95 7221 BECBM Ferens
105 225 49 182.7 173.7 3240 3060 8.55 7321 BEP supportantes
105 225 49 194.4 187.2 3240 3420 8.55 7321 BECBP Ferens
105 225 49 194.4 187.2 3240 4320 8.55 7321 BECBM Ferens
105 225 49 194.4 187.2 3240 4320 8.55 7321 BEGAM Ferens
110 200 38 137.7 128.7 3600 3240 4.6 7222 BEGAF Ferens
110 200 38 137.7 128.7 3600 3240 4.6 7222 BEP supportantes
110 200 38 146.7 140.4 3600 3600 4.6 7222 BECBP Ferens
110 200 38 146.7 140.4 3600 3600 4.6 7222 BECBY Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
110 200 38 146.7 140.4 3600 4500 4.6 7222 BECBM Ferens
110 200 38 146.7 140.4 3600 4500 4.6 7222 BECCM Ferens
110 240 50 202.5 201.6 3060 2880 10 7322 BEP supportantes
110 240 50 202.5 201.6 3060 3060 10 7322 BEM Bear
110 240 50 216 220.5 3060 3240 10 7322 BECBP Ferens
110 240 50 216 220.5 3060 3240 10 7322 BECBY Ferens
110 240 50 216 220.5 3060 4050 10 7322 BECBM Ferens
110 240 50 216 220.5 3060 4050 10 7322 BECCM Ferens
110 240 50 216 220.5 3060 4050 10 7322 BEGAM Ferens
110 240 50 216 220.5 3060 4050 10 7322 BEGBM Ferens
120 180 28 78.39 83.7 3600 3600 2.4 7024 BGM Ferens
120 215 40 148.5 146.7 3240 3600 5.89 7224 BCBM Ferens
120 215 40 148.5 146.7 3240 3600 5.89 7224 BGAM Ferens
120 215 40 148.5 146.7 3240 3600 5.89 7224 BM Ferens
120 260 55 214.2 225 2700 3240 14.5 7324 BCBM Ferens
120 260 55 214.2 225 2700 3240 14.5 7324 BGAM Ferens
120 260 55 214.2 225 2700 3240 14.5 7324 BGBM Ferens
127 228.6 34.925 167.4 171 3240 3240 6.1 ALS 40 ABM Ferens
130 230 40 167.4 173.7 3060 3060 6.95 7226 BGAF
130 230 40 167.4 173.7 3060 3420 6.95 7226 BCBM Ferens
130 230 40 167.4 173.7 3060 3420 6.95 7226 BGAM Ferens
130 230 40 167.4 173.7 3060 3420 6.95 7226 BM Ferens
130 280 58 248.4 274.5 2520 3060 17.1 7326 BCBM Ferens
130 280 58 248.4 274.5 2520 3060 17.1 7326 BGAM Ferens
130 280 58 248.4 274.5 2520 3060 17.1 7326 BM Ferens
140 210 33 102.6 116.1 3060 3060 3.85 7028 BGM Ferens
140 250 42 179.1 190.8 2700 3240 8.85 7228 BCBM Ferens
140 250 42 179.1 190.8 2700 3240 8.85 7228 BGAM Ferens
140 250 42 179.1 190.8 2700 3240 8.85 7228 BM Ferens
140 300 62 271.8 310.5 2340 2700 21.5 7328 BCBM Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
140 300 62 271.8 310.5 2340 2700 21.5 7328 BGAM Ferens
150 225 35 119.7 131.4 2880 2880 4.7 7030 BGM Ferens
150 270 45 194.4 216 2520 2880 11.5 7230 BCBM Ferens
150 270 45 194.4 216 2520 2880 11.5 7230 BGAM Ferens
150 320 65 298.8 351 2160 2520 26 7330 BCBM supportantes
150 320 65 298.8 351 2160 2520 26 7330 BGAM Ferens
160 290 48 229.5 270 2520 2700 14 7232 BCBM Ferens
160 290 48 229.5 270 2520 2700 14 7232 BGAM
160 340 68 322.2 396 2160 2340 30.3 7332 BCBM Ferens
170 260 42 154.8 183.6 1800 2520 7.65 7034 BGM Ferens
170 310 52 252.9 310.5 2160 2520 17.5 7234 BCBM Ferens
170 360 72 351 441 1980 2340 36 7334 BCBM Ferens
180 280 46 175.5 216 2340 2340 10 7036 BGM Ferens
180 320 52 261.9 337.5 2160 2340 18 7236 BCAM Ferens
180 320 52 261.9 337.5 2160 2340 18 7236 BCBM Ferens
180 380 75 369 486 1800 2160 42 7336 BCBM Ferens
190 290 46 179.1 229.5 2160 2160 10.5 7038 BGM Ferens
190 340 55 276.3 364.5 1980 2340 22 7238 BCBM Ferens
190 400 78 397.8 540 1800 1980 48.5 7338 BCBM Ferens
200 310 51 202.5 261 1980 1980 18 7040 BGM Ferens
200 360 58 292.5 387 1800 2160 25 7240 BCBM Ferens
200 420 80 415.8 589.5 1710 1980 53 7340 BCBM Ferens
220 340 56 229.5 319.5 1800 1800 18 7044 BGM Ferens
220 400 65 351 504 1620 1980 37 7244 BCBM Ferens
220 460 88 444.6 648 1440 1530 70 7344 BCBM Ferens
240 360 56 234 337.5 1710 1710 19 7048 BGM Ferens
240 440 72 327.6 486 1440 1530 49 7248 BCBM Ferens
240 500 95 503.1 720 1260 1350 89.4 7348 BCBM Ferens
260 400 65 298.8 459 1530 1530 30 7052 BGM Ferens
260 480 80 456.3 702 1260 1350 66 7252 BM Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
280 420 65 304.2 486 1440 1440 30 7056 BGM Ferens
280 500 80 456.3 747 1260 1260 67.5 7256 BM Ferens
300 460 74 339.3 567 1260 1350 42.5 7060 BGM Ferens
300 460 74 380.7 625.5 1350 1440 42.5 7060 AGM Ferens
300 540 85 497.7 837 1170 1170 85 7260 BCBM Ferens
320 440 56 315.9 526.5 1350 1440 25.5 71964 AC Ferens
320 480 74 351 603 1170 1260 44.5 7064 BGM Ferens
320 580 92 514.8 918 1080 1080 110 7264 BCBM Ferens
340 460 56 304.2 526.5 1350 1350 24 71968 ACMB Ferens
340 520 82 404.1 733.5 1080 1170 59.5 7068 BGM Ferens
360 440 38 210.6 382.5 1350 1350 12 71872 ACMB supportantes
360 480 56 271.8 495 1260 1350 28.5 71972 BM Bear
360 480 56 304.2 549 1260 1350 28.5 71972 AMB Bear
360 480 56 315.9 567 1260 1350 28.5 71972 ACMB Ferens
360 540 82 415.8 765 1080 1080 61.8 7072 BGM Ferens
360 540 82 468 855 1170 0 61.8 7072 AGM Ferens
360 540 82 468 855 1170 1170 61.8 7072 AM Ferens
380 480 31 171 319.5 1170 1260 14.4 70876 AMB Bear
380 480 46 261.9 450 1170 1260 18 71876 ACGAMB Ferens
380 520 65 310.5 549 1080 1080 43.5 466953 supportantes
380 520 65 369 661.5 1170 1170 40.5 71976 ACGAMB Ferens
380 560 82 421.2 765 990 1080 65.5 7076 BGM Ferens
380 560 82 421.2 765 990 1080 39 7076 BM Ferens
380 560 82 456.3 855 1080 1170 65.5 7076 AM Ferens
400 540 65 362.7 661.5 1080 1080 39 71980 AM Ferens
400 600 90 474.3 918 900 990 90.5 7080 BM Ferens
400 600 90 544.5 1062 855 1080 89.5 307238 Ferens
400 600 90 544.5 1062 855 1080 90.5 7080 AM Ferens
400 720 103 655.2 1350 810 855 190 7280 BM Ferens
410 560 70 380.7 747 990 990 49.5 468431 supportantes

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
420 560 65 327.6 603 1080 1080 44.5 71984 BM Bear
420 560 65 369 688.5 1080 1080 42 71984 AGAM Ferens
420 560 65 369 688.5 1080 42 71984 AM Ferens
420 620 90 486 954 900 900 88 7084 BGM Ferens
420 620 90 544.5 1062 990 990 88 7084 AM Ferens
440 600 74 456.3 936 990 61 71988 ACMB supportantes
440 650 94 514.8 1062 855 855 100 7088 BM Ferens
440 650 94 585 1188 900 100 7088 AM Ferens
460 580 37 238.5 504 990 990 24.5 70892 AM Ferens
460 580 56 333.9 688.5 990 990 35 71892 AGMB supportantes
460 620 74 456.3 936 90 990 58 71992 ACM Ferens
460 680 100 556.2 1161 810 810 120 7092 BM Ferens
460 680 100 620.1 1314 855 120 7092 AM Ferens
480 700 100 561.6 1206 765 810 125 7096 BM Ferens
480 700 100 631.8 1377 855 900 125 7096 AM Ferens
500 620 37 248.4 558 900 900 26 708/500
500 620 56 351 765 900 900 38 718/500 AGMB Ferens
500 620 56 351 765 900 900 38 718/500 AMB
500 670 78 497.7 1098 855 900 78 719/500 AGMB Ferens
500 720 100 573.3 1260 720 765 124 70/500 BM Ferens
500 720 100 643.5 1440 810 855 124 70/500 AM Ferens
530 650 56 351 810 855 900 39.5 718/530
530 710 82 556.2 1206 765 810 92 719/530 ACM Ferens
530 780 112 666.9 1530 675 720 180 70/530 BM Ferens
530 780 112 748.8 1710 720 765 180 70/530 AM Ferens
540 630 45 234 540 765 810 21.5 BA1B 311585 A Bear
560 680 56 357.3 837 765 810 41.5 718/560
560 750 85 532.8 1161 720 765 105 719/560
560 820 115 713.7 1710 630 203 70/560
600 730 42 304.2 661.5 720 765 38.5 708/600 AGMB Ferens

Basic dimensiones Basic onus rating Celeritas ratings Mass Model
dynamic static Reference celeritas Limitandi celeritas Ferens No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
600 730 42 304.2 661.5 720 765 38.5 708/600 AMB Ferens
600 730 60 404.1 990 720 765 52 718/600 AMB Ferens
600 800 90 643.5 1557 675 720 125 719/600 ACM Ferens
600 870 118 795.6 1944 630 675 236 70/600 AGMB Ferens
630 920 128 860.4 2205 504 630 270 70/630
670 820 69 474.3 1125 630 675 77 718/670
670 820 69 497.7 1161 630 675 77 718/670 ACMB Ferens
670 980 136 1053 2790 504 353 70/670
710 870 74 514.8 1404 567 603 93.5 718/710
710 870 74 544.5 1467 567 93.5 718/710 ACMB Ferens
710 950 106 766.8 1980 540 567 195 719/710 ACMB Ferens
710 1030 140 1071 2925 504 394 70/710
750 920 78 556.2 1557 540 567 110 718/750 AGMB supportantes
750 920 78 585 1620 540 567 110 718/750 ACMB Ferens
750 1090 150 1170 3285 477 504 445 70/750
762 889 63.5 404.1 1143 504 540 58 BA1B 311576 Ferens
800 1150 155 1125 3285 405 524 70/800 AMB Bearing
850 1030 82 620.1 1674 450 477 140 718/850
850 1220 165 1242 3735 360 626 70/850
900 1030 63 374.4 1143 405 432 64 BA1B 307788 Bear
900 1280 170 1404 4410 360 387 665 70/900
950 1360 180 1467 4680 342 360 ]805 70/950
1000 1220 100 830.7 2475 360 387 243 718/1000 AMB Bear
1000 1420 185 1467 4860 324 342 890 70/1000 AMB Bear
1060 1500 195 1512 5130 288 306 1050 70/1060
1120 1360 106 954 3375 306 318 718/1120
1120 1580 200 1548 5265 270 288 1150 70/1120 AMB Bear
1180 1660 212 1566 5580 252 252 1350 70/1180 AMB Bear
1250 1500 80 725.4 2430 252 270 295 708/1250 AMB Bearing
1250 1500 112 1026 3510 252 270 390 718/1250 AMB supportantes
1250 1750 218 1791 6885 216 1600 70/1250 AMB supportantes

Producta Commendata

Fabricantes Futurum Motus
De UKL
Condita anno 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) est Sinae 7200 BECBP Angularis Contactus Ball Bearings provisores et OEM/ODM 7200 BECBP Angularis Contactus Ball Bearings societas, societas industrialis et mercatoria integra quae in fabricatione praecisa versatur, coniungens R&D, productionem et venditionem.
Societas speciales solutiones gestuum summae perfunctionis praebet, subsidium technicum pro industriis globalibus cum exigentiis summe altis pro praecisione et fide.

Cum plus quam 200 peritis peritis et basi productionis plene modernizata, facultates UKL totum processum fabricationis tegunt — cudendi, temperandi, tornandi, tractationis caloris, molendi et congregationis automatae.
Utens plus quam 15 annis experientiae exportationis OEM/ODM, UKL cito respondet necessitatibus clientium, offerens flexibilia et accommodata servitia pro clientibus per Europam, Asiam, Africam et Orientem Medium.

Ukl Bearing Manufacturing Co.,Ltd Plus de Nobis Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    anni

    Experientia Industriae

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Diversitas Formarum

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Numerus Conlaboratorum

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Valor Exportationis Annuus

Ukl Bearing Manufacturing Co.,Ltd
Diploma Honoris
News
Contactus angularis Ball Bearings Cognitio Industriae

7308 vs 7306 ferens Electionem Guide: Quam ad elige Contactum Rectum Angularis Ball Ferens pro Applicationem Tuam?

Diligens globulus contactus recti angularis portans criticum gradum obtinet in certo instrumento perficiendi, longam vitam serviendi, et accurationem stabilem operandi. Inter notissimas notas solitas in uno actu angulari contactu 7308 afferentem et 7306 gerentes late applicantur per apparatum industrialem, instrumenta machinae, motores electrica, soleatus et systemata productionis automated. Tametsi utraque ad eandem pertinent seriem gerens et similes notas structurales communicat, earum dimensiones, onera portandi facultates, notas operandi et applicationes opportunas insigniter differunt. Has differentias intelligentes permittit fabrum et professionales acquisitiones ut decisiones informatas in condicionibus actualibus operationibus faciendis informent potius quam eligendo solum cum magnitudine sustinendo.

Contactus pilae angularis gestus specialiter designati sunt ut onera radialia et axialia simul coniuncta sustineant. Eorum angulus contactus dat facultatem axialem altiorem facultatem oneris comparatae cum gestus pilae profundae sulci, servato optimae gyrationis accuratione et rigiditate.

Intellectus Core Varietas Inter (VII)CCCVI supportantes et (VII)CCCVIII supportantes

Etsi autem 7306 afferens et 7308 eiusdem rationis principium communicantes, augmentum ad magnitudinem afferens directe influxus capacitatis, rigoris, ponderis et institutionis requisita. Machinarii has res simul aestimare debent pro solas dimensiones considerare.

Comparatio Item 7306 supportantes 7308 supportantes
Typical Bore Location Minora Maius
Extra Diameter Magis Foedus Maius Housing Required
Quantitas onus Moderatus Combinatae quaevis Lond Altior Combinatae quaevis Load
Celeritas Capability Melius High-Mobilitate Applications Melius gravis Load Applications
Installation Space Limited Spaces Maius Equipment
Typical Equipment Electric Motors, Robotics, Precision Devices Machina Tools, Pumps, Agricultural Machinery

Maiora elementa volubilia et geometriae racemiferae 7308 ferentis fere praebent facultatem altiorem oneris et rigorem structurae emendatae. Econtra 7306 affertio saepe seligitur ubi institutionis compactae, inertiae inferioris, et celeritas gyratoria superiora potiora sunt.

Potius quam interrogare uter melius, utilior quaestio est quae melioribus condicionibus operantibus congruit.

Influentiam Contactus anguli ad ferens Performance

Praeter differentias dimensivales, angulus contactus agit partes aeque magnas in electione ferens. Angularis contactus pilae gestus communes sunt in diversis configurationibus anguli contactus, incluso 15°, 25° et 40°, singulae optimized pro diversis requisitis operantibus.

Partes cum minoribus contactibus angulis plerumque meliora faciunt in celeritatibus gyratoriis superioribus, quia vim axialis inferiorem in operatione generant. Maiores contactus anguli meliores oneris axialis gerendi facultatem et augendi altiore tolerantia rigiditatem efficiunt, ut magis apta sint ad gravia officia instrumentis substantialibus axialis viribus subiecta.

Cum exempla comparet ut 7306 BEP vs 7306 BECBP afferens, prima distinctio in cavea designationis et configurationis internae potius quam in fundamentalibus dimensionibus consistit. Diversae materias cavea et moderatio methodi lubricationis effectus influunt, notae vibrationis, et stabilitas operans sub variis condicionibus velocitatis. Hae differentiae consilio intelligentes adiuvat fabrum aptam conformationem ad continuam operae industriae seligendam.

Diligens angulus proprius contactus semper fundari debet in celeritate hastili, directione axiali oneris, requisitis preload, et instrumentorum accuratione potius quam unius figurae vexillum sequentes.

Applicationem, Ordinata Electio

Quaelibet industrialis applicatio postulata operans diversas in gestus imponit. Adaequatio effectio ambitus actui operandi efficacior est quam eligens innixus solum in actis specificationibus catalogue.

Partes 7306 communiter adhibetur ubi celeritas rotativa et accuratio positionis prioritates sunt. Applicatae typicae includunt electrica motores, automationis instrumenta, robotica, machinamenta textilia et systemata transmissionis pacta. In multis casibus, 7306 portans in applicationibus motoriis electricis optimam proportionem praebet inter efficientiam, stabilitatem et vitam serviendi.

Subtilitas afferens 7306 roboticiorum late etiam eligitur quod compages roboticae motus lenis, vibrationem minimam requirunt, et accurate positiones constantes sub oneribus continue mutatis.

7308 Illa e contra, aptior est applicationibus ad altiorem rigiditatem requirendam et ad augendam facultatem onus. Solatus gravis officium, minutores, armamenta industrialia, instrumenta agriculturae, et centra machinis saepe utuntur ad maiores gestus ad maiora coniunctorum onera accommodanda.

Ad altum exquisitum machinis instrumentum, 7308 portatio ad instrumentum machinae fusum saepe delectum est quod eius rigor superior ad meliorationem accurationem et fusum stabilitatem augendam confert. Similiter celeritas alta globulus contactus angularis portans 7308 efficaciter praestare potest cum decenter lubrica et apta preload inaugurata est.

Comparet euismod Characteres

Eligentes inter duos gestus plures simul factores operationales aestimare debet.

Electio Factor 7306 supportantes 7308 supportantes
Summus Volo Rotatione Praeclarus bonum
Axial Lond resistentia bonum Praeclarus
Radialis Lond capacitatem Moderatus Superius
Rigiditas structuralis bonum Superius
Subtilitas Positioning Praeclarus Praeclarus
Gravis Industrial Equipment Idoneus Valde idoneus

Nemo unus fru- mentum optimum sub omni conditione praestat. Apparatus ad celeritates rotationales altissimas operans saepe prodest a parvis magnitudinum ferendis, cum gravis machinae industrialis plerumque augere facultatem ac rigiditatem postulat.

Practical supportantes Electio Considerationes

Electio ferens incipere debet aestimare condiciones operativas actuales potius quam solam specificationum catalogum comparare.

Primum, constitue spatium institutionis available. Maiores gestus non possunt simpliciter minora exempla reponere sine comprobatione spiculorum dimensionum, tolerantiarum habitationum, et alvi conventus.

Secundo, aestimationes tam radiales quam axiales onera. Partes operantes sub vi axiali significantes opportunam electionem anguli contactus requirent praeter capacitatem adaequatam onus.

Tertio considera celeritatem operantem. Superiores celeritatum rotationum caloris additicium generant et effectus maiorem lubricationem postulant. Partes electae ultra suas celeritatem commendatae limites experiantur, praematuram gerunt.

Quarto, ratio aestimandi rigiditatem requisita. Apparatus sicut machinarum centra et systemata subtilitas positionis adiuvat saepe ex altioribus rigoribus ad extenuandum stipitem deflexionis.

Denique necessaria sustentationem considera in toto apparatu vitae currendi. Propria lubricatio, contagione moderatio, preload commensuratio, ac accuratio institutionis significantius influentiam afferens longitudinis neglegens tolerandi magnitudinem.

Exempli gratia, propria 7306 adiuvantia preload tionibus afferentibus alvi nimiam internam eliminare, impediendo exustionem nimiam preload. Item, intelligere quomodo institutionem 7308 angularis contactus recte ferens - includens intentionem inclusam, preload imperium, et noctis sagittam - essentialis est ad vitam obtinendam designatae servitutis.

Communia Electio Erroribus supportantes

Plures communes fallaciae saepe praemature ad defectum vel ad apparatum effectum deducendi inducunt.

Communis error putatur maiorem afferentem sponte melius praestare. Dum 7308 gerens facultatem praebet superiori oneris, oversizing superfluum potest attritionem, temperaturam operantem, consummationem industriae augere.

Alius error solum in 7308 tendit dimensiones sine consideratione spiculi rigoris, lubricationis condiciones vel dispositionem afferentem. Dimensiones solae applicationem idoneitatem determinare non possunt.

Quidam etiam fabrum preload occasus praetermittunt. Improprium preload vibrationem augere potest, accurationem gyrationis minuere, et lassitudinem curriculi accelerare.

Ignorans lubricationis qualitas est alius exitus frequens. Etiam gestus premium intempestive deficere possunt si lubricationis intervalla, uncto delectu, vel contagione temperantia negliguntur.

Communis defectus intellectus modi 7308 afferendi, incluso lassitudines, lubricationes famis, contagione vestium, aestuantium, et institutionis detrimentum, adiuvat personas sustentandas difficultates potentiales cognoscendi antequam gravis armorum defectus fiat.

Subtilitas Vestibulum subsidia PRAEIUDICATUS ferens euismod

Certus effectus non solum in propria electione sed etiam in fabricandis qualitate et processu constantiae dependet.

UKL Ferens Co., Ltd. (Wuxi) industrialis et mercaturae integrae inceptis specialiter est ad certa opera facienda, coniungendo inquisitionem et progressionem, productionem, venditionesque globales. Sicut professionalis officinas portans et in Sinis comitatum faciens fabricandis, UKL spectat ut summus perficientur solutiones pro industriis exigat eximiam praecisionem et diuturnum firmitatem.

Cum plus quam 200 periti professionales et basis plene modernizata fabricandi, UKL processum productionis integram administrat, incluso cudendo, furno, conversione, curatione caloris, stridore et conventu automated. Haec comprehensiva fabricandi facultas sustinet qualitatem productam consistentem, dum exigentias applicationum industrialium recentiorum occurrens.

Utrum clientes aestimant 7308 commeatus ferre vel 7306 praebitores ferre, eligentes fabricam cum facultatibus productionis comprehensivis, districta qualitatis potestate, et technicis subsidia signanter emendare possunt fidem et diuturnum operandi effectum.

FAQ

1. Quid interest primaria inter afferentem et 7308 ferentem?

Differentiae principales habent dimensiones, onera capacitatem, rigorem, et institutionem spatii. Quod fere 7308 sustinet onera superiora sustinet, dum portatio 7306 aptior est ad applicationes compactas et ad celeritatem altae.

2. Estne ferre semper melior quam 7306 parere?

N. Electio conveniens in conditionibus operandis pendet, incluso spatio, scapo magnitudine, velocitate gyratorio, axiali onere et exactione requiritur.

3. Num 7306 portatio in motoribus electricis adhiberi potest?

Ita. A 7306 in applicationibus motoriis electricis communiter adhibitum est quod optimam gyrationalem accurationem, stabilem operationem, ac effectum efficientem sub modicis oneribus coniunctis praebet.

4. Quales factores considerari debent quando substituens 7308 afferens?

Substitutio considerare debet 7308 crucem ferre referentiam, hastile et habitationem dimensiones, onera exigentias, angulum contactum, modum lubricationis, occasus preload, et celeritatem operandi ut convenientiam curet.

5. Quomodo vita servitutis extenditur?

Propriam institutionem, accuratam preload commensurationem, aptam lubricationem, contaminationem praeventionis, inspectionis regularis, et exemplum rectam afferentem ad conditiones operativas eligendas, modi sunt efficacissimae ad vitam serviendi augendam..
