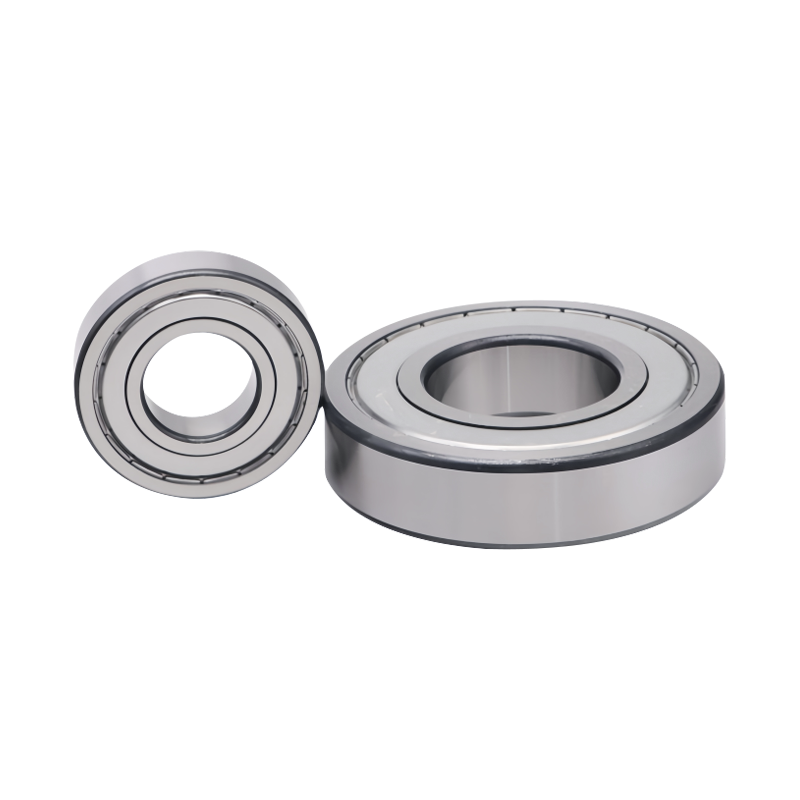

3200 A-2ZTN9/MT33 Duplex Row Angularis Contact Ball Bearings

Name: 3200 A-2ZTN9/MT33 Duplex Row Angularis Contact Ball Bearings
Rating: 5 (99 reviews)

Duplex Row Angularis Contactus Ball Bearings (DRACBB) Consilium Contactus Duplex Row Angularis Ball Ferens (DRACBB) fundamentaliter idem est ac duo globulus unius ordinis angularis contactus gestus, sed signanter spatium axiale minus occupat. DRACBB accommodare possunt onera radialia et onera axialia utrinque operantia. Capax est obsessionem spiculi vel habitationi bidirectionalem axialis restringere. Cum angulo 30° typico contactu praebet, ordinationem valde rigidam praebet et momenta eversionis sustinere potest..

Nobis Contactus

PRIOR:Nullum productum prius SEQUENS:7200 BECBP Angularis Contactus Ball Bearings

Descriptio
Specificationes
Nobis Contactus

supportantes Characteres
· Foedus Axial Space: Minime spatium axiale requirit.
·Space-Solutio salutaris: Apta applicationibus ubi spatium axiale arctatur, saepe duo unius ordinis globulus contactus angularis reposuit gestus in ordine postico inclusos.
· Load Combination Capacity: Onera radialia et axialis onera in utramque partem accommodat.
· Momentum Lond Capacitas: Perversa momenta sustinere possunt.
· Rigidum dispositio: Princeps systematis rigorem praebet.

Clavis Commoda
· Rigiditas et Load Capacity: Rigiditatem altiorem significanter praebet comparatam cum unico ordine globulus contactus angularis gerens setup.
· Triplex Lond Facultas: Capax simul accommodans onera radialia, onera axialis bidirectionalia et momenta evertendi.
· Specimen pro High rigoris: Aptissima applicationes altae rigiditatis postulantes.

Agros Application (Applications)
· Late in autocinetis axibus ante rotam adhibitis.
· Oleum soleatus, Radices cornicines, compressores aeris.
·Varia genera transmissionum/gearboxes.
· Machina instrumentum fusi.

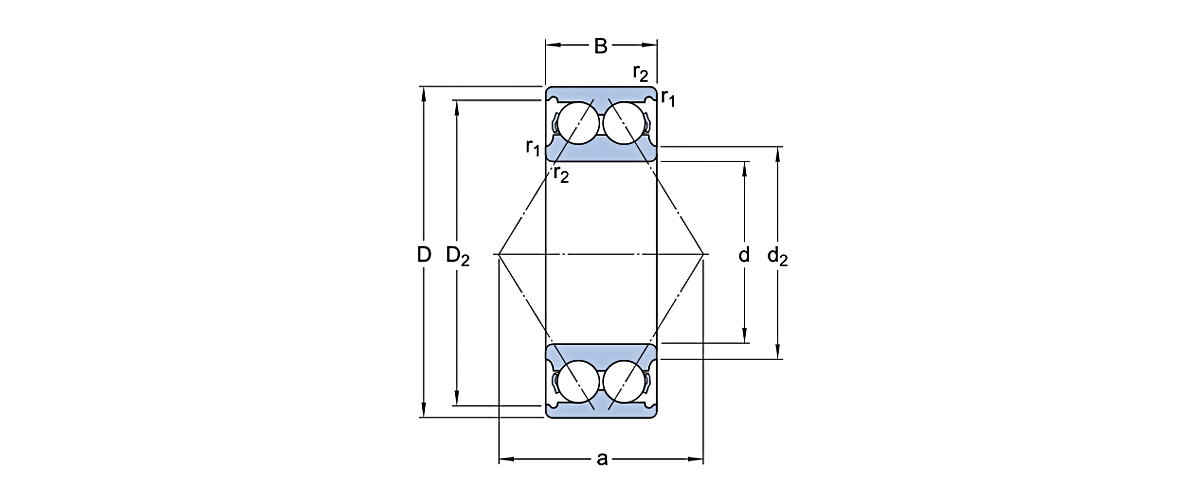

Basic dimensiones			Basic onus rating		Celeritas ratings		Mass	Exemplar
Basic dimensiones			dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
10	30	14	6.849	3.87	23400	21600	0.051	3200 A-2ZTN9/MT33 Bear
10	30	14	6.849	3.87	23400	21600	0.051	3200 ATN9 Ferens
10	30	14	6.849	3.87		15300	0.051	3200 A-2RS1TN9/MT33 Ferens
12	32	15.9	9.09	5.04	21600	19800	0.058	3201 A-2ZTN9/MT33 Ferens
12	32	15.9	9.09	5.04	21600	19800	0.058	3201 ATN9 Ferens
12	32	15.9	9.09	5.04		13500	0.058	3201 A-2RS1TN9/MT33 Ferens
15	35	15.9	10.08	6.12	19800	16200	0.066	3202 A-2ZTN9/MT33 Ferens
15	35	15.9	10.08	6.12	19800	16200	0.066	3202 ATN9 Ferens
15	35	15.9	10.08	6.12		12600	0.066	3202 A-2RS1TN9/MT33 Ferens
15	42	19	13.59	8.37	16200	14400	0.13	3302 A-2Z Ferens
15	42	19	13.59	8.37	16200	14400	0.13	3302 A-2ZTN9/MT33 Bear
15	42	19	13.59	8.37	16200	14400	0.13	3302 ATN9 Ferens
15	42	19	13.59	8.37		10800	0.13	3302 A-2RS1 Ferens
15	42	19	13.59	8.37		10800	0.13	3302 A-2RS1TN9/MT33 Ferens
17	40	17.5	12.87	7.92	17100	14400	0.096	3203 A-2ZTN9/MT33 Ferens
17	40	17.5	12.87	7.92	17100	14400	0.096	3203 ATN9 Ferens
17	40	17.5	12.87	7.92		10800	0.096	3203 A-2RS1TN9/MT33 Ferens
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 A-2Z Ferens
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 A-2ZTN9/MT33 Bear
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 ATN9 Ferens
17	47	22.2	19.44	11.43		9900	0.18	3303 A-2RS1 Ferens
17	47	22.2	19.44	11.43		9900	0.18	3303 A-2RS1TN9/MT33 Ferens
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A Bearing
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A-2Z Ferens
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A-2ZTN9/MT33 Ferens
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 ATN9 Ferens
20	47	20.6	18.36	11.61		9000	0.16	3204 A-2RS1 Ferens
20	47	20.6	18.36	11.61		9000	0.16	3204 A-2RS1TN9/MT33 Ferens
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A Bear
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A-2Z Ferens

Basic dimensiones			Basic onus rating		Celeritas ratings		Mass	Exemplar
Basic dimensiones			dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A-2ZTN9/MT33 Bear
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 ATN9 Ferens
20	52	22.2	22.05	14.04		8100	0.22	3304 A-2RS1 Ferens
20	52	22.2	22.05	14.04		8100	0.22	3304 A-2RS1TN9/MT33 Ferens
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A Bear
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A-2Z Ferens
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A-2ZTN9/MT33 Ferens
25	52	20.6	19.8	13.77		7650	0.18	3205 A-2RS1 Ferens
25	52	20.6	19.8	13.77		7650	0.18	3205 A-2RS1TN9/MT33 Ferens
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A Bear
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A-2Z Ferens
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A-2ZTN9/MT33 Bear
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 ATN9 Ferens
25	62	25.4	29.25	19.8		6750	0.35	3305 A-2RS1 Ferens
25	62	25.4	29.25	19.8		6750	0.35	3305 A-2RS1TN9/MT33 Ferens
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A Ferens
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A-2Z Ferens
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A-2ZTN9/MT33 Ferens
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 ATN9 Ferens
30	62	23.8	27.45	19.8		6750	0.29	3206 A-2RS1 Ferens
30	62	23.8	27.45	19.8		6750	0.29	3206 A-2RS1TN9/MT33 Ferens
30	72	30.2	38.25	27	9000	8100	0.52	3306 A Ferens
30	72	30.2	38.25	27	9000	8100	0.52	3306 A-2Z Ferens
30	72	30.2	38.25	27	9000	8100	0.52	3306 A-2ZTN9/MT33 Ferens
30	72	30.2	38.25	27	9000	8100	0.52	3306 ATN9 Ferens
30	72	30.2	38.25	27		5670	0.52	3306 A-2RS1 Ferens
30	72	30.2	38.25	27		5670	0.52	3306 A-2RS1TN9/MT33 Ferens
35	72	27	36.45	27	8100	8100	0.44	3207 A Bear
35	72	27	36.45	27	8100	8100	0.44	3207 A-2Z Ferens
35	72	27	36.45	27	8100	8100	0.44	3207 A-2ZTN9/MT33 Ferens

Basic dimensiones			Basic onus rating		Celeritas ratings		Mass	Exemplar
Basic dimensiones			dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
35	72	27	36.45	27	8100	8100	0.44	3207 ATN9 Ferens
35	72	27	36.45	27		5670	0.44	3207 A-2RS1 Ferens
35	72	27	36.45	27		5670	0.44	3207 A-2RS1TN9/MT33 Ferens
35	80	34.9	47.43	37.35	8100	7200	0.74	3307 DJ1 Ferens
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A Bearing
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A-2Z Ferens
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A-2ZTN9/MT33 Ferens
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 ATN9 Ferens
35	80	34.9	48.6	34.2		5400	0.74	3307 A-2RS1 Ferens
35	80	34.9	48.6	34.2		5400	0.74	3307 A-2RS1TN9/MT33 Ferens
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A Bearing
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A-2Z Ferens
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A-2ZTN9/MT33 Ferens
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 ATN9 Ferens
40	80	30.2	43.2	32.85		5040	0.57	3208 A-2RS1 Ferens
40	80	30.2	43.2	32.85		5040	0.57	3208 A-2RS1TN9/MT33 Ferens
40	90	36.5	44.46	37.35	7200	6300	0.93	3308 DNRCBM Ferens
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A Bear
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A-2Z Ferens
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A-2ZTN9/MT33 Bear
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 ATN9 Ferens
40	90	36.5	58.95	43.2		4500	0.93	3308 A-2RS1 Ferens
40	90	36.5	58.95	43.2		4500	0.93	3308 A-2RS1TN9/MT33 Ferens
40	90	36.5	62.01	51.3	7200	6300	0.93	3308 DMA Bear
40	90	36.5	62.01	51.3	7200	6300	0.93	3308 DTN9 Ferens
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A Bear
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A-2Z Ferens
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A-2ZTN9/MT33 Ferens
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 ATN9 Ferens
45	85	30.2	46.8	37.35		4770	0.63	3209 A-2RS1 Ferens

Basic dimensiones			Basic onus rating		Celeritas ratings		Mass	Exemplar
Basic dimensiones			dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
45	85	30.2	46.8	37.35		4770	0.63	3209 A-2RS1TN9/MT33 Ferens
45	100	39.7	55.62	46.8	6750	5670	1.25	3309 DNRCBM Ferens
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 A Bear
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 A-2Z Ferens
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 ATN9 Ferens
45	100	39.7	67.5	47.7		4320	1.25	3309 A-2RS1 Ferens
45	100	39.7	71.37	62.55	6750	5670	1.25	3309 DMA supportantes
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A Bearing
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A-2Z Bear
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A-2ZTN9/MT33 Ferens
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 ATN9 Ferens
50	90	30.2	45.9	38.25		4320	0.65	3210 A-2RS1 Ferens
50	90	30.2	45.9	38.25		4320	0.65	3210 A-2RS1TN9/MT33 Ferens
50	110	44.4	73.71	62.55	6030	5040	1.95	3310 DNRCBM Ferens
50	110	44.4	84.24	76.5	6030	5040	1.95	3310 DMA Bear
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 A Bear
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 A-2Z Ferens
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 ATN9 Ferens
50	110	44.4	85.5	62.55		3870	1.95	3310 A-2RS1 Ferens
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 A Bearing
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 A-2Z Ferens
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 ATN9 Ferens
55	100	33.3	54.9	46.8		4050	0.91	3211 A-2RS1 Ferens
55	120	49.2	86.04	74.7	5400	4770	2.65	3311 DNRCBM Ferens
55	120	49.2	99.9	90	5400	4500	2.65	3311 DMA Ferens
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 A Ferens
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 A-2Z Ferens
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 ATN9 Ferens
55	120	49.2	100.8	73.35		3420	2.65	3311 A-2RS1 Ferens
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 A Bearing

Basic dimensiones			Basic onus rating		Celeritas ratings		Mass	Exemplar
Basic dimensiones			dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 A-2Z Bear
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 ATN9 Ferens
60	110	36.5	67.5	57.6		3600	1.2	3212 A-2RS1 Ferens
60	110	36.5	67.5	57.6		3600	1.2	3212 A-2RS1TN9/MT33 Ferens
60	130	54	114.3	85.5	5040	4500	2.8	3312 A Ferens
60	130	54	114.3	85.5	5040	4500	2.8	3312 A-2Z Ferens
65	120	38.1	72.54	66.15	5040	4320	1.75	3213 A Bear
65	120	38.1	72.54	66.15	5040	4320	1.75	3213 A-2Z Ferens
65	120	38.1	72.54	66.15		3240	1.75	3213 A-2RS1 Ferens
65	140	58.7	124.2	109.8	4770	4050	4.1	3313 DNRCBM Ferens
65	140	58.7	131.4	99	4770	4050	4.1	3313 A Ferens
65	140	58.7	131.4	99	4770	4050	4.1	3313 A-2Z Ferens
70	125	39.7	79.56	72	5040	4050	1.9	3214 A Bearing
70	125	39.7	79.56	72	5040	4050	1.9	3214 A-2Z Bear
70	150	63.5	146.7	112.5	4500	3870	5.05	3314 A Ferens
70	150	63.5	146.7	112.5	4500	3870	5.05	3314 A-2Z Ferens
75	130	41.3	86.04	79.2	4770	4050	2.1	3215 A Ferens
75	130	41.3	86.04	79.2	4770	4050	2.1	3215 A-2Z Bear
75	160	68.3	158.4	126	4050	3600	5.6	3315 A Ferens
75	160	68.3	158.4	126	4050	3600	5.6	3315 A-2Z Ferens
80	140	44.4	95.4	85.5	4500	3870	2.65	3216 A Bear
80	170	68.3	173.7	140.4	3870	3420	6.8	3316 A Ferens
85	150	49.2	111.6	99	4050	3420	3.4	3217 A Bear
85	180	73	187.2	158.4	3600	3240	8.3	3317 A Ferens
90	160	52.4	117	108	3870	3240	4.15	3218 A Bearing
90	190	73	187.2	162	3420	3060	9.25	3318 A Ferens
95	170	55.6	143.1	131.4	3600	3060	5	3219 A Ferens
95	200	77.8	216	194.4	3240	2880	11	3319 A Ferens
100	180	60.3	160.2	149.4	3420	2880	6.1	3220 A Bearing
100	215	82.6	229.5	229.5	3060	2520	13.5	3320 A Ferens

Basic dimensiones			Basic onus rating		Celeritas ratings		Mass	Exemplar
Basic dimensiones			dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
110	200	69.8	190.8	190.8	3060	2520	8.8	3222 A Bear
110	240	92.1	261.9	274.5	2700	2340	19	3322 A Ferens
120	190	66	163.8	208.8	3060	3240	7.08	305256 D Bear
150	225	73	163.8	238.5	1530	1800	5.52	305286 D Bear
150	230	70	182.7	256.5	2520	2700	10.6	305283 D Bear
150	230	70	182.7	256.5	2520	2700	10.6	305283 DA Ferens
160	215	56	121.5	198	2520	2700	5.67	305608 Ferens
160	215	56	121.5	198	2520	2700	5.45	305608 B
160	240	76	210.6	301.5	2340	2520	11.4	305183 supportantes
170	260	84	252.9	364.5	2160	2340	16.8	305180 supportatio
180	250	70	171	256.5	2160	2340	9.67	305288 DA Ferens
180	259.5	66	202.5	279	2160	2340	11	305262 D Bear
190	269.5	66	243	373.5	1980	2160	11	305338 D supporting
200	279.5	76	217.8	342	1710	2160	13.7	305428 D Bear
200	280	80	217.8	342	1980	2160	15.9	305393 supportantes
200	289.5	76	271.8	427.5	1620	1980	16.4	305263 D Bear
200	289.5	76	271.8	427.5	1620	1980	16.4	DA Ferens
220	309.5	76	280.8	468	1800	1800	17.7	305272 D Bear
220	309.5	76	280.8	468	1800	1800	17.7	DA Ferens
220	309.5	76	280.8	468	1800	1800	17.7	305272 DB Bear
230	329.5	80	315.9	540	1710	1800	21.9	305264 D Bear
260	369.5	92	357.3	639	1530	1530	30	305270 D Bear
280	389.5	92	362.7	675	1440	1440	33.2	305269 D ferens

Fabricantes Futurum Motus

De UKL

Condita anno 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) est Sinae 3200 A-2ZTN9/MT33 Duplex Row Angularis Contact Ball Bearings provisores et OEM/ODM 3200 A-2ZTN9/MT33 Duplex Row Angularis Contact Ball Bearings societas, societas industrialis et mercatoria integra quae in fabricatione praecisa versatur, coniungens R&D, productionem et venditionem.
Societas speciales solutiones gestuum summae perfunctionis praebet, subsidium technicum pro industriis globalibus cum exigentiis summe altis pro praecisione et fide.

Cum plus quam 200 peritis peritis et basi productionis plene modernizata, facultates UKL totum processum fabricationis tegunt — cudendi, temperandi, tornandi, tractationis caloris, molendi et congregationis automatae.
Utens plus quam 15 annis experientiae exportationis OEM/ODM, UKL cito respondet necessitatibus clientium, offerens flexibilia et accommodata servitia pro clientibus per Europam, Asiam, Africam et Orientem Medium.

Plus de Nobis Ukl Bearing Manufacturing Co.,Ltd

0+

anni

Experientia Industriae
0+

Diversitas Formarum
0+

Numerus Conlaboratorum
0

$

Valor Exportationis Annuus

Diploma Honoris

News

Quomodo eligere ZKLDF100 Partes pro High-Speed Gyratorius Tabulae: Dimensiones, Load Capacity and Mounting Guide
08 Oct, 2026
In regione motus subtilitatis moderatio postulatio gestuum qui simul axiales, radiales et inclinatio momenta tractari possunt, immitis est. The ZKLDF100 gestus classium peculiare repr...

LEGE PLURA
What Makes the XSU080168 Crossed Roller Bearing the Industry Standard for Precision Rotary Applications?
01 Oct, 2026
Intellectus XSU080168 Crossed Rollerus supportantes Cum praecisio, rigiditas et momentum oneris capacitatis appropinquant, XSU080168 emergit sicut pars critica in machinatione rotat...

LEGE PLURA
RB2508 Partes pro robot arma, Enabling praecise motus & Brief Lifespan
24 Sep, 2026
Quid robot compages plus quam vexilliferum Articuli robot sub unica coniunctione coactionum agunt. Leve esse debent, rigidi tamen satis ad resistendum sub onere deflexionis. Cum praecision...

LEGE PLURA
What makes SI5TK Ferens Ideal Maintenance-Free Solution for Miniature Linkages?
17 Sep, 2026
Intelligere SI5TK Subtilitatem Motion Systems ferens Cum fabrum et procurationis artifices pactionem quaerunt, virgae finem auto-lubricationis eliminat, quae necessitatem constantis illine...

LEGE PLURA
