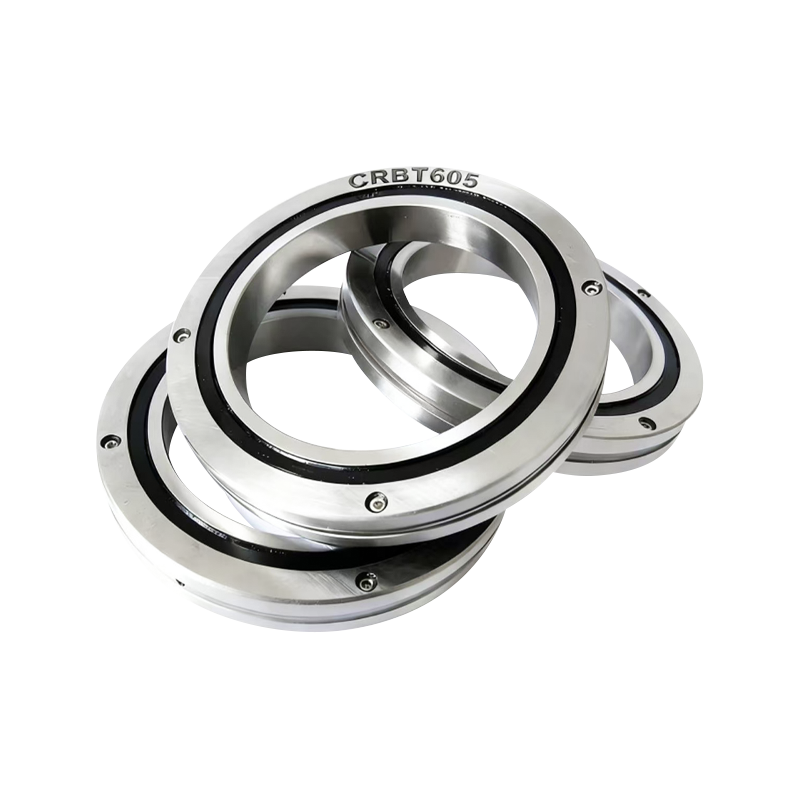

Leve CRBT iuncturam gyratorius cum sectione altitudinis 5.5mm et 5mm latitudinem, est valde compactus et leve ferens. Apta ad parvas arma robotica et parva custodia cameras.
Ferens Feature
Comparatur cum priori tenuissima cruce cylindro gerente (CRBS), sectionis eius altitudo tantum 69% praedecessoris sui. Latitudo etiam tantum 5mm est, et area crucis sectionis tantum 43% priorum productorum est, magnitudine signanter minora obtinens. Pondus autem eius tantum est 0,38 temporibus CRBS, reductionem ponderis substantialem attingens. (Ad ferentem cum diametro interiore 50mm)
commoda
Haec portatio non habet cavernas ascendentes, in structura valde compacta et perquam leve pondus resultans.
Applications
Robots humanoides, tabulae rotariae, instrumentorum subtilitatis machinae, modulorum iuncturarum, aliaeque applicationes quae requirunt excelsum spatium institutionis, pondus, ac praecisionem..
| supportantes Type | Dimensio (mm). | Institutionem Dimensiones | Basic Load rating | Qualitas | Correspondentes exemplar | |||||
| Diameter interior | Extra Diameter | Latitudo | ds | Dh* | C | Co | THK | |||
| d | D | B | 'min | kN | kN | g | ||||
| CRBT105AC1P5 | 10 | 21 | 5 | 0.15 | 12.5 | 17 | 1.12 | 0.809 | 9 | RAU1005C0P5 |
| CRBT155AC1P5 | 15 | 26 | 5 | 0.15 | 17.5 | 22 | 1.32 | 1.1 | 12 | RAU1505C0P5 |
| CRBT205AC1P5 | 20 | 31 | 5 | 0.15 | 22.5 | 27 | 1.49 | 1.4 | 15 | RAU2005COP5 |
| CRBT255AC1P5 | 25 | 36 | 5 | 0.15 | 27.5 | 32 | 1.65 | 1.77 | 18 | RAU2505C0P5 |
| CRBT305AC1P5 | 30 | 41 | 5 | 0.15 | 32.5 | 37 | 1.89 | 2.14 | 21 | RAU3005C0P5 |
| CRBT355AC1P5 | 35 | 46 | 5 | 0.15 | 37.5 | 42 | 2.05 | 2.42 | 24 | RAU3505C0P5 |
| CRBT405AC1P5 | 40 | 51 | 5 | 0.15 | 42.5 | 47 | 2.14 | 2.74 | 27 | RAU4005C0P5 |
| CRBT455AC1P5 | 45 | 56 | 5 | 0.15 | 47.5 | 52 | 2.3 | 3.09 | 29 | RAU4505C0P5 |
| CRBT505AC1P5 | 50 | 61 | 5 | 0.15 | 52.5 | 57 | 2.43 | 3.49 | 32 | RAU5005C0P5 |
| CRBT555AC1P5 | 55 | 66 | 5 | 0.15 | 57.5 | 62 | 2.53 | 3.79 | 35 | RAU5505COP5 |
| CRBT605AC1P5 | 60 | 71 | 5 | 0.15 | 62.5 | 67 | 2.63 | 4.09 | 38 | RAU6005COP5 |
| CRBT655AC1P5 | 65 | 76 | 5 | 0.15 | 67.5 | 72 | 2.71 | 4.29 | 41 | RAU6505C0P5 |
| CRBT705AC1P5 | 70 | 81 | 5 | 0.15 | 72.5 | 77 | 2.81 | 4.68 | 44 | RAU7005COP5 |
| CRBT755AC1P5 | 75 | 86 | 5 | 0.15 | 77.5 | 82 | 2.9 | 5.05 | 47 | RAU7505C0P5 |
| CRBT805AC1P5 | 80 | 91 | 5 | 0.15 | 82.5 | 87 | 3.05 | 5.43 | 50 | RAU8005C0P5 |
| CRBT855AC1P5 | 85 | 96 | 5 | 0.15 | 87.5 | 92 | 3.11 | 5.7 | 53 | RAU8505C0P5 |
| CRBT905AC1P5 | 90 | 101 | 5 | 0.15 | 92.5 | 97 | 3.19 | 6.03 | 56 | RAU9005C0P5 |
| CRBT955AC1P5 | 95 | 106 | 5 | 0.15 | 97.5 | 102 | 3.22 | 6.31 | 59 | RAU9505C0P5 |
