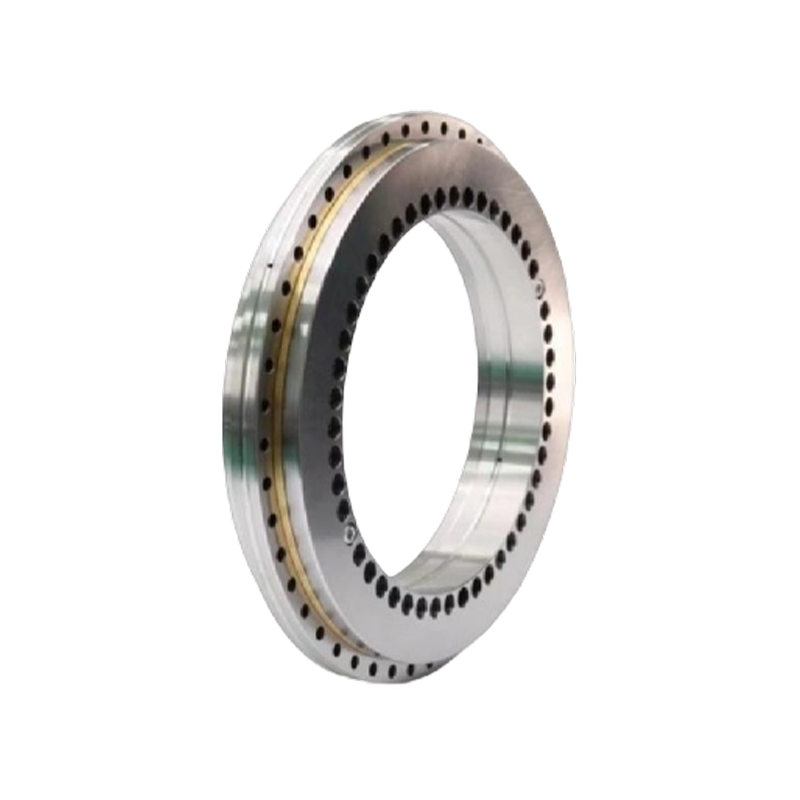

YRT Precision Turntable Ferens

YRT Subtilitas Turntable ferens anulus habitationi radialis, spiculum radiale anulus, claustrum fullonis, duo cylindrus acus conventus, et copia cylindrici cylindrici radialis. Annulus habitationum et hastile anulum cochleae pertusum ascendentes aequaliter distribuunt. Hoc genus lineamenta gerendi altae capacitatis axialis et radialis onus, altae rigiditatis, et summa subtilitas.

Contact Us Contact Us
PREV：No previous product DEINDE：YRTM Angulus mensurae supportantes
  • Descriptio
  • Specifications
  • Contact Us

Features of YRT Gyratorius Tabula Bearings:
1. Ferens deducta:
YRT gestus iunguntur gestus, functiones radiales integrantes et gestus intrusi. Simul possunt onera radialia et axialia ex diversis partibus sustinere et torques etiam sustinere.
2. Magna cura:
YRT gestus typice habent accuratam praecisionem, ut accurate gyrationis et positionis.
3. Rigiditas:
YRT gestus altam habent rigiditatem, stabilitatem sub magno onere conditionibus servans. Applications gravia incommoda requirunt ut firmitatem sub oneribus alta sustineant.
4. High Torque Capacity:
YRT gestus ordinantur ad onera magna sustinenda torques, cruciales ad applicationes rotationis et altae torques tradendae.
5. Securus instruitur et sustentationem:
YRT gestus typice habent simplicem structuram, institutionem et sustentationem expediendi. Hoc confert ad diuturnitatem firmitatis.

Application Area:
YRT gestus late in variis campis, inclusa arma robotica industrialia, instrumenta machinamenta, instrumenta typographica, machinas medicas et apparatum aerospace adhibent. Eorum mobilitas et magna observantia eos praeelegit pro multis applicationibus operandi.

Cautiones utens YRT Turntable Bearings:
1. Serva perferentem et ambitum ejus clean
Etiam minimae particulae pulvis negative gestus incursum possunt.
2. usus cum cura
Fortis impetus in usu causare potest exasperat et fuluum, ducens ad accidentia.
3. utere oportet instrumenta
Fugiat instrumenta substitutiva; utimur nisi instrumentis opportunis.
4. Agnoscite corrosionem afferentem
Sudore in manibus tuis rubiginem in operatione causare potest, sic certa manu uti munda et caestus si fieri potest

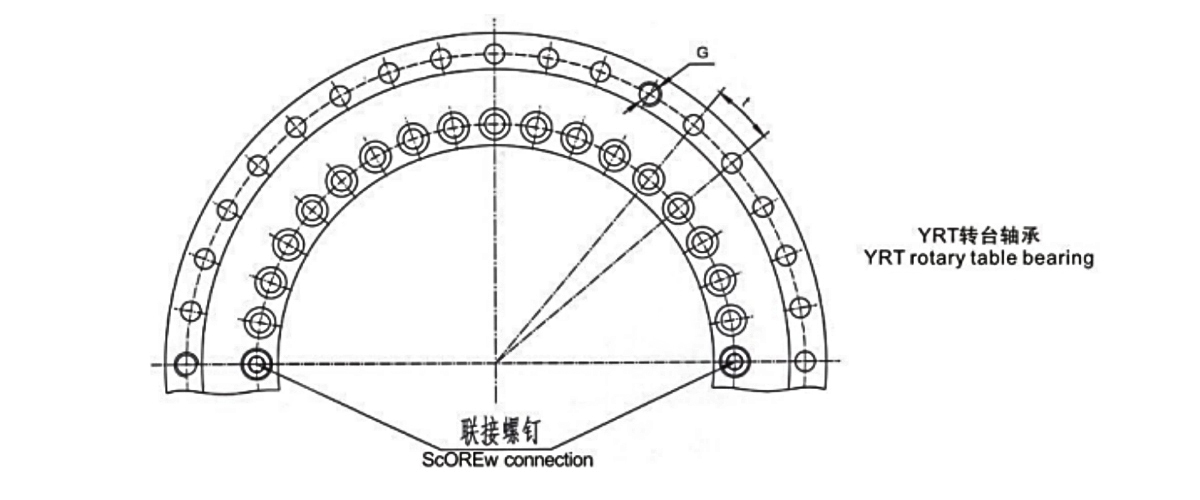

Screw
nexum
QTY 		Connect
ANISOCYCLUM foramina 		Pix
t 		tensis
torque
de  stupra 		Basic rated onus Limited celeritas Friction
momentum 		Pondus supportantes genus
Axial Radial
Dynamic Static Dynamic Static
Ma Ca Coa Cr Cor Adipe Lubrication
G QTY QTYXt Nm KN r/min Nm ≈Kg
2 一 一 12×30° 8.5 38 158 28.5 49.5 600 2.5 1.6 YRT50
2 一 一 12×30° 8.5 56 255 42.5 100 530 3 2.4 YRT80
2 M5 3 18×20° 8.5 76.5 415 47.5 120 430 3 4.1 YRT100
2 M8 3 24×15° 14 102 540 52 143 340 7 5.3 YRT120
2 M8 3 36×10° 14 112 630 56 170 320 10 6.2 YRT150
2 M8 3 48×75° 14 118 710 69.5 200 280 12 7.7 YRT180
2 M8 3 48×75° 14 120 765 81.5 220 260 14 9.7 YRT200
2 M12 3 36×10° 34 160 1060 93 290 200 20 18.3 YRT260
2 M12 3 36×10° 34 275 1930 120 345 170 40 25 YRT325
2 M12 3 48×75° 34 300 2280 186 655 140 55 33 YRT395
2 M12 3 48×75° 34 355 2800 200 765 120 70 45 YRT460
2 M12 6 48×75° 68 490 4250 228 965 80 140 89 YRT580
2 M12 6 48×75° 116 870 7400 430 1700 65 200 170 YRT650
3 M16 6 60×6° 284 1000 10010 455 1800 50 300 253 YRT850
3 M16 6 60×6° 284 1290 11400 530 2040 40 600 312 YRT950
6 M¹6 6 72-5° 284 1380 12000 620 2650 35 800 375 YRT1030
6 M16 6 72×5 284 1435 12850 745 2800 25 1000 450 YRT1200

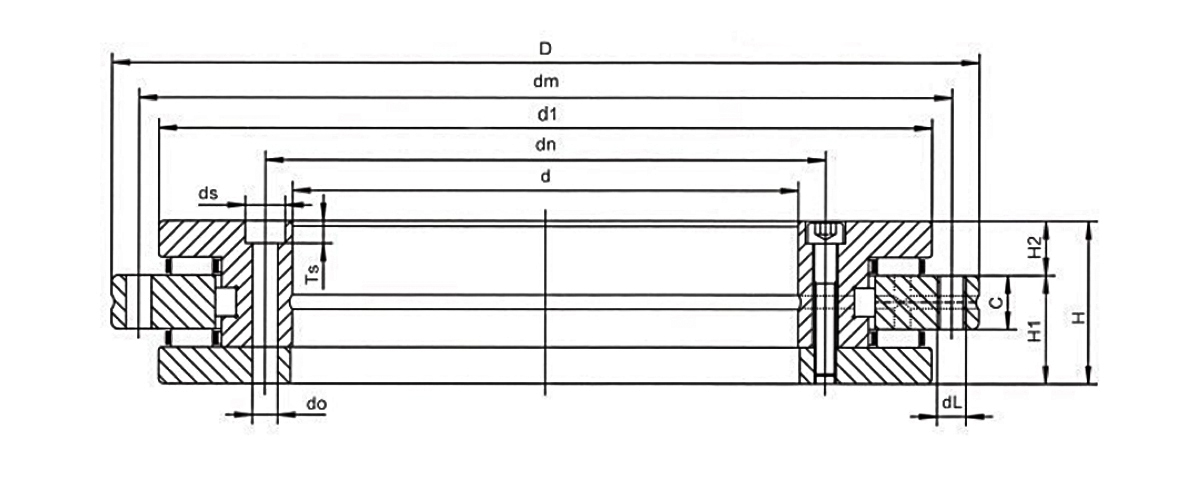

supportantes genus Super Dimensione Defixio foraminibus
d D H H1 H2 C d1 dn dm Interiorem anulum extra circulum
Unitas: mm do ds Ts QTY dL* QTY
mm mm
YRT50 50 126 30 20 10 10 105 63 116 5.6 9 4.2 10 5.6 12
YRT80 80 146 35 23.35 11.65 12 130 92 138 5.6 10 4.2 10 4.6 12
YRT100 100 185 38 25 13 12 160 112 170 5.6 10 5.4 16 5.6 15
YRT120 120 210 40 26 14 12 184 135 195 7 11 6.2 22 7 21
YRT150 150 240 40 26 14 12 214 165 225 7 11 6.2 34 7 33
YRT180 180 280 43 29 14 15 244 194 260 7 11 6.2 46 7 45
YRT200 200 300 45 30 15 15 274 215 285 7 11 6.2 46 7 45
YRT260 260 385 55 36.5 18.5 18 345 280 365 9.3 15 8.2 34 9.3 33
YRT325 325 450 60 40 20 20 415 342 430 9.3 15 8.2 34 9.3 33
YRT395 395 525 65 42.5 22.5 20 486 415 505 9.3 15 8.2 46 9.3 45
YRT460 460 600 70 46 24 22 560 482 580 10 15 8.2 46 10 45
YRT580 580 750 90 60 30 30 700 610 720 11.4 18 11 46 11.4 42
YRT650 650 870 122 78 44 34 800 680 830 14 20 13 45 14 42
YRT850 850 1095 124 80.5 43.5 37 1018 690 1055 18.5 26 17 57 18.5 54
YRT950 950 1200 132 86 46 40 1130 990 1160 18.5 26 17 57 18.5 54
YRT1030 1030 1300 145 92.5 52.5 40 1215 1075 1255 18.5 26 17 66 18.5 66
YRT1200 1200 1490 164 108 56 52 1410 1240 1445 18.5 26 17 66 18.5 66
