RA series tenues profile transiit cylindrus gestus plumas minores externas diametri et latitudines dimensionum, quibus aptas applicationes ad spatia arctoas facit. Haec series in cavea, separator et completiva genera ad varias necessitates aptandas praesto est.
Facultatem onus:
Basic Dynamic Load Rating (Ca): 234,000 N
Basic Axial Static Load Rating (C0a): 690,000 N
Basic Axial Dynamic Load Rating (Cr): 166,000 N
Basic Radial Static Load Rating (C0r): 340,000 N
Ferens Features:
1. Praeclarus Gyratorius Accuracy: Maximum celeritatem facultatem, magnas axeos et radiales onera sustinere possunt.
2. Securus instruitur: Spatium institutionis servat, stipitem longitudinis et machinis gratuita reducet.
3. Maximum Scelerisque Expansion: Minimae mutationes dimensivarum, ad applicationes altae praecisiones aptae.
4. Maximum Satus Torque: Nylon separatores inertiam gyratoriam reducent et faciliores indexing imperium angularis.
5. Maximum rigorem et subtilitatem; Optimized preload auget rigorem et cylindrus accurate currentem.
6. Gere et corrosio resistendi; Constructus est summus carbonus chromium chalybeum (GCr15) et TN materiarum materiatorum, praestantem impulsum resistentiam praebens et superficiem indumenti resistendi.
Applicationes:
RA series cylindrus transiens gestus late adhibentur in articulis robotis manu rotariis, praecisio instrumentorum probationum, motorum torquerum directarum, turntableorum alta praecisio, et aliae applicationes altae praecisionem et rigiditatem requirunt..

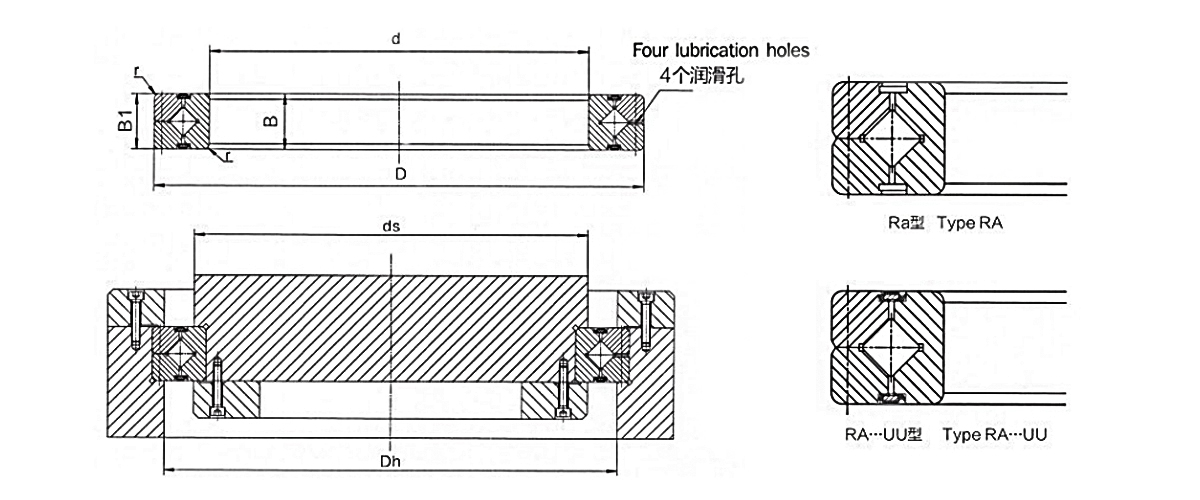

| supportantes Type | Dimension | Humerum Amplitudo | Basic Load rating (radial) | Pondus | ||||||
| Diameter interior | Extra Diameter | Diameter Rollerus Pix | Altitudo | Chamfer | Cr | Cor | ||||
| d | D | Dpw | B B1 | Rmin | ds | Dh* | KN | KN | kg | |
| RA 5008 | 50 | 66 | 57 | 8 | 0.5 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
| RA6008 | 60 | 76 | 67 | 8 | 0.5 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
| RA7008 | 70 | 86 | 77 | 8 | 0.5 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
| RA 8008 | 80 | 96 | 87 | 8 | 0.5 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
| RA 9008 | 90 | 106 | 97 | 8 | 0.5 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
| RA10008 | 100 | 116 | 107 | 8 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
| RA11008 | 110 | 126 | 117 | 8 | 0.5 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
| RA 122008 | 120 | 136 | 127 | 8 | 0.5 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
| RA 13008 | 130 | 146 | 137 | 8 | 0.5 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
| RA 14008 | 140 | 156 | 147 | 8 | 0.5 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
| RA 15008 | 150 | 166 | 157 | 8 | 0.5 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
| RA 16013 | 160 | 186 | 172 | 13 | 0.8 | 165 | 179 | 23.3 | 44.9 | 0.59 |
| RA 17013 | 170 | 196 | 182 | 13 | 0.8 | 175 | 189 | 23.5 | 46.5 | 0.64 |
| RA 18013 | 180 | 206 | 192 | 13 | 0.8 | 185 | 199 | 24.5 | 49.8 | 0.68 |
| RA 19013 | 190 | 216 | 202 | 13 | 0.8 | 195 | 209 | 24.9 | 51.5 | 0.69 |
| RA 20013 | 200 | 226 | 212 | 13 | 0.8 | 205 | 219 | 25.8 | 54.7 | 0.71 |
