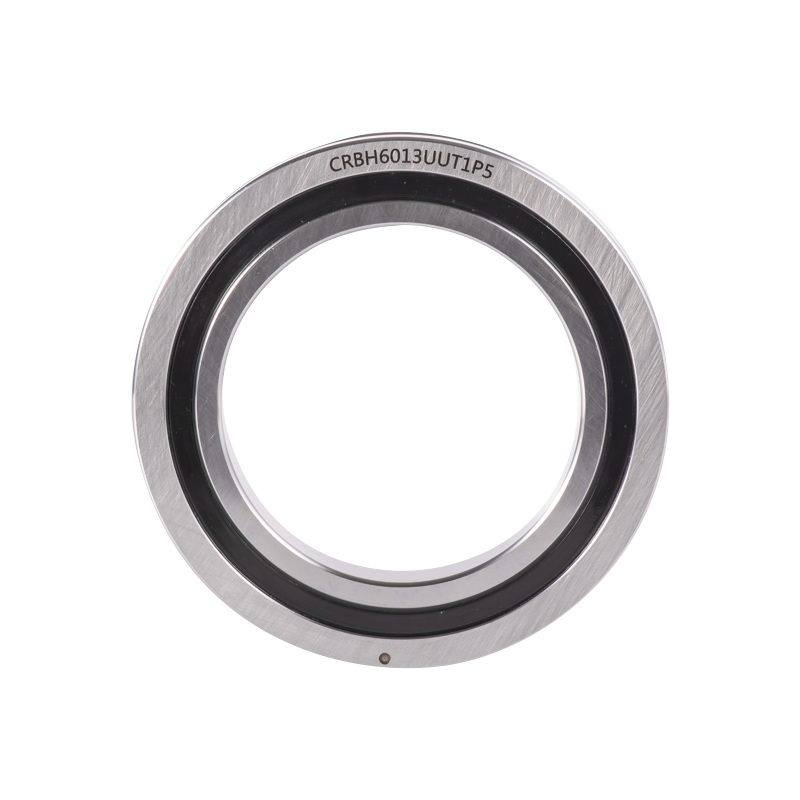

CRBH Ultra Thin Subtilitas Ferens

CRBH Ultra tenuis Subtilitas Ferens est versio ultra-tenuis generis RU, altam rigiditatem et praecisionem altam. Hoc exemplar caret cavernis in circulis interioribus et exterioribus ascendentibus, flanges et sedes ad institutionem sustentandam requirunt. Portatio ex anulo externo, anulo interiore constat, et cuneos tutelae plasticae volvens. Anulus exterior lineamenta e forma craticulae conficit et tribus anulis constringentibus munitur, applicationibus apta ubi anulus interior circumagitur.

Contact Us Contact Us
PREV：RA Thin Cross Rollerus Ferens DEINDE：SX Thin Profile Subtilitas Ferens
  • Descriptio
  • Specifications
  • Contact Us

Ferens Commoda
1. High Rigidity and High Precision: Orthogonaliter ordinati cylindrici inter anulos interiores et exteriores rigiditatem augent et accurationem currentem.
2. Design Separator: Separatores inter scutulas installantur ut rotationem lenis curent.
3. Securus instruitur: Ascendentes foramina in annulis interioribus et exterioribus faciliorem institutionem in apparatum faciliorem reddunt.
4. Open et signati Type Options: Partes signatae instructae sunt specialibus gaskets syntheticis globulorum ad tutelam additam pertinentibus.

Vendere Points
Tenuis et praecisio; Subtilitas usque ad P2 et P4, apta ad applicationes gyratorias alta praecisione.
Tenuis Crucis-Sectio Design: Insigniter emendavit rigorem traditis gestus comparans.

Applications
CRBH species gestus aptae sunt ad applicationes exigentibus dimensionibus transversis sectionebus et alta praecisione gyrationis, ut praecisio tabularum gyratorii, brachii robotici articuli rotarii, machinae medicae et instrumenta metiendi.

Commoda Comparatio
Comparatur ad gestus pilae, CRBH gestus typus significanter rigiditatem emendans per lineam contactus structuram cylindrici cylindrici. Comparatur ad globum gestus contactum angularis duplicatum, eius minor designatio crucis-sectionis rigiditatem auget per 3 ad 4 tempora, occurrens superiora requisita perficiendi.

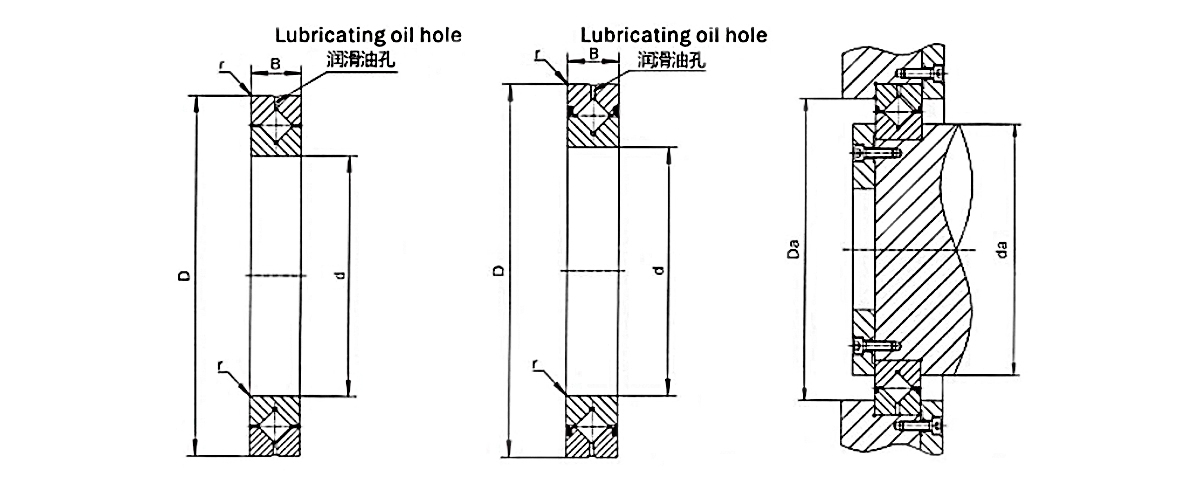

supportantes Type Dimension Humerum Location Basic  Load  rating(rad Pondus
Diameter interior Extra Diameter Summus Chamfer Cr Cor
d D B Rmin da Da KN KN kg
CRBH 208 A 20 36 8 0.3 24 31 2.91 2.43 0.04
CRBH 258 A 25 41 8 0.3 29 36 3.12 2.81 0.05
CRBH 3010 A 30 55 10 0.3 36.5 48.5 7.6 8.37 0.12
CRBH 3510 A 35 60 10 0.3 41.5 53.5 7.9 9.13 0.13
CRBH 4010 A 40 65 10 0.3 46.5 58.5 8.61 10.6 0.15
CRBH 4510 A 45 70 10 0.3 51.8 63.5 8.86 11.3 0.16
CRBH   5013A 50 80 13 0.6 56 74 17.3 20.9 0.29
CRBH   6013A 60 90 13 0.6 66 84 18.8 24.3 0.33
CRBH7013A 70 100 13 0.6 76 94 20.1 27.7 0.38
CRBH   8016A 80 120 16 0.6 88 112 32.1 43.4 0.74
CRBH   9016A 90 130 16 0.6 98 122 33.1 46.8 0.81
CRBH 10020 A 100 150 20 0.6 110 140 50.9 72.2 1.45
CRBH11020 A 110 160 20 0.6 120 150 52.4 77.4 1.56
CRBH 12025 A 120 180 25 1 132 168 73.4 108 2.62
CRBH 13025 A 130 190 25 1 142 178 75.9 115 2.82
CRBH 14025 A 140 200 25 1 152 188 81.9 130 2.96
CRBH 15025 A 150 210 25 1 162 198 84.3 138 3.16
CRBH 20025 A 200 260 25 1 212 248 92.3 169 4
CRBH 22025 A 220 280 25 1.5 254.9 283.1 92.3 171 4.1
CRBH 24025 A 240 300 25 2 263.4 291.6 68.3 145 4.5
CRBH 25025 A 250 310 25 1.5 262 298 102 207 4.97
CRBH 25030 A 250 330 30 2.5 270.5 304.5 126 244 8.1
CRBH 25040 A 250 355 40 2.5 278.1 323.3 195 348 14.8
CRBH 30025 A 300 360 25 1.5 313.9 342.1 75.5 178 5.9
CRBH 30035 A 300 395 35 2.5 323.8 366.2 183 367 13.4
CRBH 30040 A 300 405 40 2.5 330.4 372.8 212 409 17.2
CRBH 35020 A 350 400 20 1 362.1 384.7 54.1 143 3.9
CRBH 40035 A 400 480 35 2.5 422 456 156 370 14.5
CRBH 40040 A 400 510 40 2.5 429.8 472 241 531 23.5
CRBH 45025 A 450 500 25 1 460.7 483.3 61.7 182 6.6
CRBH 50025 A 500 550 25 1 512.9 535.5 65.5 201 7.3
CRBH 50040 A 500 600 40 2.5 527.6 570 239 607 26
CRBH 50050 A 500 625 50 2.5 533.3 589.9 267 653 41.7
CRBH 60040 A 600 700 40 3 625.8 668.2 264 721 29
