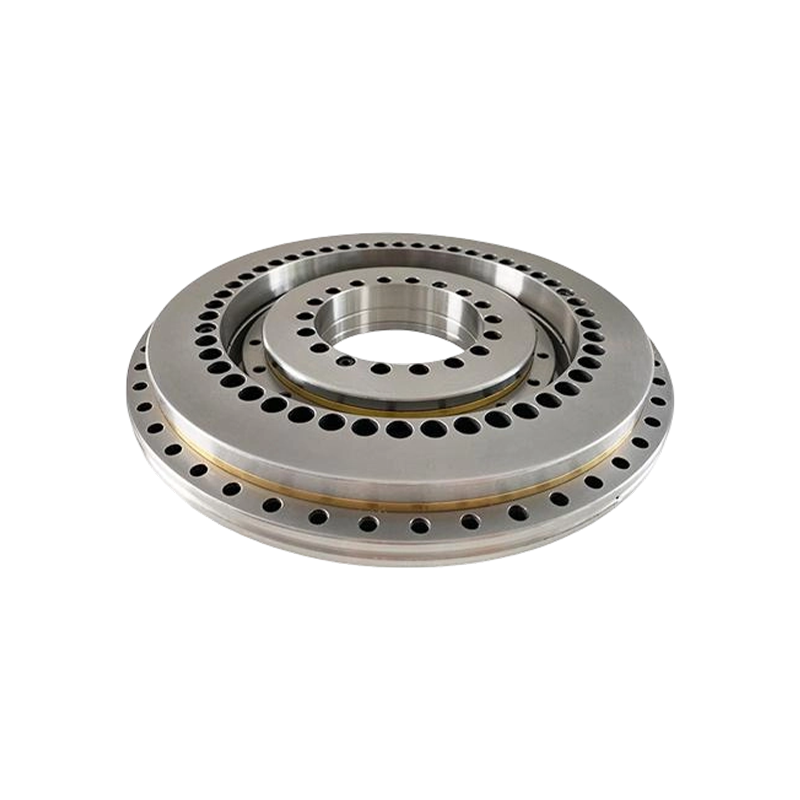

YRTM Angulus mensurae supportantes

YRTM mensam rotariam sustinens cum systemate mensurae angulo: obsessio mensurae angularis munus magnum habet in applicationibus industrialibus, imprimis in instrumento machinae industriae, ubi alta cura requiritur ad angulum rotationis partium machinarum. Haec necessaria est accurata mensuratio et obsessio angularis moderatio.

In praesenti, communiter modi pro obsessione angularis mensurae includunt encoders opticos et encoders magneticos. Praeterea, cum in ORT gerentem insidet, hasta coniuncta valde altam accurate gyrationis offert et simul ferre possunt axilia onera, onera radialia et momenta evertendi. Valde convenit ad altas accurate CNC tabulas rotarias, machinamenta centra, et applicationes postulare ut investigationem scientificam et mensurationem in instrumento instrumenti industriae..

Contact Us Contact Us
PREV：YRT Precision Turntable Ferens DEINDE：YRTS Casio Subtilitas Ferens
  • Descriptio
  • Specifications
  • Contact Us

Commoda craticulae ferri et ratio mensurae:
1. Non-contactus inductivus encoder, liberum lapsum
2. Cura comparabilis cum encoders opticis, accuratione maxima ≤2

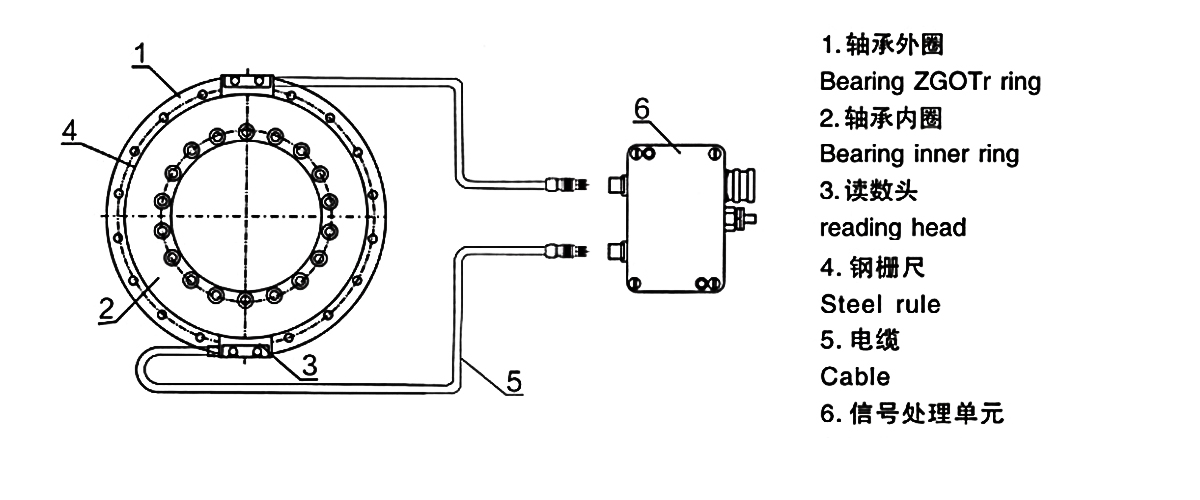

3. Dual lectio capitis mensurae ratio concedit pro real-time correctione radiales deviationes ferre
4. Alta velocitas, summa dynamica perficientur, alta resolutio
5. Nulla magnetica, nulla hysteresis responsio, nullum aleam demagnetizationis
6. Fortis resistentia ad impedimentum environmental, tutelae IP67 rating, quaedam pressurae et pulveris aquae resistit, minime inquinationis vel sordium.
7. Consilium Foedus problema solvit de spatio institutionis limitatae.
8. Potest output sine fluctu (1VPP) vel signo unda quadrato (TTL), compatible cum systematibus Siemens et FANUC CNC.

YRTM tabula gyratoria lineamenta cum angulo mensurae systematis gerens;
1. Non-contactus inductivus encoder, liberum lapsum;
2. Sagaciter 1. Magna praecisio ≤2'' cum encoders optica comparatur;
2. Ratio mensurae dual-reade concedit correctionem realem temporis ferre radialem declinationem;
3. Alta velocitas, summa agendi dynamica, princeps animi;
4. Nullae partes magneticae, nullum magneticum taeniola reactionem, nullum demagnetizationis periculum;
5. Valida resistentia ad impedimentum environmental sicut particulae solidae et oleum, IP67 aestimationem tutelae, pressioni aquae, pulveri, et insensibilis ad quamlibet inquinationem vel sordes resistit;
6. Consilium Foedus problema solvit de spatio institutionis limitatae;
7. Simplex institutio, ieiunium temperatio, eximie resistentia ad concussionem et vibrationem, stabilitatem bonam et firmitatem.

Applicationes:

Productum maxime adhibitum est in instrumenta machinae machinae alta praecisione CNC, instrumentum machinae fusi, radar, robotarum industrialium, aerospace, et aliorum agrorum.

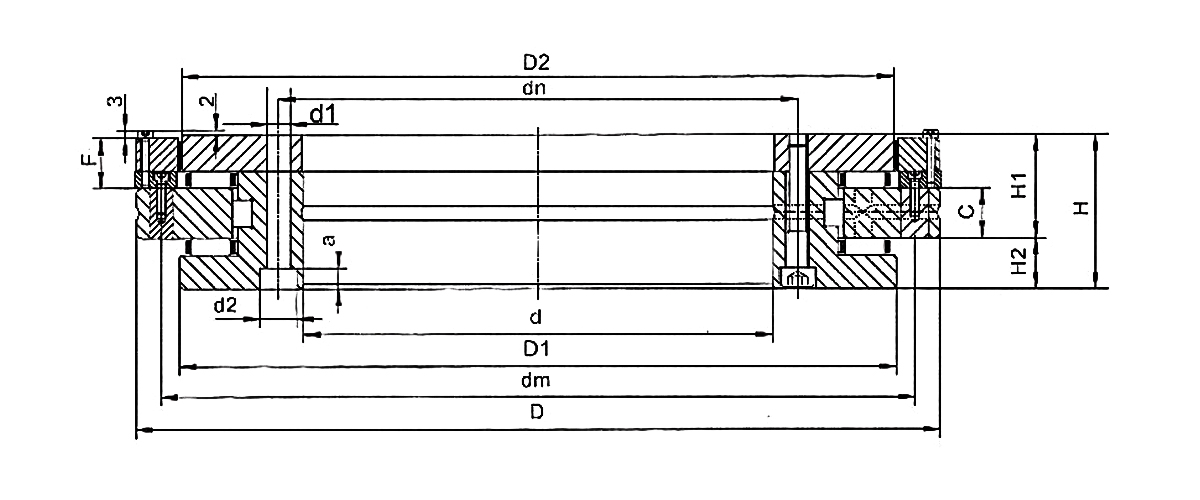

supportantes genus Super Dimensione Defixio foraminibus
d D H H1 H2 C D1 D2 F L dn dm Interiorem anulum extra circulum
Unitas: mm d1 d2 a QTY d3 QTY
mm mm
YRTM150 150 240 43* 29 * 14 12 214 213.81 16.5 121 165 225 7 11 6.2 32 7 33
YRTM180 180 280 46* 32* 14 15 244 243.76 16.5 140 194 260 7 11 6.2 44 7 45
YRTM200 200 300 47* 32* 15 15 274 273.05/274.42 16.5 152 215 285 7 11 6.2 44 7 45
YRTM260 260 385 55 36.5 18.5 18 345 344.37/433.1 17.5 192.5 280 365 9.3 15 8.2 32 9.3 33
YRTM325 325 450 60 40 20 20 415 413.76 18.5 225 342 430 9.3 15 8.2 32 9.3 33
YRTM395 395 525 65 42.5 22.5 20 486 483.18 18.5 262.5 415 505 9.3 15 8.2 42 9.3 45
YRTM460 460 600 70 46 24 22 560 557.03 18.5 300 482 580 10 15 8.2 42 10 45

Screw
nexum
QTY 		Axialis radialis
currere-exire 		Connect
ANISOCYCLUM foramina 		Pix
t 		tensis
torque
cochleae 		Basic rated onus Limited
spped 		Friction
momentum 		Pondus supportantes genus
Axial Radial
Dynamic Static Dynamic Static
Ma Ca Coa Cr Cor Grease
Lubricatio
μm G QTY QTY Xt Nm KN r/min Nm ≈Kg
4 3 M8 3 36×10° 14 112 630 56 170 320 10 6.2 YRTM150
4 4 M8 3 48×7.5° 14 118 710 69.5 200 280 12 7.7 YRTM180
4 4 M8 3 48×7.5° 14 120 765 81.5 220 260 14 9.7 YRTM200
4 6 M12 3 36×10° 34 160 1060 93 290 200 20 18.3 YRTM260
4 6 M12 3 36×10° 34 275 1930 120 345 170 40 25 YRTM325
6 6 M12 3 48×7.5° 34 300 2280 186 655 140 55 33 YRTM395
6 6 M12 3 48×7.5° 34 355 2800 200 765 120 70 45 YRTM460
