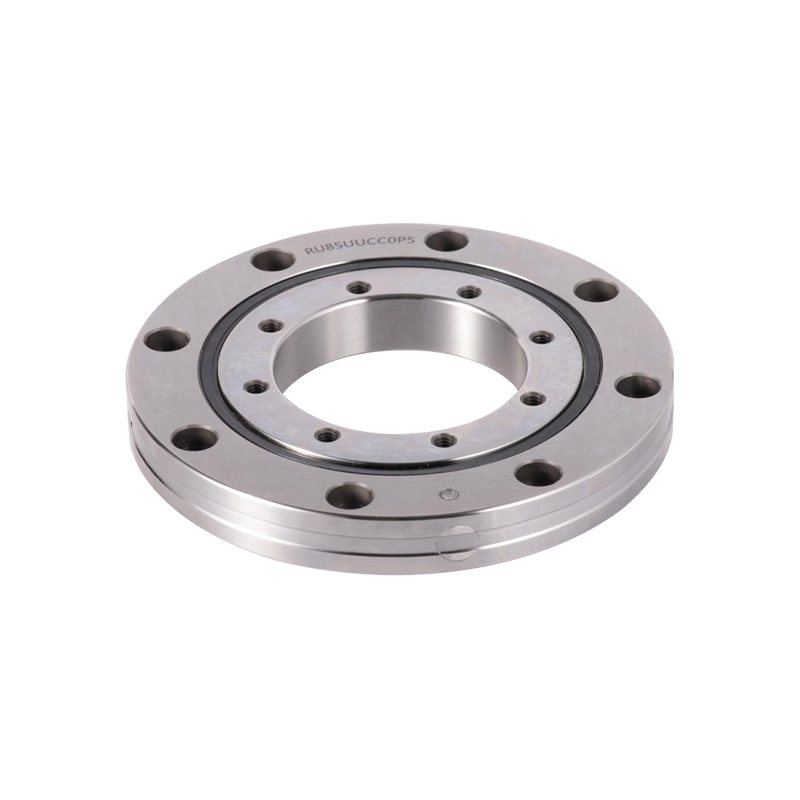

RB2508 robot Crossed Rollerus supportantes

Genus RB est praecipuum exemplar cylindri transmissi ferentis featurum anulum scissum exteriorem et anulum interiorem integratum. Aptissimum est praesertim applicationes qui altam accurate gyrationis interioris anuli requirunt. Exempli gratia, late in sectionibus rotariis tabularum indicendi in instrumentorum machinarum adhibitis.

Contact Us Contact Us
PREV：JXR Type (Crossed Tapered Roller Ferens) DEINDE：CSD Robot Harmonic Reducers supportantes
  • Descriptio
  • Specifications
  • Contact Us

Product Features:
cylindrus traiectus ex duobus ordinibus cylindricorum cylindrorum orthogonaliter dispositis in 90° stadiis V informibus, nylon globulos separatis. Haec compages efficit ut simul sustineant onera radialia, axialia onera et momenta onerum multiplicium directionum. Dimensiones anulorum tam interiorum quam exteriorum sunt compacti, et genus ultra-tenuis accedit ad magnitudinem minimam, servata adhuc alta rigiditate. BYC Boying transgressus cylindrus gestus praecisionem consequi potest usque ad P2 gradum.

Applicationes:
Articuli roboti, motores torques directi, instrumenta exactionis inspectionis, tabulae rotariae praecisio, et similes systemata gyratoria alta accurate.

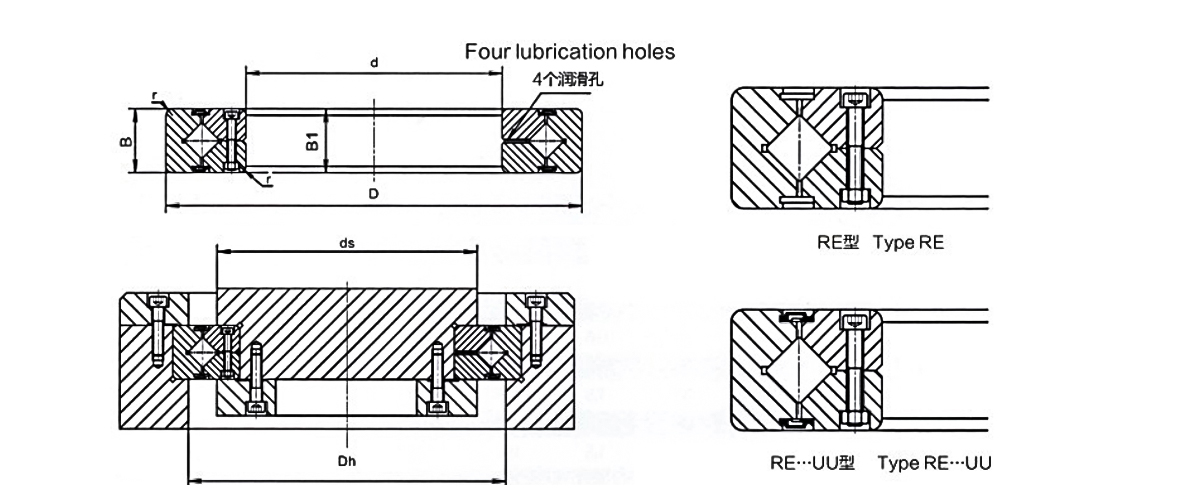

supportantes Type Dimension Humerum Location Basic Load rating (radial) Pondus
Diameter interior Extra Diameter Diameter Rollerus Pix Altitudo Chamfer Cr Cor
d D Dpw B B1 rmin ds Dh** KN KN kg
RB 2008 20 36 27 8 0.5 23.5 30.5 3.23 3.1 0.04
RB 2508 25 41 32 8 0.5 28.5 35.5 3.63 3.83 0.05
RB 3010 30 55 41.5 10 0.6 37 47 7.35 8.36 0.12
RB 3510 35 60 46.5 10 0.6 41 51.5 7.64 9.12 0.13
RB 4010 40 65 51.5 10 0.6 47.5 57.5 8.33 10.6 0.16
RB 4510 45 70 56.5 10 0.6 51 61.5 8.62 11.3 0.17
RB 5013 50 80 64 13 0.6 57.4 72 16.7 20.9 0.27
RB 6013 60 90 74 13 0.6 68 82 18 24.3 0.3
RB 7013 70 100 84 13 0.6 78 92 19.4 27.7 0.35
RB 8016 80 120 98 16 0.6 91 111 30.1 42.1 0.7
RB 9016 90 130 108 16 1 98 118 31.4 45.3 0.75
RB 10016 100 140 119.3 16 1 109 129 31.7 48.6 0.83
RB 10020 100 150 123 20 1 113 133 33.1 50.9 1.45
RB 11012 110 135 121.8 12 0.6 117 127 12.5 24.1 0.4
RB 11015 110 145 126.5 15 0.6 122 136 23.7 41.5 0.75
RB 11020 110 160 133 20 1 120 143 34 54 1.56
RB 12016 120 150 134.2 16 0.6 127 141 24.2 43.2 0.72
RB 12025 120 180 148.7 25 1.5 133 164 66.9 100 2.62
RB 13015 130 160 144.5 15 0.6 137 152 25 46.7 0.72
RB 13025 130 190 158 25 1.5 143 174 69.5 107 2.82

supportantes Type Dimension Humerum Location Basic Load   rating(radial) Pondus
Diameter interior Extra Diameter Diameter Rollerus Pix Altitudo Chamfer Cr Cor
d D Dpw B B1 Rmin ds Dh** KN KN kg
RE 14016 140 175 160 16 1 147 162 25.9 50.1 1
RE 14025 140 200 172 25 1.5 154 185 74.8 121 2.96
RE 15013 150 180 166 13 0.6 158 172 27 53.5 0.68
RE 15025 150 210 182 25 1.5 164 194 76.8 128 3.16
RE 15030 150 230 192 30 1.5 173 210 100 156 5.3
RE 16025 160 220 192 25 1.5 173 204 81.7 135 3.14
RE 17020 170 220 196.1 20 1.5 184 198 29 62.1 2.21
RE 18025 180 240 210 25 1.5 195 225 84 143 3.44
RE 19025 190 240 219 25 1 202 222 41.7 82.9 2.99
RE 20025 200 260 230 25 2 215 245 84.2 157 4
RE 20030 200 280 240 30 2 221 258 114 200 6.7
RE 20035 200 295 247.7 35 2 225 270 151 252 9.6
RE 22025 220 280 250.1 25 2 235 265 92.3 171 4.1
RE 24025 240 300 272.5 25 2.5 256 281 68.3 145 4.5
RE 25025 250 310 280.9 25 2.5 268 293 69.3 150 5
RE 25030 250 330 287.5 30 2.5 269 306 126 244 8.1
RE 25040 250 355 300.7 40 2.5 275 326 195 348 14.8
RE 30025 300 360 332 25 2.5 319 344 75.5 178 5.9
RE 30035 300 395 345 35 2.5 322 368 183 367 13.4
RE 30040 300 405 351.6 40 2.5 326 377 212 409 17.2
RE 35020 350 400 376.6 20 2.5 363 383 54.1 143 3.9
RE 40035 400 480 440.3 35 2.5 422 459 156 370 14.5
RE 40040 400 510 453.4 40 2.5 428 479 241 531 23.5
RE 45025 450 500 476.6 25 1 464 484 61.7 182 6.6
RE 50025 500 550 526.6 25 1 514 534 65.5 201 7.3
RE 50040 500 600 548.8 40 2.5 526 572 239 607 26
RE 50050 500 625 561.6 50 2.5 536 587 267 653 41.7
RE 60040 600 700 650 40 3 627 673 264 721 29
