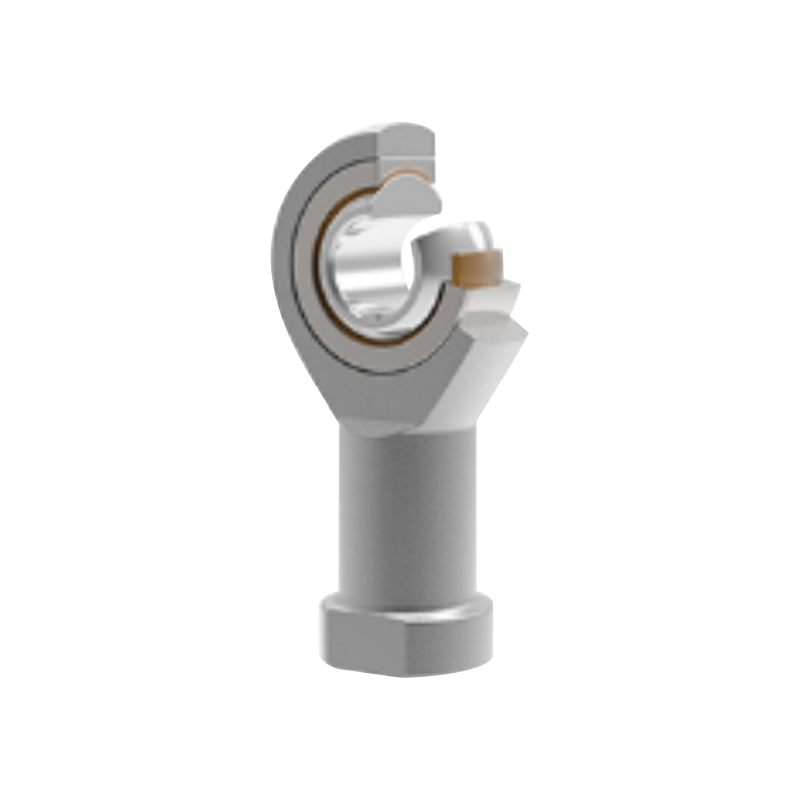

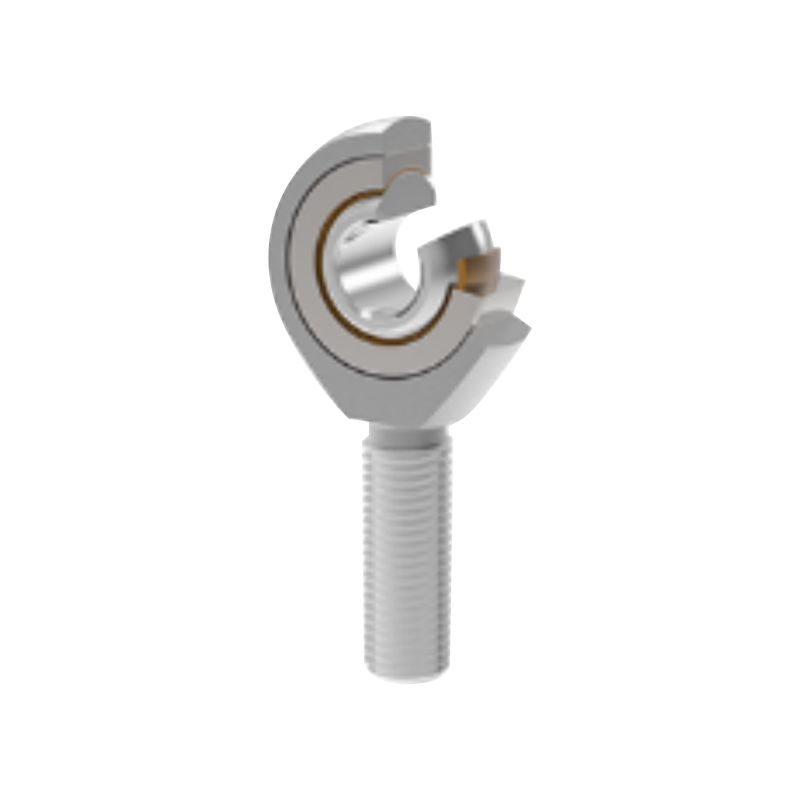

Hoc est liberum sustentationem, virga finem sui lubrica gerens. Virga nis corpus fit ex chalybe et fovetur ad rubiginem praeventionis; annulus exterior basim aeneam cum materia composita PTFE praecise illapsam ad continuam sui lubricationem instruxit; anulus interior factus est ferream ferens, integraliter exstingui, et deinde sphaericus ferreus chrome patella ad invigilandum princeps indumentorum resistentiarum.
Product Number:
·SIK…C 5～20
·SAK…C 5～20
Par friction PROLAPSIO: Steel / PTFE Materia composita
Temperature Range operating: -50℃～＋150℃
Optiones Customization:
· Post Customization: Producta cum diversis vocibus vel speciali filo praecisio postulantibus praeberi potest.
· Sinistra Thread: Stamina sinistra utentes "L" et "Sinistra" requirent ut post exemplar numeri et sequela notati addantur. Exemplum:
· Internum Thread: SILK20C M20×1.5 Left 6H
· Thread externi: SALK20C M20×1.5 Reliquit 6g

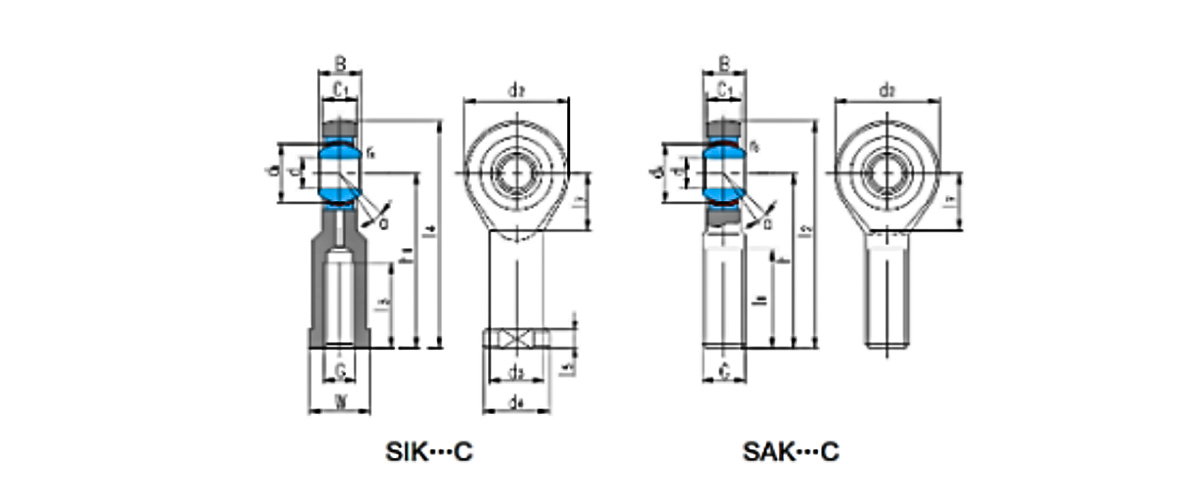

| Beaing numerus | Dimensiones mm/inch | Load ratings kN | Pondus ≈kg | ||||||||||||||||
| d | B | dₖ | C₁ max | d₂ | G 6H | h₁ | I₃ min | I₄ | I₅ | I₇ | W | d₃ | d₄ | r min | α° ≈ | Dynamic | Static | ||
| SIK5C | 5 | 8 | 11.112 | 6 | 19.5 | M5 | 30 | 12 | 39.8 | 5 | 9.5 | 10 | 10 | 13 | 0.3 | 4 | 3.6 | 4.6 | 0.024 |
| SIKBC | 8 | 9 | 12.7 | 7.5 | 21.2 | M6 | 30 | 40.7 | 5 | 11 | 10 | 10 | 13 | 0.3 | 9 | 4.7 | 5.2 | 0.028 | |
| SIKBC | 8 | 12 | 15.88 | 9.5 | 25.5 | M8 | 36 | 12 | 4B. | 5 | 13 | 13 | 12.5 | 16 | 0.3 | 12 | 7.6 | 8.2 | 0.053 |
| SIK10C | 10 | 14 | 19.05 | 11.5 | 31 | M10 | 43 | 19 | 58.6 | 6.5 | 16 | 16 | 15 | 19 | 0.3 | 10 | 12 | 15 | 0.11 |
| SIK12C | 12 | 16 | 2223 | 12.5 | 34 | M12 | 50 | 23 | 67 | 6.5 | 18 | 18 | 17.5 | 22 | 0.3 | 12 | 14 | 19 | 0.14 |
| SIK14C | 14 | 19 | 25.4 | 14.5 | 38 | M14 | 57 | 23 | 76 | B | 20 | 21 | 20 | 25 | 0.3 | 14 | 19 | 24 | 0.20 |
| SIK18C | 16 | 21 | 28.58 | 15.5 | 42 | M16 | 64 | 24 | 85 | B | 21 | 24 | 22 | 27 | 0.3 | 14 | 23 | 29 | 0.25 |
| SIK1BC | 18 | 23 | 31.75 | 17.5 | 48 | M18×1.5 | 71 | 27 | 94 | 10 | 22.5 | 27 | 25 | 31 | 0.6 | 13 | 29 | 34 | 0.35 |
| SIK20C | 20 | 25 | 34.93 | 18.5 | 50 | M20×1.5 | 77 | 30 | 102 | 10 | 25 | 30 | 27.5 | 34 | 0.6 | 14 | 34 | 40 | 0.43 |
| Ferens numerus | Dimensiones mm/inch | Load ratings kN | Pondus ≈kg | ||||||||||||||||
| d | B | dₖ | C₁ max | d₂ | G 6g | h | I₁ min | I₂ | I₇ | r min | α° ≈ | Dynamic | Static | ||||||
| SAK5C | 5 | 8 | 11.112 | 8 | 19.5 | M5 | 33 | 19 | 428 | - | 0.3 | 4 | 3.6 | 3.9 | 0.017 | ||||
| SAKBC | 6 | 9 | 12.7 | 7.5 | 21.2 | M6 | 36 | 21 | 48.7 | - | 0.3 | 9 | 4.7 | 5.2 | 0.023 | ||||
| SAKaC | 8 | 12 | 15.88 | 9.5 | 25.5 | M8 | 42 | 25 | 54.8 | - | 0.3 | 12 | 7.6 | 8.2 | 0.047 | ||||
| SAK10C | 10 | 14 | 19.05 | 115 | 31 | M10 | 48 | 2B | 63.6 | - | 0.3 | 10 | 12 | 15 | 0.085 | ||||
| SAK12C | 12 | 16 | 2223 | 12.5 | 34 | M12 | 54 | 32 | 71 | - | 0.3 | 12 | 14 | 19 | 0.12 | ||||
| SAK14C | 14 | 19 | 25.4 | 14.5 | 38 | M14 | 80 | 36 | 79 | - | 0.3 | 14 | 19 | 24 | 0.17 | ||||
| SAK18C | 16 | 21 | 28.58 | 15.5 | 42 | M16 | 66 | 37 | 87 | - | 0.3 | 14 | 23 | 29 | 0.23 | ||||
| SAK18C | 18 | 23 | 31.75 | 17.5 | 48 | M18×1.5 | 72 | 41 | 95 | - | 0.6 | 13 | 29 | 34 | 0.31 | ||||
| SAK20C | 20 | 25 | 34.93 | 18.5 | 50 | M20×1.5 | 78 | 45 | 103 | 27.5 | 0.6 | 14 | 34 | 40 | 0.40 | ||||
