SI Sustentationem Free Rod finem supportantes

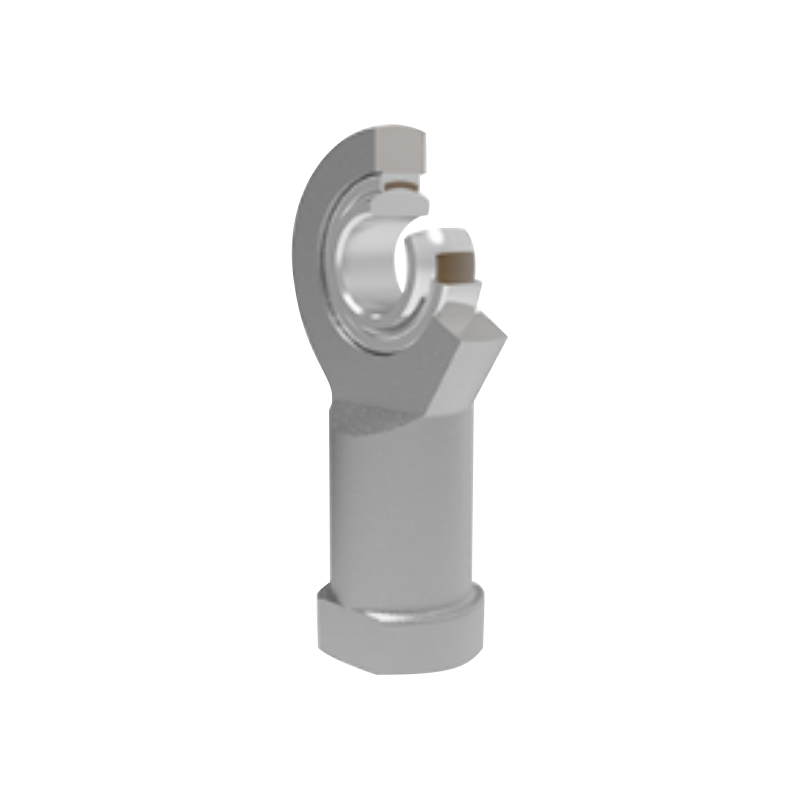

SI…C auto-lubricans conglobatus baculum finem sphaericum campum gerens: Congregatus e galvanizato carbo carbonis virgae extremitatis corporis et se-luctans radialem campum sphaericum gerens GE…C, consilio libero conservato, nulla lubricatio externa requiritur, operationem stabilem diuturnum procurans.

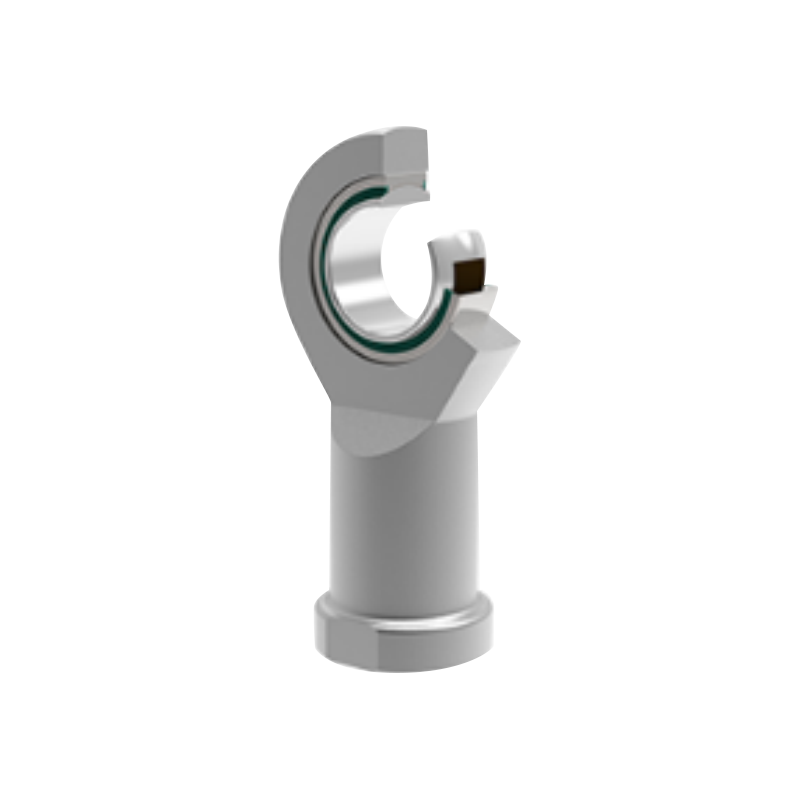

SI…ETL 2RS auto-lubricans coadunatus baculum finem campi sphaerici gerentis: Congregati e galvanizato roda carbo carbonis extremitatis corporis et se globosum globosum radialem se lubricantem gerentem GE…ET 2RS, formare consilium sigillum clausulum ne contaminationem, lubricationem exigentias eliminare, et ambitus duris accommodare.

Contact Us Nobis Contactus
PRIOR:SAZP Rod finem felis Ferens SEQUENS:SA Sui Lubricating Rod finis Sphaerica Ferens
  • Descriptio
  • Specificationes
  • Nobis Contactus

Product Number
SI…C (5～30) SI…ETL 2RS (15～80)

Illapsum Pal friction
·SI…C: Ferro / PTFE materia composita
·SI…ETL 2RS: Ferro / PTFE tortis fabricae

Temperature Range operating
Idoneum ad late temperatus range
·SI…C: 50℃～ 150℃
·SI…ETL 2RS: 30℃～ 130℃

Optiones customization
· Virga finis gestus cum diversis vocum aut filorum praecisione requisita praesto sunt ut peculiaria applicationis necessitates occurrant.
· Sinistra Thread Vestigium: Ad filum versionum sinistrae adde "L" vel "supersunt" post numerum exemplarium, e.g: SIL20C M20×1.5left-6H, ut accurate notetur.

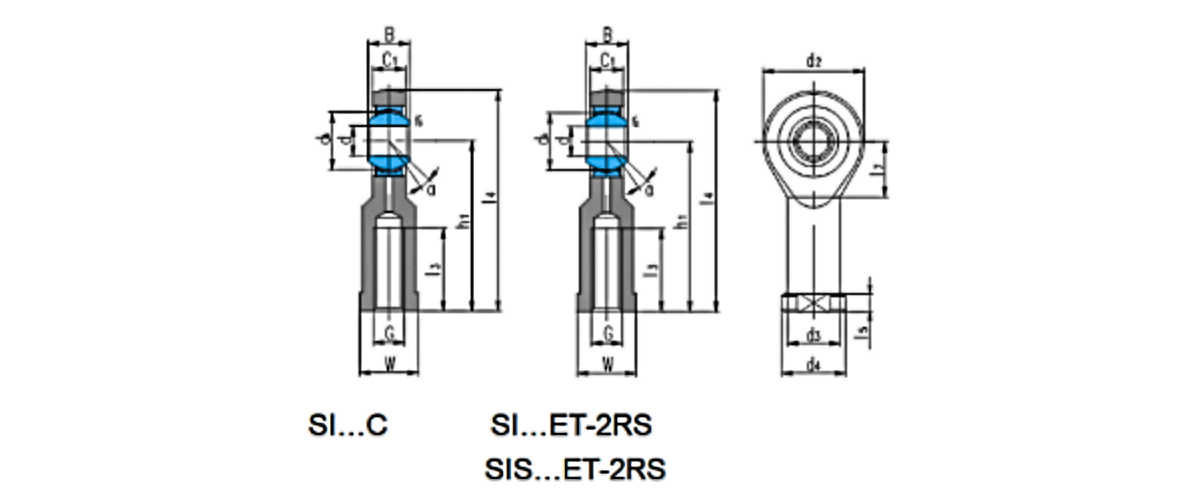

Ferens
numerus 		Dimensiones
mm/inch 		Load Ratings kN Pondus
≈kg
d B dₖ C₁
max 		d₂ G
6H 		h₁ I₃
min 		I₄ I₅ I₇ W d₃ d₄ r
min 		α°
≈ 		Dynamlc Static
SI5C 5 6 10 4.5 21 M5 30 11 40.5 5 11.5 10 10 13 0.3 13 3.6 8.1 0.023
SIEC 6 6 10 4.5 21 MB 30 11 40.5 5 11.5 11 11 13 0.3 13 3.6 B.1 0.023
SIBC 8 8 13 6.5 24 MB 36 15 48 5 13 13 13 16 0.3 15 5.8 12.9 0.040
S10C 10 9 16 7.5 29 M10 43 20 57.5 6.5 15 16 16 19 0.3 12 B.6 17.8 0.065
S12C 12 10 18 8.5 34 M12 50 23 67 7 18 18 19 22 0.3 10 11 24.5 0.108
S15C 15 12 22 10.5 40 M14 61 30 81 8 21 21 21 26 0.3 8 18 36 0.169
SI15ETL-2RS 25
S17C 17 14 25 11.5 46 M16 67 34 90 10 24 27 25 29 0.3 10 22 45 0.235
S117ETL-2RS 32
Si20C 20 16 29 13.5 53 M20×1.5 77 40 103.5 10 25.5 30 28 34 0.3 9 31 60 0.335
SI20ETL-2RS 45
SI25C 25 20 35.5 18 64 M24×2 94 48 128 12 33 36 35 42 0.6 7 51 85 0.665
SI25ETL-2RS 85
SI30C' 30 22 40.7 20 73 M30×2 110 56 146.5 15 37.5 46 42 50 0.6 6 65 110 1.05
SI30ETL-2RS 110
S135ETL-2RS 35 25 47 22 82 M36×3 125 60 168 15 40 55 48 58 0.6 6 140 146 1.50
SI40ETL-2RS 40 28 53 24 92 M39×3 142 85 188 18 47 60 52 65 0.6 7 175 180 2.05
SIS40ETL-2RS 40 28 53 24 92 M42×3 142 85 188 18 47 55 52 65 0.6 7 99 180 1.94
SI45ETL-2RS 45 32 60 28 102 M42×3 145 85 198 20 52 65 58 70 0.8 7 225 240 2.72
SIS45ETL-2R 45 32 60 27 102 M45×3 145 85 198 20 52 60 58 70 0.6 7 127 240 2.61
SI50ETL-2RS 50 35 68 31 112 M45×3 160 68 216 20 57 70 62 75 0.6 6 275 290 3.48
SIS50ETL-2RS 50 35 66 31 112 M52×3 160 69 216 20 57 65 62 75 0.6 6 158 260 3.24
SI60ETL-2RS 60 44 80 39 135 M52×3 175 70 242.5 20 68.5 80 70 88 1 6 430 450 5.55
SIS60ETL-2RS 60 44 80 39 135 M80×4 175 73 242.5 20 68.5 75 70 88 1 6 245 300 4.99
SI70ETL-2RS 70 49 92 43 160 M58×4 200 80 280 20 81 85 80 98 1 6 550 610 8.72
SIS70ETL-2RS 70 49 92 42 160 M72×4 200 80 280 20 81 80 85 98 1 6 313 470 8.33
SI80ETL-2RS 80 55 105 48 180 M84×4 230 85 320 25 91 95 95 110 1 6 705 750 12.9
SISBOETL-2RS 80 55 105 47 180 M80×4 230 85 320 25 91 100 95 110 1 6 400 600 117
