SIBP/SABP Subtilitas Rod finem ferens

Home / Ferens / Virga finem ferens / SIBP/SABP Subtilitas Rod finem ferens

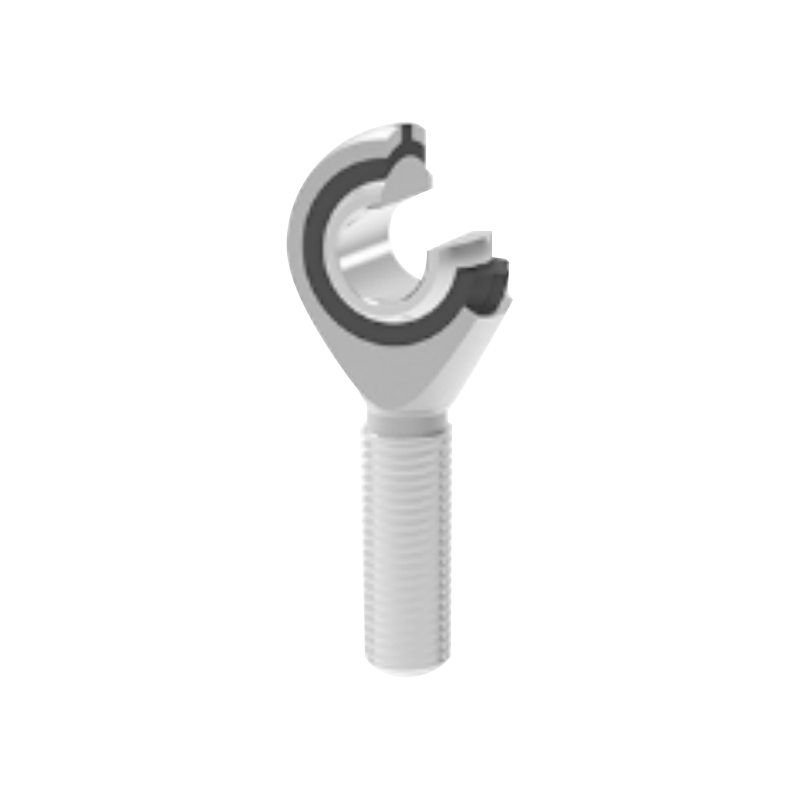

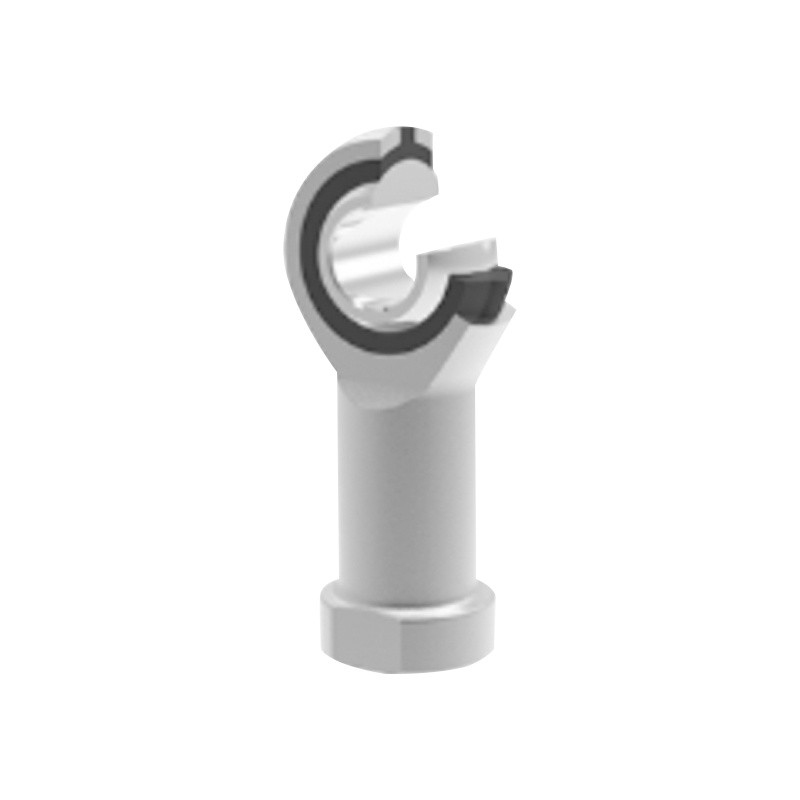

SIBP/SABP Subtilitas Rod finem ferens

Haec series ex compacto, baculo sphaerico gestus sphaericis sui-lubricantis, comprehendens virgam extremitatis corporis, annulum interiorem, et PTFE linerem plasticum. Virga extremitatis corporis fit de chalybe carbonario cum superficie galvanized; interior annulus de ferro ferreo, indurato, chrome ferreo sphaerico patella. Eius superficies labens directe coit cum PTFE plasticae, quae sine operatione gratuita lubricationem obtinet.

Contact Us Nobis Contactus
PRIOR:SIK / SAK Sustentationem Free Self-Lucbricating Rod finem Bearings SEQUENS:SIZP Threaded sui Lubricating Rod finem ferens cum PTFE Insert
  • Descriptio
  • Specificationes
  • Nobis Contactus

· Product Number:
SIBP…N 5～20
SABP…N 5～20
· Palrem PROLAPSIO friction: Steel / PTFE Plastic
· Temperature Range operating: -40℃～＋75℃
· Optiones Customization:
Post Aliquam: Aliquam in pice non-vexillo vel speciali filo subtilitas sustentatur.
Stamina laeva: Exemplar numerus et sequela notae relatorum sinistrae "L" et "sinistrae" includere debent. Exemplum:
Filum internum: SILBP20N M20×1.5 reliquit 6H
Filum externum: SALBP20N M20×1.5 reliquit 6g
Virga finis gestus cum diversis vocibus vel speciali filo praecisione requisita praesto sunt.
Si stamina sinistra sit, exemplum afferens ac stamina notanda cum "L" et "sinistra", hoc modo: SILBP20N M20×1.5 left 6H, SALBP20N M20×1.5 left 6g.

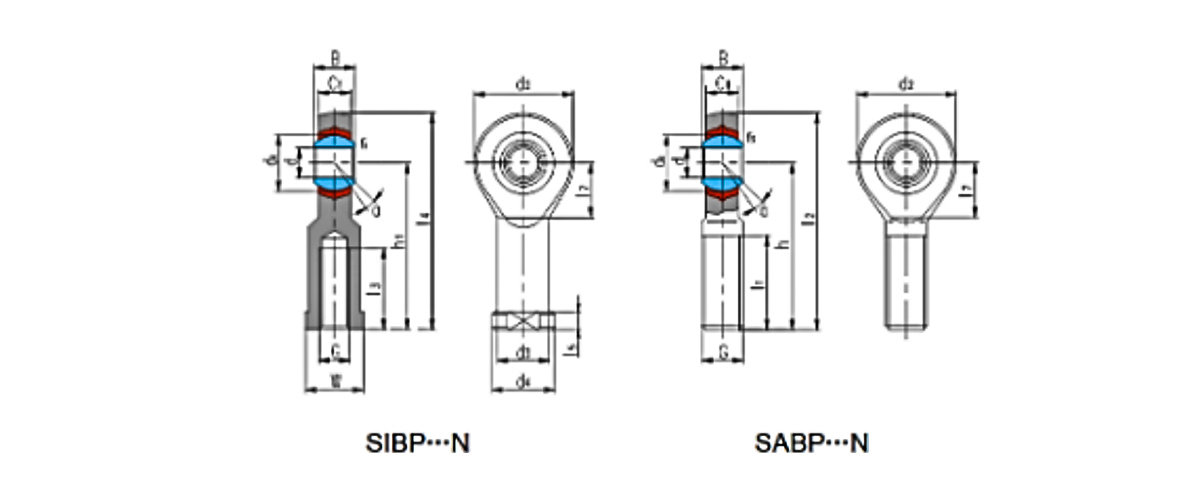

Ferens
numerus 		Dimensiones
mm/inch 		Load ratings
kN 		Pondus
≈kg
d B dₖ C₁
max 		d₂ G
6H 		h₁ I₃
min 		I₄ I₅ I₇ W d₃ d₄ r
min 		α°
≈ 		Dynamic Static
SIBP5N 5 8 11.112 6 16 M5 27 14 35 4 B 9 9 11 0.3 13 3.25 5.3 0.016
SIBP6N 6 9 12.7 6.75 18 M6 30 14 39 5 9 11 10 13 0.3 13 4.25 6.8 0.028
SIBP8N 8 12 15.88 9 22 M8 36 17 47 5 11 14 12.5 16 0.3 14 7.1 114 0.044
SIBP10N 10 14 19.05 10.5 26 M10 43 21 56 6.5 13 17 15 19 0.3 14 9.8 14.3 0.072
SIBP12N 12 16 22.23 12 30 M12 50 24 65 6.5 15 19 17.5 22 0.3 13 13.2 17 0.108
SIBP14N 14 19 25.4 13.5 34 M14 57 27 74 8 16 22 20 25 0.3 16 17 27.5 0.161
SIBP16N 16 21 28.58 15 38 M16 64 33 83 8 17.5 22 22 27 0.3 15 21.4 34.5 0.225
SIBP18N 18 23 31.75 16.5 42 M18×1.5 71 36 92 10 19.5 27 25 31 0.6 15 26 41.5 0.295
SIBP20N 20 25 34.93 18 48 M20×1.5 77 40 100 10 21.5 30 27.5 34 0.6 15 31 50 0.382

Ferens
numerus 		Dimensiones
mm/inch 		Load ratings
KN 		Pondus
≈kg
d B dₖ C₁
max 		d₂ G
6g 		h I₁
min 		I₂ I₇ r
min 		α°
≈ 		Dynamic Static
SABP6N 5 8 11.112 6 16 M5 33 20 41 - 0.3 13 3.25 5.3 0.016
SABP6N 6 9 12.7 6.75 18 M6 36 22 45 - 0.3 13 4.25 6.8 0.026
SABP8N B 12 15.88 9 22 M8 42 25 53 - 0.3 14 7.1 10 0.044
SABP10N 10 14 19.05 10.5 26 M10 48 29 61 - 0.3 14 9.8 12.5 0.072
SABP12N 12 16 22.23 12 30 M12 54 33 69 - 0.3 13 13.2 15 0.108
SABP14N 14 19 25.4 13.5 34 M14 80 38 77 - 0.3 16 17 25.5 0.161
SABP16N 16 21 28.58 15 38 M16 86 40 85 - 0.3 15 21.4 34.5 0.225
SABP18N 18 23 31.75 16.5 42 M18×1.5 72 44 93 23 0.6 15 26 41.5 0.295
SABP20N 20 25 34.93 18 46 M20×1.5 78 47 101 25 0.6 15 31 50 0.382
