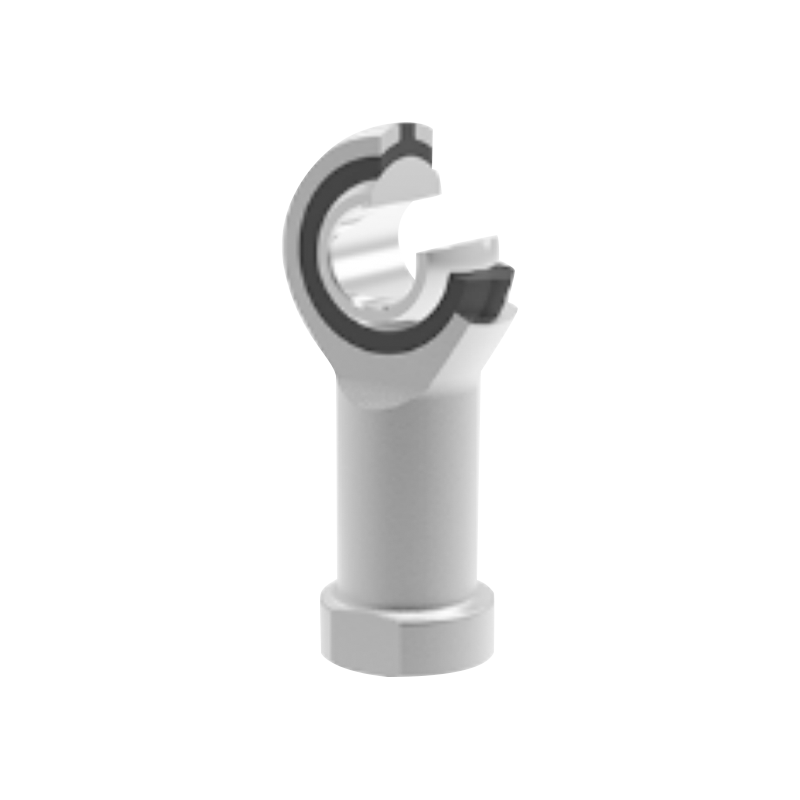

SIZP Threaded sui Lubricating Rod finem ferens cum PTFE Insert

Haec series est baculus sui lubricus finis cum filis internis gerens, turpis tres partes structuram efficiens: baculum extremum corpus, annulum interiorem, et PTFE plasticum liner. Virga extremitatis corporis fit de chalybe carbonario cum superficie galvanized; anulus interior factus est chromium altum carbonem ferens chalybem, exstinguendo induratum, ac deinde sphaericum inauratum cum chromate duro ut egregium indumentum resistat. Eius consilium permittit ad operationem liberam sustentationem totaliter.

Nobis Contactus

PRIOR:SIBP/SABP Subtilitas Rod finem ferens SEQUENS:SAZP summus euismod Threaded Rod finem ferens

Descriptio
Specificationes
Nobis Contactus

· Product Number: SIZP…N 4.83～19.05
· Palrem PROLAPSIO friction: Steel / PTFE Plastic
· Temperature Range operating: -40℃～＋75℃
· Optiones Customization:
Post Sagaciter: Custom products with different thread accuracy grades are available upon request.
Sinistra manu Thread: Stamina manu sinistra exempla et notae "L" et "LH" includere debent, exempli gratia: SILZP12N 1/2-20 UNF 2B LH

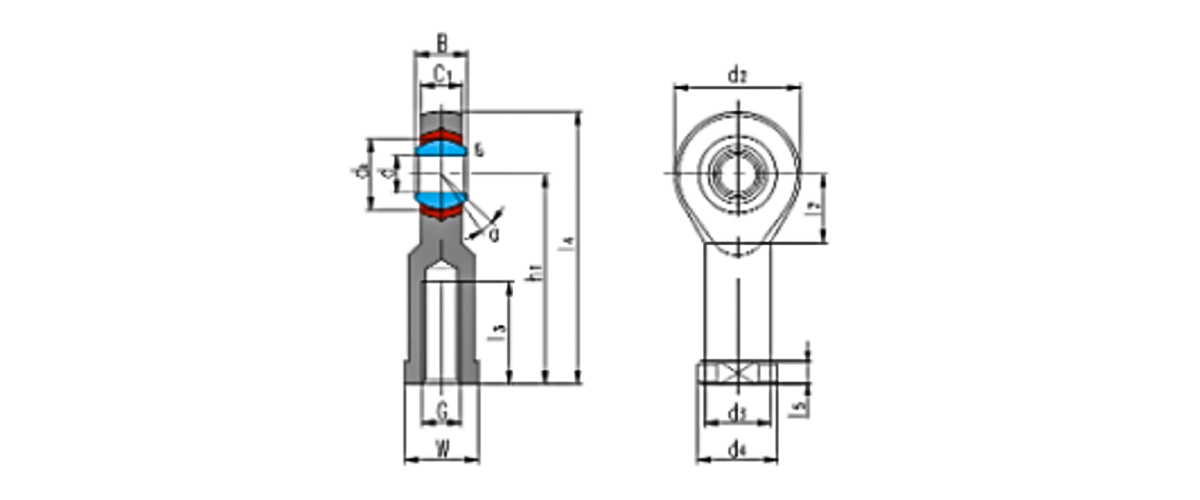

Ferens numerus	Dimensiones mm/inch																Load ratings kN		Pondus ≈kg
Ferens numerus	d	B	dₖ	C₁ max	d₂	G UNF-2B	h₁	I₃ min	I₄	I₅	I₇	W	d₃	d₄	r min	α° ≈	Dynamic	Static	Pondus ≈kg
SIZP4N	4.83	7.92	11.1	6.35	15.88	10-32	26.97	14.27	34.83	4.75	9	7.92	7.54	10.31	0.3	10	3.3	5.38	0.015
SIZP4N	0.19	0.312	0.437	0.25	0.625	10-32	1.082	0.582	1.375	0.187	0.354	0.312	0.297	0.408	0.012	10	3.3	5.38	0.015
SIZP6N	6.35	9.53	12.7	7.14	19.05	1/4-28	33.32	19.05	42.85	4.75	10.5	9.53	9.15	11.91	0.3	13	6.8	10.9	0.025
SIZP6N	0.25	0.375	0.5	0.281	0.75	1/4-28	.312	0.75	1.687	0.187	0.413	0.375	0.36	0.489	0.012	13	6.8	10.9	0.025
SIZP7N	7.94	11.10	15.88	8.74	22.23	5/16-24	34.93	19.05	46.02	4.75	117	11.1	0.72	2.70	0.3	10	7.6	12.2	0.036
SIZP7N	0.3125	0.437	0.625	0.344	0.875	5/16-24	1.375	0.75	1.812	0.187	0.481	0.437	0.422	0.5	0.012	10	7.6	12.2	0.036
SIZP9N	9.53	12.70	18.26	10.31	25.40	3/8-24	41.28	23.80	53.98	6.35	12.3	14.27	3.89	17.45	0.6	9	11.9	18.2	0.061
SIZP9N	0.375	0.5	0.719	0.406	1	3/8-24	1.625	0.937	2.125	0.25	0.484	0.582	0.547	0.687	0.024	9	11.9	18.2	0.061
SIZP11N	11.1	14.27	20.62	11.1	28.58	7/16-20	46.02	26.97	60.33	6.35	14	5.88	5.49	9.05	0.6	11	17.4	23.8	0.081
SIZP11N	0.4375	0.582	0.812	0.437	1.125	7/16-20	1.812	1.082	2.375	0.25	0.551	0.625	0.61	0.75	0.024	11	17.4	23.8	0.081
SIZP12N	12.7	15.88	23.81	12.7	33.32	1/2-20	53.98	30.15	70.64	6.35	16.2	9.05	8.67	22.23	0.6	9	19.9	28.6	0.133
SIZP12N	0.5	0.625	0.937	0.5	1.312	1/2-20	2.125	1.187	2.781	0.25	0.638	0.75	0.735	0.875	0.024	9	19.9	28.6	0.133
SIZP15N	15.88	19.05	28.58	14.27	38.10	5/8-18	63.50	38.10	82.55	7.92	18.2	22.23	21.84	25.40	0.6	11	22.9	38.9	0.190
SIZP15N	0.625	0.75	1.125	0.562	1.5	5/8-18	2.5	1.5	3.25	0.312	0.717	0.875	0.86	1	0.024	11	22.9	38.9	0.190
SIZP19N	19.05	22.23	33.32	17.45	44.45	3/4-16	73.03	44.45	95.25	7.92	20.9	25.4	25.02	28.58	0.6	10	30.2	48.5	0.285
SIZP19N	0.75	0.875	1.312	0.687	1.75	3/4-16	2.875	1.75	3.75	0.312	0.823	1	0.985	1.125	0.024	10	30.2	48.5	0.285
