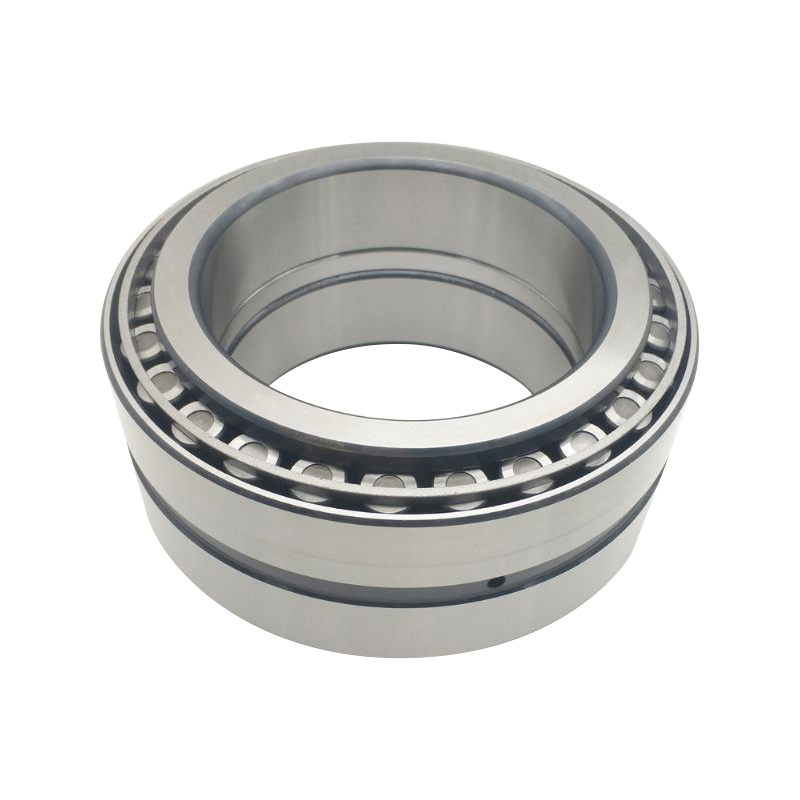

BT2B 332504/HA2 -Double Row Tapered Rollerus Bearings

Duplex ordo cylindrus acuminati gestus speciales sunt typum gerendi machinatum ad simul sustinendum onera axialia gravia radialia et bidirectionalia. Solutio altae rigiditatis et magnae capacitatis applicationum praebent sicut gearboxes, mola volventia, machinas taediosas cuniculi. Unis ordinis gestus comparati, rigorem superiorem, longiorem vitam, attritionem inferiorem praebent

PREV：No previous product DEINDE：(XXX)CII Unius Row Tapered Roller Ferens

Descriptio
Specifications
Contact Us

Key Features et Commoda
· Gravis baiulans capacitatem: Lorem ad alta onera axialia radialia et bidirectionalia sustinenda.
· Rigiditas ( firmitas ) ; Dispositio rigidam praebet, quae ad subtilitatem applicationes utilis est.
· Axial Location / Positioning: Scapus axialiter utrinque collocat intra alvi axialem vel sub preload statuto.
·Vita servitii longi: Utitur profiles optimized raceway ad emendandum onus distributionis, accentus minuendi, et augendae induendi resistentiam.
· Reducitur frictio et sonitus: Optimized cylindrus finis consiliorum et superficies faciliorem efficit formationem ducatus cinematographici, quae frictionem minuit et sonum et vibrationem deprimere potest.
· Reliability: Fiduciam operationalem auget etiam sub difficilibus condicionibus ac maiorem sensum ad misalignment offert.

Agros Application (Applications)
·In fodienda industria adhibentur ad armamentarium levandum et cuniculi effossiones.
· Molendina Rolling etiam altam postulant pro duplici ordine cylindro gestus acuminatos.

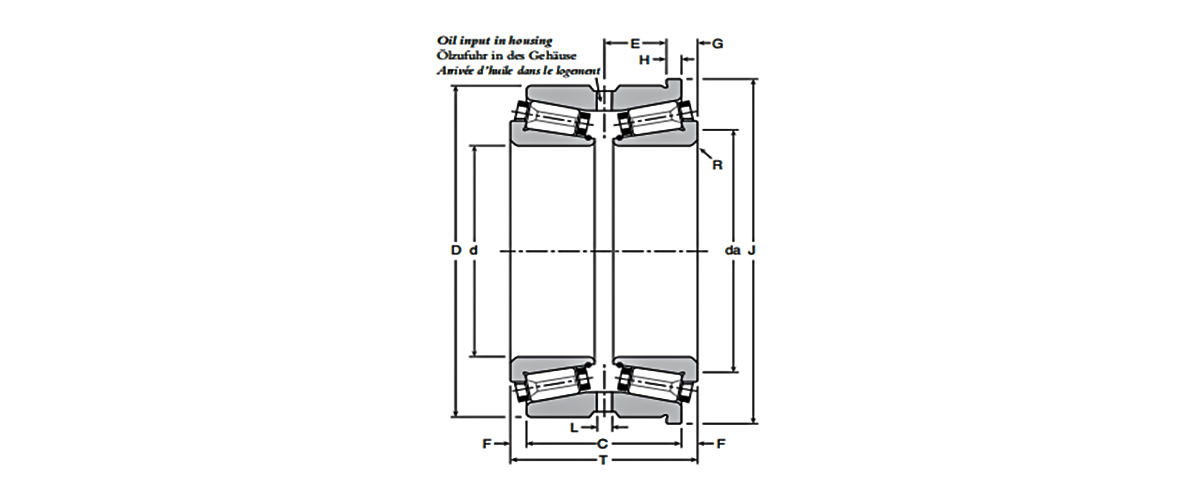

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					Dynamic	Static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
228.6	488.95		152.4	254	2828.7	4050			205	331945 supportantes
260	480		220	284	3897	6615			210	BT2B 328130 Bear
260.35	422.275		139.7	178.592	2016	3645			86.5	BT2B 328187/HA2 Ferens
300.038	422.275		136.525	174.625	1959.3	4275			71.5	BT2B 332504/HA2 Ferens
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1 Ferens
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Ferens
340	460		128	160	1976.4	4410			71	BT2B 332830 Bear
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Ferens
355.6	501.65		107.95	155.575	1778.4	3825			87	BT2B 332506/HA2 Ferens
360	480		128	160	1989.9	4500			73	BT2B 332831 Bear
368.249	523.875		169.862	214.312	3042	6750			140	BT2B 332603/HA1 Ferens
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Bearing
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Bear
400	540		135	170	2503.8	5670			106	BT2-8143/HA1 Ferens
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Bear
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 supportantes
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1 Ferens
431.8	571.5		111.125	155.575	1030.5	4590			100	BT2B 332604/HA1 Ferens
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176
479.425	679.45		222.25	276.225	4509	11430			302	331657 supportantes
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Ferens
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1 Ferens
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Ferens
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Bearing
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 supportantes
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Ferens
609.6	820		158.75	206.375	3618	9540			292	331500 Pomifer
711.2	914.4		139.7	190.5	3420	8685			265	BT2B 328028/HA1 Ferens
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Bear
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1 Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
762	965.2		133.35	187.325	3222	8820			290	331780 A Bearing
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Ferens
914.4	1066.8		101.6	139.7	2340	7200			190	BT2B 332501/HA5 Ferens
1160	1540		290	400	12780	34200			1900	BT2B 332780/HA5 Ferens
1250	1500		190	250	6633	20160			795	BT2B 328339/HA4 Ferens
240	480	200		220	3253.5	4950			183	BT2B 332931 Bear
300	440	105		105	968.4	1836			48.5	332168 Ferens
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 supportantes
303.212	495.3	263.525		263.525	4427.1	8820			212	BT2B 332685/HA1 Ferens
305.033	560	200		200	1509.3	4770			200	332068 supportantes
305.033	560	200		199.263	1509.3	4770			205	BT2B 334087/HA3 Ferens
305.07	500	200		200	2460.6	4680			150	332169 A Bear
305.07	500	200		200	2460.6	4680			150	332169 AA
305.07	524	200		200	2460.6	4680			180	BT2B 334110/HA3 Ferens
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1 Ferens
320	515	160		160	2142.9	3960			160	BT2-8017/HA3 Ferens
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1 Ferens
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 A Bear
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Bear
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1 Ferens
346.075	488.95	95.25		104.775	607.5	2475			62	BT2B 332913/HB1 supportantes
360	560	160		160	2300.4	4185			140	BT2-8000/HA3 Ferens
380	560	200		200	2691.9	5895			165	BT2-8009/HA3 Ferens
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Bear
384.175	546.1	193.675		193.675	3351.6	7470			166	BT2B 328580/HA1 Ferens
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Bear
385.762	514.35	152.4		152.4	2061	5400			92	BT2B 328035/HA1 Ferens
386	574	220		220	2670.3	5895			185	BT2-8010/HA3VA901 supportantes
390	546.1	141.288		141.288	2105.1	4590			102	BT2B 328705/HA1 Ferens
390	570	200		200	2670.3	5895			170	BT2B 328896/HA3 Bearing

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
390	590	200		200	2670.3	5895			200	BT2B 328934/HA3 Ferens
390	548	180		180	2295	5265			155	BT2B 334045/HA3 Ferens
400	650	240		240	3519	7335			290	332167 Ferens
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3 Ferens
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1 Ferens
406.4	546.1	138.113		138.113	1980	4590			89	BT2B 331840 G/HA1C150 Ferens
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Ferens
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 supportantes
408.4	546.1	125		150	1766.7	4275			99	BT2B 328466/HA1 Ferens
408.4	546.1	98		120	1442.7	3105			76.5	BT2B 328874/HA1 Ferens
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 supportantes
415.925	590.55	209.55		209.55	3757.5	8685			192	BT2B 328283/HA1 Ferens
420	620	200		200	2673	6480			210	BT2-8016/HA3 Ferens
430	535	84		84	972	2700			44.5	BT2B 334013/HA1 Ferens
445	620	160		160	1908	4590			135	BT2B 334069/HA3 Ferens
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Ferens
447.675	635	223.838		223.838	3960	9900			236	331562 supportantes
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 B/HB1
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Ferens
450	595	178		178	2852.1	7335			140	BT2B 328523/HA1 Ferens
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Ferens
460	680	180		180	2826	6255			250	BT2B 334030/HA1 Ferens
464	615	136		150	1944	5265			133	BT2-8215 supportantes
482	640	160		160	1584	4680			145	BT2B 334112/HA3 Ferens
482.6	733.425	190		190	2574	7470			293	BT2-8142/HA3 Ferens
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Bear
500	730	280		280	5940	14040			420	331676 A Bearing
501.65	711.2	250.825		250.825	4950	12330			330	331182 supportantes
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Bear
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662 B/HB1

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662/HB1 Ferens
536.575	761.873	269.875		269.875	5643	14400			410	331682 Ferens
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Ferens
560	820	242		242	4509	10260			425	BT2B 332626/HA7 Ferens
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 AG/HA1 Ferens
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1 Ferens
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854/HA1 Ferens
580	830	280		280	6138	14940			515	331677 supportantes
609.6	787.4	171.45		171.45	3618	9540			218	BT2B 331858/HA1 Ferens
609.6	820	171.45		171.45	3618	9540			265	BT2B 332424/HA3 Ferens
635	939.8	304.8		304.8	6039	14940			720	331555 B Ferens
650	1030	270		270	7920	16470			900	BT2B 328306/HA4 Ferens
660.4	812.8	176.212		176.212	3222	10080			195	331198 supportantes
690	980	355		355	9204.3	22500			890	BT2-8164/HA4 Ferens
800	1260	375		375	13230	30150			1850	BT2B 334032/HA4 Ferens
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 supportantes
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 supportantes
110	180		76	95	400	730			8.63	352122 supportantes
120	200		90	110	508	910			11.7	352124 supportantes
130	200		80	102	450	800			9.72	352026 supportantes
130	210		90	110	540	1000			13.5	352126 supportantes
140	210		82	104	480	830			10.9	352028 supportantes
140	225		90	115	560	1100			15.5	352128 supportantes
150	225		86	110	500	900			14.5	352030 supportantes
150	250		112	138	778	1560			25.8	352130 supportantes
160	240		90	116	700	1300			16.5	352032 supportantes
160	270		120	150	990	2160			34.9	352132 supportantes
170	260		100	128	830	1800			21	352034 supportantes
170	280		120	150	1100	2400			35.6	352134 supportantes
180	280		110	142	1005	2340			27.9	352036 supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
180	300		134	164	1290	2500			43.2	352136 supportantes
190	290		110	142	1005	2340			28.8	352038 supportantes
190	320		130	170	1160	2410			50.4	352138 supportantes
200	310		120	154	1500	2900			41.9	352040 supportantes
200	340		150	184	1600	3300			61.5	352140 supportantes
220	340		128	166	1210	2500			42.7	352044 supportantes
220	370		150	195	1700	3200			76.3	352144 supportantes
240	360		128	166	1430	3200			52.8	352048 supportantes
240	400		163	210	2000	4100			98.1	352148 supportantes
260	400		146	190	1530	3630			75.6	352052 supportantes
260	440		180	225	2200	4600			126	352152 supportantes
280	420		146	190	1820	4050			81.3	352056 supportantes
300	460		168	220	2200	5300			117	352060 supportantes
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Ferens
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Ferens
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT supportantes
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT supportantes
31.75	72	26	46.5	51.75				9600	0.75	100031X/100072PT Ferens
31.75	76.2	26	46.5	51.75				9600	0.75	100031X/100076XPT Ferens
31.75	80	26	46.5	51.75				9600	0.75	100031X/100080PT Ferens
33.338	66.675	23.5	42.48	47.24				10400	0.63	80033X/80066XPT supportantes
33.338	68	23.5	42.48	47.24				10400	0.63	80033X/80068PT Ferens
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Ferens
34.925	76.2	26	46.5	51.75				9600	0.75	100034X/100076XPT Ferens
34.925	80	26	46.5	51.75				9600	0.75	100034X/100080PT Ferens
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT supportantes
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Ferens
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Ferens
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT Ferens
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Ferens
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT supportantes
38.1	80	26	45.5	51.25				8800	0.92	101038X/101080PT Ferens
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT supportantes
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Ferens
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Ferens
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Ferens
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT Ferens
41.275	80	26	45.5	51.25				8800	0.92	101041X/101080PT Ferens
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Ferens
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Ferens
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Ferens
44.45	88.9	28	55.66	58.83				8200	1.07	119044X/119088XPT supportantes
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT supportantes
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT supportantes
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Ferens
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Ferens
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT supportantes
50	90	29	51.3	57.65				7400	1.17	111050/111090PT supportantes
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT supportantes
50	96.838	29.5	54	59.5				6900	1.63	110050/10096XPT Ferens
50	98.425	29.5	54	59.5				6900	1.63	110050/10098XPT supportantes
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Ferens
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT supportantes
50.8	96.838	29.5	54	59.5				6900	1.63	110050X/10096XPT Ferens
50.8	98.425	29.5	54	59.5				6900	1.63	110050X/10098XPT supportantes
50.8	100	29.5	54	59.5				6900	1.63	110050X/110100PT Ferens
53.975	96.838	29.5	54	59.5				6900	1.63	110053X/10096XPT Ferens
53.975	98.425	29.5	54	59.5				6900	1.63	110053X/10098XPT Ferens
53.975	100	29.5	54	59.5				6900	1.63	110053X/110100PT Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
55	96.838	29.5	54	59.5				6900	1.63	110055/10096XPT Ferens
55	98.425	29.5	54	59.5				6900	1.63	110055/10098XPT Ferens
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Ferens
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/10096XPT Ferens
57.15	98.425	29.5	54	59.5				6900	1.63	110057X/10098XPT Ferens
57.15	100	29.5	54	59.5				6900	1.63	110057X/110100PT Ferens
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Ferens
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT supportantes
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Ferens
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT Ferens
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT supportantes
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT supportantes
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Ferens
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT Ferens
60	120	32	59.88	65.44				5700	2.45	130060/130120PT supportantes
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Ferens
60.325	100	26.5	46.88	52.44				6600	1.38	113060X/113100PT supportantes
60.325	101.6	26.5	46.88	52.44				6600	1.38	113060X/113101XPT supportantes
63.5	110	33	60.3	66.65				6200	1.94	120063X/120110PT Ferens
63.5	120	32	59.88	65.44				5700	2.45	130063X/130120PT supportantes
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Ferens
65	120	32	59.88	65.44				5700	2.45	130065/130120PT supportantes
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Ferens
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT supportantes
69.85	120	32	59.88	65.44				5700	2.32	130069X/130120PT supportantes
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Ferens
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Ferens
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT supportantes
70	120	32	59.88	65.44				5700	2.32	130070/130120PT supportantes
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Ferens
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT supportantes
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT supportantes
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT supportantes
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Ferens
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Ferens
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT Ferens
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT Ferens
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT supportantes
82.55	140	38.5	69.14	77.07				4900	3.68	140082X/140140PT Ferens
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT supportantes
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Ferens
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT supportantes
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Ferens
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT supportantes
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT supportantes
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT supportantes
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT supportantes
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Ferens
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT supportantes
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Ferens
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Ferens
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT supportantes
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT Ferens
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Ferens
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT Ferens
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT Ferens
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Ferens
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT supportantes
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT supportantes
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Ferens
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Ferens
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT supportantes
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT supportantes
98.425	152.4	42	75.8	83.9				4300	4.3	160098X/160152XPT supportantes
98.425	158.75	42	78.5	83.9				4300	4.3	160098X/160158XPT supportantes
98.425	160	42	78.5	83.9				4300	4.3	160098X/160160PT Ferens
98.425	161.925	42	78.5	83.9				4300	4.3	160098X/160161XPT supportantes
100	170	46	84	92				3900	7.67	180100/180170PT Ferens
100	180	46	84	92				3900	7.67	180100/180180PT Ferens
100	180.975	46	84	92				3900	7.67	180100/180180XPT Ferens
100	190	46	84	92				3900	9.58	180100/180190PT Ferens
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT Ferens
101.6	170	46	84	92				3900	7.67	180101X/180170PT Ferens
101.6	180	46	84	92				3900	7.67	180101X/180180PT Ferens
101.6	180.975	46	84	92				3900	7.81	180101X/180180XPT Ferens
101.6	190	46	84	92				3900	9.56	180101X/180190PT Ferens
105	170	46	84	92				3900	7.67	180105/180170PT Ferens
105	180	46	84	92				3900	7.67	180105/180180PT Ferens
105	180.975	46	84	92				3900	7.58	180105/180180XPT Ferens
105	190	46	84	92				3900	9.38	180105/180190PT Ferens
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT Ferens
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT Ferens
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT Ferens
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT Ferens
111.125	200.025	50	82.6	95.3				3600	8.68	181111X/181200XPT Ferens
115	165	31	55	60				3900	2.85	105115/105165PT Ferens
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT Ferens
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT Ferens
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT supportantes
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT Ferens
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Ferens
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT Ferens
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT Ferens
120	165	31	55	60				3900	2.85	105120/105165PT Ferens
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Ferens
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT Ferens
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Ferens
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Ferens
127	175	31	55	60				3900	2.85	109127X/109175PT Ferens
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT Ferens
127	200.025	42	85.74	93.67				3400	7.42	164127X/164200XPT supportantes
127	215	51	92	101				3100	11.05	200127X/200215PT Ferens
127	215.9	51	92	101				3100	11.05	200127X/200215XPT Ferens
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT Ferens
133.35	200.025	42	85.74	93.67				3400	7.42	164133X/164200XPT supportantes
133.35	215	51	92	101				3100	11.05	200133X/200215PT Ferens
133.35	215.9	51	92	101				3100	10.55	200133X/200215XPT Ferens
136.525	215	51	92	101				3100	11.05	200136X/200215PT Ferens
136.525	215.9	51	92	101				3100	10.25	200136X/200215XPT Ferens
139.7	215	51	92	101				3100	11.05	200139X/200215PT Ferens
139.7	215.9	51	92	101				3100	11.05	200139X/200215XPT Ferens
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT supportantes
140	200	42	73	80.15				3100	6.38	161140/161200PT Ferens
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT supportantes
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT Ferens
142.875	200.025	42	73	80.15				3100	6.38	161142X/161200XPT supportantes
145	241.3	59	104	115				2900	17.15	240145/240241XPT supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
145	256	51	92	101				2700	11.83	203145/203256PT Ferens
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT supportantes
150	210	42	76	84				3000	9.1	163150/163210PT Ferens
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT supportantes
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT supportantes
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT supportantes
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT supportantes
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT Ferens
156	235	51	92	101				2700	11.83	203156/203235PT Ferens
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT Ferens
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT Ferens
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT supportantes
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT supportantes
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT supportantes
185	258	50	90	100				2500	12	187185/187258PT Ferens
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT Ferens
190.5	290	52	96	105				2200	14.2	206190X/206290PT Ferens
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Ferens
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT supportantes
210	290	52	96	105				2200	13.1	206210/206290PT Ferens
210	310	72	121.08	138.54				2100	25	283210/283310PT supportantes
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT supportantes
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT supportantes
230	330	55	90.24	106.12				1900	21	244230X/244330PT Ferens
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT supportantes
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT supportantes
260	385	66	114.34	130.12				1700	32	382260/382385PT Ferens
25	52		36.5	43				13300	0.46	74025/74052GUD supportantes
30	62		42.5	51				11600	0.64	70030/70062GUD supportantes
30	66.675		42.48	52				10400	0.78	80030/80066XGUD supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
30	68		42.48	52				10400	0.78	80030/80068GUD supportantes
32	72		46.5	57				9600	0.825	100031X/100072GUD supportantes
32	76.2		46.5	57				9600	0.825	100031X/100076XGUD supportantes
32	80		46.5	57				9600	0.825	100031X/100080GUD Ferens
33	66.675		42.48	52				10400	0.78	80033X/80066XGUD supportantes
33	68		42.48	52				10400	0.78	80033X/80068GUD Ferens
35	72		46.5	57				9600	0.825	100034X/100072GUD supportantes
35	76.2		46.5	57				9600	0.825	100034X/100076XGUD supportantes
35	80		46.5	57				9600	0.825	100034X/100080GUD supportantes
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Ferens
35	68		42.48	52				10400	0.75	80035/80068GUD supportantes
35	72		46.5	57				9600	0.825	100035/100072GUD Ferens
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Ferens
35	80		46.5	57				9600	0.825	100035/100080GUD Ferens
36	72		36.5	42				9600	0.58	102036/102072GUD supportantes
38	76		45.5	57				8800	0.85	101038X/101076GUD supportantes
38	76.2		45.5	57				8800	0.85	101038X/101076XGUD supportantes
38	80		45.5	57				8800	0.85	101038X/101080GUD supportantes
40	76		45.5	57				8800	0.85	101040/101076GUD supportantes
40	76.2		45.5	57				8800	0.85	101040/101076XGUD supportantes
40	80		45.5	57				8800	1.025	101040/101080GUD supportantes
40	85		48.66	55				8200	1.19	112040/112085GUD supportantes
41	76		45.5	57				8800	0.85	101041X/101076GUD supportantes
41	76.2		45.5	57				8800	0.85	101041X/101076XGUD supportantes
41	80		45.5	57				8800	0.85	101041X/101080GUD supportantes
41	85		48.66	55				8200	1.07	112041X/112085GUD supportantes
44	90		51.3	64				7400	1.33	111044X/111090GUD supportantes
44	93.266		51.3	64				7400	1.33	111044X/111093XGUD supportantes
44	85		48.66	55				8200	1.07	112044X/112085GUD supportantes
44	85		55.66	62				8200	1.17	119044X/119085GUD Bear

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
44	88.9		55.66	62				8200	1.17	119044X/119088XGUD supportantes
45	85		48.66	55				8200	1.07	112045/112085GUD supportantes
45	85		55.66	62				8200	1.17	119045/119085GUD supportantes
45	88.9		55.66	62				8200	1.17	119045/119088XGUD supportantes
50	90		51.3	64				7400	1.33	111050/111090GUD supportantes
50	93.266		51.3	64				7400	1.33	111050/111093XGUD supportantes
50	96.838		54	65				6900	1.945	110050/10096XGUD supportantes
50	98.425		54	65				6900	1.945	110050/10098XGUD supportantes
50	100		54	65				6900	1.945	110050/110100GUD supportantes
51	90		51.3	64				7400	1.33	111050X/111090GUD supportantes
51	96.838		54	65				6900	1.945	110050X/10096XGUD supportantes
51	98.425		54	65				6900	1.945	110050X/10098XGUD supportantes
51	100		54	65				6900	1.945	110050X/110100GUD supportantes
54	96.838		54	65				6900	1.945	110053X/10096XGUD supportantes
54	98.425		54	65				6900	1.945	110053X/10098XGUD supportantes
54	100		54	65				6900	1.945	110053X/110100GUD Ferens
55	96.838		54	65				6900	1.945	110055/10096XGUD supportantes
55	98.425		54	65				6900	1.945	110055/10098XGUD Ferens
55	100		54	65				6900	1.765	110055/110100GUD Ferens
57	96.838		54	65				6900	1.945	110057X/10096XGUD supportantes
57	98.425		54	65				6900	1.945	110057X/10098XGUD supportantes
57	100		54	65				6900	1.945	110057X/110100GUD supportantes
57	100		46.88	58				6600	1.825	113057X/113100GUD supportantes
57	101.6		46.88	58				6600	1.825	113057X/113101XGUD supportantes
57	110		60.3	73				6200	2.39	120057X/120110GUD Ferens
57	112.712		60.3	73				6200	2.39	120057X/120112XGUD Ferens
60	100		46.88	58				6600	1.825	113060/113100GUD supportantes
60	101.6		46.88	58				6600	1.825	113060/113101XGUD supportantes
60	110		60.3	73				6200	2.39	120060/120110GUD Ferens
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
60	120		59.88	71				5700	2.86	130060/130120GUD supportantes
60	127		59.88	71				5700	2.86	130060/130127GUD supportantes
60	100		46.88	58				6600	1.825	113060X/113100GUD supportantes
60	101.6		46.88	58				6600	1.825	113060X/113101XGUD supportantes
64	110		60.3	73				6200	2.21	120063X/120110GUD supportantes
64	120		59.88	71				5700	2.86	130063X/130120GUD supportantes
64	127		59.88	71				5700	2.86	130063X/130127GUD supportantes
65	120		59.88	71				5700	2.86	130065/130120GUD supportantes
65	127		59.88	71				5700	2.86	130065/130127GUD supportantes
70	112.712		60.3	73				5800	2.015	124069X/124112XGUD supportantes
70	120		59.88	71				5700	2.61	130069X/130120GUD supportantes
70	120		73.12	89				5700	2.73	135069X/135120GUD supportantes
70	127		59.88	71				5700	2.86	130069X/130127GUD supportantes
70	112.712		60.3	73				5800	2.015	124070/124112XGUD supportantes
70	120		59.88	71				5700	2.64	130070/130120GUD supportantes
70	127		59.88	71				5700	2.86	130070/130127GUD supportantes
73	120		49.7	64				5500	2.35	123073X/123120GUD supportantes
73	120.65		49.7	64				5500	2.35	123073X/123120XGUD supportantes
73	121.444		49.7	64				5500	2.35	123073X/123121XGUD supportantes
73	123.825		49.7	64				5500	2.35	123073X/123123XGUD supportantes
75	120		49.7	64				5500	2.25	123075/123120GUD supportantes
75	120.65		49.7	64				5500	2.25	123075/123120XGUD supportantes
75	121.444		49.7	64				5500	2.25	123075/123121XGUD supportantes
75	123.825		49.7	64				5500	2.25	123075/123123XGUD supportantes
75	127		60.5	73				5300	3.23	133075/133127GUD supportantes
75	130		60.5	73				5300	3.23	133075/133130GUD supportantes
75	133.35		60.5	73				5300	3.23	133075/133133XGUD supportantes
75	136.525		60.5	73				5300	3.23	133075/133136XGUD supportantes
76	120		49.7	64				5500	2.25	123076X/123120GUD supportantes
76	120.65		49.7	64				5500	2.25	123076X/123120XGUD supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
76	123.825		49.7	64				5500	2.25	123076X/123123XGUD Ferens
76	127		60.5	73				5300	3.23	133076X/133127GUD supportantes
76	130		60.5	73				5300	3.23	133076X/133130GUD supportantes
76	133.35		60.5	73				5300	3.23	133076X/133133XGUD supportantes
76	136.525		60.5	73				5300	3.23	133076X/133136XGUD supportantes
78	120		49.7	64				5500	2.25	123077X/123120GUD supportantes
78	120.65		49.7	64				5500	2.25	123077X/123120XGUD supportantes
78	121.444		49.7	64				5500	2.25	123077X/123121XGUD supportantes
78	123.825		49.7	64				5500	2.25	123077X/123123XGUD supportantes
80	140		69.14	85				4900	4.345	140080/140140GUD supportantes
81	133.35		58.12	74				4900	2.25	126080X/126133XGUD supportantes
83	133.35		58.12	74				4900	2.25	126082X/126133XGUD Ferens
83	136.525		58.12	74				4900	2.25	126082X/126136XGUD Ferens
83	140		69.14	85				4900	4.145	140082X/140140GUD supportantes
84	133.35		58.12	74				4900	2.4	126084X/126133XGUD Ferens
84	136.525		58.12	74				4900	2.4	126084X/126136XGUD Ferens
85	140		69.14	85				4900	3.945	140085/140140GUD supportantes
85	170		89	106				4200	8.345	210085/210170GUD Ferens
86	133.35		58.12	74				4900	2.4	126085X/126133XGUD supportantes
86	136.525		58.12	74				4900	2.4	126085X/126136XGUD Ferens
89	133.35		58.12	74				4900	2.4	126088X/126133XGUD Ferens
89	136.525		58.12	74				4900	2.4	126088X/126136XGUD Ferens
90	133.35		60.12	76				4800	3.9	117090/117133XGUD supportantes
90	170		89	106				4200	8.345	210090/210170GUD Ferens
90	150		62	75				4400	4.625	131090/131150GUD supportantes
90	152.4		62	75				4400	4.625	131090/131152XGUD supportantes
90	158.75		62	75				4400	4.625	131090/131158XGUD supportantes
90	152.4		75.8	92				4300	4.95	160090/160152XGUD supportantes
90	158.75		75.8	92				4300	4.95	160090/160158XGUD supportantes
90	160		75.8	92				4300	4.95	160090/160160GUD supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD supportantes
92	150		62	75				4400	4.625	131092X/131150GUD supportantes
92	152.4		62	75				4400	4.625	131092X/131152XGUD supportantes
92	158.75		62	75				4400	4.625	131092X/131158XGUD supportantes
94	152.4		62	75				4400	4.625	131093X/131152XGUD Ferens
94	150		62	75				4400	4.625	131093X/131150GUD supportantes
94	158.75		62	75				4400	4.625	131093X/131158XGUD Ferens
95	150		62	75				4400	4.625	131095/131150GUD supportantes
95	152.4		62	75				4400	4.505	131095/131152XGUD supportantes
95	158.75		62	75				4400	4.625	131095/131158XGUD supportantes
95	170		89	106				4200	8.345	210095/210170GUD Ferens
97	152.4		62	75				4400	4.345	131097/131152XGUD supportantes
97	150		62	75				4400	4.625	131097/131150GUD supportantes
97	158.75		62	75				4400	4.625	131097/131158XGUD supportantes
98	152.4		75.8	92				4300	4.95	160098X/160152XGUD supportantes
98	158.75		75.8	92				4300	4.95	160098X/160158XGUD supportantes
98	160		75.8	92				4300	4.95	160098X/160160GUD supportantes
98	161.925		75.8	92				4300	4.95	160098X/160161XGUD supportantes
100	170		84	100				3900	11	180100/180170GUD Ferens
100	180		84	100				3900	9.1	180100/180180GUD Ferens
100	180.975		84	100				3900	11	180100/180180XGUD Ferens
100	190		84	100				3900	11	180100/180190GUD Ferens
102	165.1		67.96	87				3900	9.16	141101X/141165XGUD Ferens
102	170		84	100				3900	11	180101X/180170GUD Ferens
102	180		84	100				3900	11	180101X/180180GUD supportantes
102	180.975		84	100				3900	9.28	180101X/180180XGUD Ferens
102	190		84	100				3900	10.96	180101X/180190GUD Ferens
105	170		84	100				3900	11	180105/180170GUD Ferens
105	180		84	100				3900	11	180105/180180GUD supportantes
105	180.975		84	100				3900	8.82	180105/180180XGUD Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
105	190		84	100				3900	10.5	180105/180190GUD Ferens
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD Ferens
111	180.975		82.6	108				3600	8.34	181111X/181180XGUD Ferens
111	190		82.6	108				3600	9.95	181111X/181190GUD Ferens
111	190.5		82.6	108				3600	10.05	181111X/181190XGUD Ferens
111	200.025		82.6	108				3600	8.34	181111X/181200XGUD Ferens
115	165		55	65				3900	3.36	105115/105165GUD supportantes
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Ferens
115	190		82.6	108				3600	9.45	181115/181190GUD supportantes
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Ferens
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Ferens
118	180.975		82.6	108				3600	7.42	181118/181180XGUD Ferens
118	190		82.6	108				3600	9.03	181118/181190GUD Ferens
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Ferens
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Ferens
120	165		55	65				3900	3.36	105120/105165GUD supportatio
120	190		82.6	108				3500	8.46	184120/184190GUD supportantes
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Ferens
120	199		82.6	108				3500	8.46	184120/184199GUD supportantes
120	200		82.6	108				3500	8.46	184120/184200GUD supportantes
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD Ferens
127	200.025		85.74	101.6				3400	8.8	164127X/164200XGUD supportantes
127	215		92	110				3100	13.54	200127X/200215GUD Bear
127	215.9		92	110				3100	13.54	200127X/200215XGUD Ferens
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD Ferens
133	200.025		85.74	101.6				3400	8.8	164133X/164200XGUD supportantes
133	215		92	110				3100	13.54	200133X/200215GUD Bear
133	215.9		92	110				3100	12.49	200133X/200215XGUD Bear
137	215		92	110				3100	13.54	200136X/200215GUD Bear
137	215.9		92	110				3100	11.97	200136X/200215XGUD Bear

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
140	215		92	110				3100	13.54	200139X/200215GUD Bear
140	215.9		92	110				3100	13.54	200139X/200215XGUD Bear
140	241.3		104	126				2900	19.86	240139X/240241XGUD supportantes
140	200		78	92.3				3100	9.7	161140/161200GSUD supportantes
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD supportantes
143	200		78	92.3				3100	9.7	161142X/161200GSUD supportantes
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD Ferens
145	241.3		104	126				2900	18.78	240145/240241XGUD supportantes
145	256		92	110				2700	14.49	203145/203256GUD Ferens
149	241.3		104	126				2900	18.78	240149X/240241XGUD supportantes
150	210		76	92				3000	9.96	163150/163210GUD supportantes
152	222.25		81.2	105				3000	10.73	183152X/183222XGUD supportantes
152	254		116.9	155				2600	24.87	281152X/281254XGUD supportantes
152	266.7		116.9	155				2600	24.87	281152X/281266XGUD supportantes
156	254		116.9	155				2600	24.87	281155X/281254XGUD supportantes
156	266.7		116.9	155				2600	24.87	281155X/281266XGUD Ferens
156	235		92	110				2700	14.49	203156/203235GUD supportantes
165	254		88.96	108				2600	14.9	186165X/186254XGUD Ferens
170	254		88.96	108				2600	14.9	186170/186254XGUD Ferens
178	227.013		63.48	75				2700	5.93	115177X/115227XGUD supportantes
178	254		88.96	108				2600	14.9	186177X/186254XGUD supportantes
178	288.925		122.25	154				2300	31.8	280177X/280288XGUD supportantes
185	258		90	110				2500	11.94	187185/187258GUD supportantes
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Ferens
191	266.7		94.14	113.18				2400	15	204190X/204266XGUD Ferens
191	282.575		91.42	120				2300	19.3	242190X/242282XGUD Ferens
191	290		96	114				2200	17	206190X/206290GUD Ferens
203	310		121.07	156				2100	32	283203X/283310GUD supportantes
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD supportantes
210	290		96	114				2200	17	206210/206290GUD supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
210	310		121.07	156				2100	31.2	283210/283310GUD supportantes
210	317.5		121.07	156				2100	34.5	283210/283317XGUD supportantes
216	355.6		124.72	166				1900	50	284215X/284355XGUD supportantes
229	355.6		124.72	166				1900	50	284228X/284355XGUD supportantes
230	327.025		90.24	122				1900	23	244230/244327XGUD supportantes
230	330		90.24	122				1900	26.84	244230/244330GUD supportantes
235	327.025		90.24	122				1900	20	244234X/244327XGUD supportantes
235	330		90.24	122				1900	26.8	244234X/244330GUD supportantes
235	355.6		124.72	166				1900	47.43	284234X/284355XGUD Ferens
254	400.05		114.24	146				1700	53.98	382254X/382400XGUD supportantes
275	406.4		140	176				1600	65.94	320275/30406XGUD Ferens
280	406.4		140	176				1600	63.18	320280X/ 320406XGUD Ferens
330	482.6		158.72	200				1400	104	380330X/380482XGUD Ferens
338	419.1		79	94				1500	30.4	152338X/152419XGUD Ferens
356	482.6		100.55	145				1400	57.3	282355X/282482XGUD Ferens
381	508		147	187				1300	79.2	303381X/303508XGUD Ferens
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Ferens
432	533.4		100.78	123				1200	44.7	232431X/232533XGUD supportantes
457	596.9		147	187				1100	94.3	300457X/300596XGUD Ferens
506	636		147	187				1000	115	307506/307636GUD Ferens
25	52		36.5	43				13300	0.48	74025/74052HUWF Ferens
30	62		42.5	51				11600	0.66	70030/70062HUWF supportantes
30	66.675		42.48	52				10400	0.8	80030/80066XHUWF supportantes
30	68		42.48	52				10400	0.8	80030/80068HUWF supportantes
32	72		46.5	57				9600	0.86	100031X/100072HUWF Ferens
32	76.2		46.5	57				9600	0.86	100031X/100076XHUWF supportantes
32	80		46.5	57				9600	0.86	100031X/100080HUWF supportantes
33	66.675		42.48	52				10400	0.8	80033X/80066XHUWF Ferens
33	68		42.48	52				10400	0.8	80033X/80068HUWF Ferens
35	72		46.5	57				9600	0.86	100034X/100072HUWF Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
35	76.2		46.5	57				9600	0.86	100034X/100076XHUWF supportantes
35	80		46.5	57				9600	0.86	100034X/100080HUWF supportantes
35	66.675		42.48	52				10400	0.74	80035/80066XHUWF Ferens
35	72		46.5	57				9600	0.855	100035/100072HUWF Ferens
35	76.2		46.5	57				9600	0.86	100035/10076XHUWF Ferens
35	80		46.5	57				9600	0.86	100035/100080HUWF Ferens
36	72		36.5	42				9600	0.595	102036/102072HUWF Ferens
38	76		45.5	57				8800	0.865	101038X/101076HUWF Ferens
38	76.2		45.5	57				8800	0.865	101038X/101076XHUWF Ferens
38	80		45.5	57				8800	0.865	101038X/101080HUWF Ferens
40	76		45.5	57				8800	0.865	101040/101076HUWF supportantes
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF Ferens
40	80		45.5	57				8800	1.07	101040/101080HUWF supportantes
40	85		48.66	55				8200	1.13	112040/112085HUWF supportantes
41	76		45.5	57				8800	0.865	101041X/101076HUWF Ferens
41	76.2		45.5	57				8800	0.865	101041X/101076XHUWF Ferens
41	80		45.5	57				8800	0.865	101041X/101080HUWF Ferens
41	85		48.66	55				8200	1.11	112041X/112085HUWF Bear
44	85		48.66	55				8200	1.11	112044X/112085HUWF Bear
44	85		55.66	62				8200	1.19	119044X/119085HUWF Bear
44	88.9		55.66	62				8200	1.19	119044X/119088XHUWF Ferens
44	90		51.3	64				7400	1.38	111044X/111090HUWF Bear
44	93.266		51.3	64				7400	1.38	111044X/111093XHUWF Ferens
45	85		48.66	55				8200	1.11	112045/112085HUWF Bear
45	85		55.66	62				8200	1.19	119045/119085HUWF Ferens
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Ferens
50	90		51.3	64				7400	1.38	111050/111090HUWF supportantes
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF supportantes
50	96.838		54	65				6900	2.005	110050/10096XHUWF Ferens
50	98.425		54	65				6900	2.005	110050/10098XHUWF Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
50	100		54	65				6900	2.005	110050/110100HUWF Ferens
51	90		51.3	64				7400	1.38	111050X/111090HUWF supportantes
51	96.838		54	65				6900	2.005	110050X/10096XHUWF Ferens
51	98.425		54	65				6900	2.005	110050X/10098XHUWF Ferens
51	100		54	65				6900	2.005	110050X/110100HUWF Ferens
54	96.838		54	65				6900	2.005	110053X/10096XHUWF Ferens
54	98.425		54	65				6900	2.005	110053X/10098XHUWF Ferens
54	100		54	65				6900	2.005	110053X/110100HUWF Ferens
55	96.838		54	65				6900	2.005	110055/10096XHUWF Ferens
55	98.425		54	65				6900	2.005	110055/10098XHUWF Ferens
55	100		54	65				6900	1.825	110055/110100HUWF Ferens
57	96.838		54	65				6900	2.005	110057X/10096XHUWF Ferens
57	96.838		54	65				6900	2.005	110057X/10098XHUWF Ferens
57	100		54	65				6900	2.005	110057X/110100HUWF Ferens
57	100		46.88	58				6600	1.9	113057X/113100HUWF Ferens
57	101.6		46.88	58				6600	1.9	113057X/113101XHUWF supportantes
57	110		60.3	73				6200	2.47	120057X/120110HUWF Ferens
57	112.712		60.3	73				6200	2.47	120057X/120112XHUWF Ferens
60	100		46.88	58				6600	1.9	113060/113100HUWF supportantes
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF supportantes
60	110		60.3	73				6200	2.47	120060/120110HUWF Ferens
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF Ferens
60	120		59.88	71				5700	2.96	130060/130120HUWF supportantes
60	127		59.88	71				5700	2.96	130060/130127HUWF supportantes
60	100		46.88	58				6600	1.9	113060X/113100HUWF Ferens
60	101.6		46.88	58				6600	1.9	113060X/113101XHUWF supportantes
64	110		60.3	73				6200	2.29	120063X/120110HUWF Ferens
64	120		59.88	71				5700	2.96	130063X/130120HUWF supportantes
64	127		59.88	71				5700	2.96	130063X/130127HUWF supportantes
65	120		59.88	71				5700	2.96	130065/130120HUWF supportantes

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
65	127		59.88	71				5700	2.96	130065/130127HUWF supportantes
70	127		59.88	71				5700	2.96	130069X/130127HUWF supportantes
70	112.712		60.3	73				5800	2.085	124069X/124112XHUWF Bear
70	120		59.88	71				5700	2.71	130069X/130120HUWF supportantes
70	120		73.12	89				5700	2.79	135069X/135120HUWF supportantes
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF supportantes
70	120		59.88	71				5700	2.7	130070/130120HUWF supportantes
70	127		59.88	71				5700	2.96	130070/130127HUWF supportantes
73	120		49.7	64				5500	2.35	123073X/123120HUWF Ferens
73	120.65		49.7	64				5500	2.35	123073X/123120XHUWF Ferens
73	121.444		49.7	64				5500	2.35	123073X/123121XHUWF Ferens
73	123.825		49.7	64				5500	2.35	123073X/123123XHUWF Ferens
75	120		49.7	64				5500	2.25	123075/123120HUWF supportantes
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF supportantes
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF supportantes
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Ferens
75	127		60.5	73				5300	3.3	133075/133127HUWF supportantes
75	130		60.5	73				5300	3.3	133075/133130HUWF supportantes
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF supportantes
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF supportantes
76	120		49.7	64				5500	2.25	123076X/123120HUWF Ferens
76	120.65		49.7	64				5500	2.25	123076X/123120XHUWF Ferens
76	123.825		49.7	64				5500	2.25	123076X/123123XHUWF Ferens
76	127		60.5	73				5300	3.3	133076X/133127HUWF Ferens
76	130		60.5	73				5300	3.3	133076X/133130HUWF Ferens
76	133.35		60.5	73				5300	3.3	133076X/133133XHUWF Ferens
76	136.525		60.5	73				5300	3.3	133076X/133136XHUWF supportantes
78	120		49.7	64				5500	2.25	123077X/123120HUWF Bear
78	120.65		49.7	64				5500	2.25	123077X/123120XHUWF Ferens
78	121.444		49.7	64				5500	2.25	123077X/123121XHUWF Bear

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
78	123.825		49.7	64				5500	2.25	123077X/123123XHUWF Ferens
80	140		69.14	85				4900	4.545	140080/140140HUWF supportantes
81	133.35		58.12	74				4900	2.25	126080X/126133XHUWF Ferens
83	133.35		58.12	74				4900	2.25	126082X/126133XHUWF Ferens
83	136.525		58.12	74				4900	2.25	126082X/126136XHUWF Ferens
83	140		69.14	85				4900	4.345	140082X/140140HUWF Ferens
84	133.35		58.12	74				4900	2.4	126084X/126133XHUWF Ferens
84	136.525		58.12	74				4900	2.4	126084X/126136XHUWF Ferens
85	140		69.14	85				4900	4.145	140085/140140HUWF supportantes
85	170		89	106				4200	8.545	210085/210170HUWF Ferens
86	133.35		58.12	74				4900	2.4	126085X/126133XHUWF Ferens
86	136.525		58.12	74				4900	2.4	126085X/126136XHUWF Ferens
89	133.35		58.12	74				4900	2.4	126088X/126133XHUWF Ferens
89	136.525		58.12	74				4900	2.4	126088X/126136XHUWF Ferens
90	133.35		60.12	76				4800	4	117090/117133XHUWF supportantes
90	150		62	75				4400	4.745	131090/131150HUWF Ferens
90	152.4		62	75				4400	4.745	131090/131152XHUWF Ferens
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF supportantes
90	158.75		62	75				4400	4.745	131090/131158XHUWF Ferens
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF supportantes
90	160		75.8	92				4300	5.15	160090/160160HUWF supportantes
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF supportantes
90	170		89	106				4200	8.545	210090/210170HUWF Ferens
92	150		62	75				4400	4.745	131092X/131150HUWF Ferens
92	152.4		62	75				4400	4.745	131092X/131152XHUWF Ferens
92	158.75		62	75				4400	4.745	131092X/131158XHUWF Ferens
94	150		62	75				4400	4.745	131093X/131150HUWF Ferens
94	152.4		62	75				4400	4.745	131093X/131152XHUWF Ferens
94	158.75		62	75				4400	4.745	131093X/131158XHUWF Ferens
95	150		62	75				4400	4.745	131095/131150HUWF Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
95	152.4		62	75				4400	4.625	131095/131152XHUWF Ferens
95	158.75		62	75				4400	4.745	131095/131158XHUWF Ferens
95	170		89	106				4200	8.545	210095/210170HUWF Ferens
97	150		62	75				4400	4.745	131097/131150HUWF Ferens
97	152.4		62	75				4400	4.465	131097/131152XHUWF Ferens
97	158.75		62	75				4400	4.745	131097/131158XHUWF Ferens
98	152.4		75.8	92				4300	5.15	160098X/160152XHUWF supportantes
98	158.75		75.8	92				4300	5.15	160098X/160158XHUWF supportantes
98	160		75.8	92				4300	5.15	160098X/160160HUWF Ferens
98	161.925		75.8	92				4300	5.15	160098X/160161XHUWF Ferens
100	170		84	100				3900	9.52	180100/180170HUWF Ferens
100	180		84	100				3900	9.42	180100/180180HUWF Ferens
100	180.975		84	100				3900	9.52	180100/180180XHUWF Ferens
100	190		84	100				3900	11.12	180100/180190HUWF Ferens
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF Ferens
102	170		84	100				3900	9.52	180101X/180170HUWF Ferens
102	180		84	100				3900	9.52	180101X/180180HUWF Ferens
102	180.975		84	100				3900	9.52	180101X/180180XHUWF Ferens
102	190		84	100				3900	11.08	180101X/180190HUWF Ferens
105	170		84	100				3900	9.52	180105/180170HUWF Ferens
105	180		84	100				3900	9.52	180105/180180HUWF Ferens
105	180.975		84	100				3900	9.06	180105/180180XHUWF Ferens
105	190		84	100				3900	10.62	180105/180190HUWF Ferens
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF Ferens
111	180.975		82.6	108				3600	8.6	181111X/181180XHUWF Ferens
111	190		82.6	108				3600	10.1	181111X/181190HUWF Ferens
111	190.5		82.6	108				3600	10.4	181111X/181190XHUWF Ferens
111	200.025		82.6	108				3600	8.6	181111X/181200XHUWF Ferens
115	165		55	65				3900	3.45	105115/105165HUWF Bear
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
115	190		82.6	108				3600	9.6	181115/181190HUWF Ferens
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF Ferens
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF Ferens
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF Ferens
118	190		82.6	108				3600	9.18	181118/181190HUWF Ferens
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF Ferens
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF Ferens
120	165		55	65				3900	3.45	105120/105165HUWF supportantes
120	190		82.6	108				3500	8.8	184120/184190HUWF Ferens
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF Ferens
120	199		82.6	108				3500	8.8	184120/184199HUWF Ferens
120	200		82.6	108				3500	8.8	184120/184200HUWF Ferens
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF Ferens
127	200.025		85.74	101.6				3400	9.2	164127X/164200XHUWF Ferens
127	215		92	110				3100	13.9	200127X/200215HUWF Ferens
127	215.9		92	110				3100	13.9	200127X/200215XHUWF Ferens
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF Ferens
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF Ferens
133	200.025		85.74	101.6				3400	9.2	164133X/164200XHUWF Ferens
133	215		92	110				3100	13.9	200133X/200215HUWF Ferens
133	215.9		92	110				3100	12.85	200133X/200215XHUWF Ferens
137	215		92	110				3100	13.9	200136X/200215HUWF Ferens
137	215.9		92	110				3100	12.33	200136X/200215XHUWF Ferens
140	215		92	110				3100	13.9	200139X/200215HUWF Ferens
140	215.9		92	110				3100	13.9	200139X/200215XHUWF Ferens
140	241.3		104	126				2900	20.485	240139X/240241XHUWF Ferens
140	200		78	92.3				3100	10	161140/161200HSUWF Ferens
140	200.025		78	92.3				3100	10	161140/161200XHSUWF Ferens
143	200		78	92.3				3100	10	161142X/161200HSUWF Ferens
143	200.025		78	92.3				3100	10	161142X/161200XHSUWF Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
145	241.3		104	126				2900	19.405	240145/240241XHUWF Bear
145	256		92	110				2700	14.87	203145/203256HUWF Ferens
149	241.3		104	126				2900	20.485	240149X/240241XHUWF Bear
150	210		76	92				3000	10.2	163150/163210HUWF Ferens
152	222.25		81.2	105				3000	11.15	183152X/183222XHUWF Ferens
152	254		116.9	155				2600	25.6	281152X/281254XHUWF Ferens
152	266.7		116.9	155				2600	25.6	281152X/281266XHUWF Ferens
156	254		116.9	155				2600	25.6	281155X/281254XHUWF Ferens
156	266.7		116.9	155				2600	25.6	281155X/281266XHUWF Ferens
156	235		92	110				2700	14.87	203156/203235HUWF supportantes
165	254		88.96	108				2600	15	186165X/186254XHUWF Ferens
170	254		88.96	108				2600	15	186170/186254XHUWF Ferens
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF Ferens
178	254		88.96	108				2600	15	186177X/186254XHUWF Ferens
178	288.925		122.25	154				2300	32.6	280177X/280288XHUWF Ferens
185	258		90	110				2500	12.3	187185/187258HUWF Ferens
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Ferens
191	266.7		94.14	113.18				2400	15.5	204190X/204266XHUWF Ferens
191	282.575		91.42	120				2300	20	242190X/242282XHUWF Ferens
191	290		96	114				2200	17.3	206190X/206290HUWF Ferens
203	310		121.08	156				2100	32.8	283203X/283310HUWF supportantes
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF supportantes
210	290		96	114				2200	17.3	206210/206290HUWF Ferens
210	310		121.08	156				2100	32	283210/283310HUWF supportantes
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF supportantes
216	355.6		124.72	166				1900	51	284215X/284355XHUWF Ferens
229	355.6		124.72	166				1900	51	284228X/284355XHUWF supportantes
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF supportantes
230	330		90.24	122				1900	27.35	244230/244330HUWF supportantes
235	327.025		90.24	122				1900	21	244234X/244327XHUWF Ferens

Basic dimensiones					Basic onus rating		Celeritas ratings		Mass	Model
Basic dimensiones					dynamic	static	Reference celeritas	Limitandi celeritas	Mass	Ferens No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Ferens No.
235	330		90.24	122				1900	27	244234X/244330HUWF supportantes
235	355.6		124.72	166				1900	48.43	284234X/284355XHUWF Ferens
254	400.05		114.24	146				1700	55.5	382254X/382400XHUWF Ferens
275	406.4		140	176				1600	67.6	320275/30406XHUWF Ferens
280	406.4		140	176				1600	64.84	320280X/320406XHUWF Ferens
330	482.6		157.73	200				1400	105	380330X/380482XHUWF Ferens
338	419.1		79	94				1500	30.9	152338X/152419XHUWF Ferens
356	482.6		100.55	145				1400	58.7	282355X/282482XHUWF Ferens
381	508		147	187				1300	80	303381X/303508XHUWF Ferens
406	549.275		152.36	200				1200	98.25	323406XS/323549XHSUWF Ferens
432	533.4		100.78	123				1200	45	232431X/232533XHUWF Ferens
457	596.9		147	187				1100	95	300457X/300596XHUWF Ferens
506	636		147	187				1000	116	307506/307636HUWF Ferens

Engineering the Future of Motion

About UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 -Double Row Tapered Rollerus Bearings suppliers and OEM/ODM BT2B 332504/HA2 -Double Row Tapered Rollerus Bearings company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Plus de Us Ukl Bearing Manufacturing Co.,Ltd

0+

annos

Industria Usus
0+

Exemplar diversitatis
0+

Numerus Employees
0

$

Annua export valorem

Testimonium Honoris

News

(LXXIII)CVI ferens Technical Deep Dive: Decoding in BECBP, BEP, BEGBM Suffixarum Codicum pro Optimal Electio
18 Jun, 2026
Quod (VII)CCCVI suffixum eliges? Pro summa celeritate applicationes generalissimas quaerunt 40° angulum contactum et praecisionem vexillum, 7306 BEP est electio defectus. Si vis adaptare u...

READ MORE
Cur NU 309 Cylindrica Rollerus Excelsus in Motor et Design Gearbox Ferens?
04 Jun, 2026
Key Takeaway: The NU 309 Bearing Excels as a Floating Bearing Motrices enim et gearbox designant ubi scapi expansio scelerisque cura critica est NU 309 afferens; certis...

READ MORE
Quomodo inaugurare 2206 AV Nilos Ring (Step-by-Step Guide)
28 May, 2026
Install cum aperto latere adversus ferentem Ut bene install the 2206 AV Nilos Ring, position it so the convex (open) side points towards the bearing raceway. Anulus sede...

READ MORE
Quomodo eligere ius angulari Contactum Ball Ferens pro High-Speed Applications?
21 May, 2026
Optimam volubilem partem eligens ad celeritatem machinationis rotationis altam requirit intelligentiam condiciones operandi, geometriae internae, et administrationem scelerisque. Inter exquisitas m...

READ MORE
