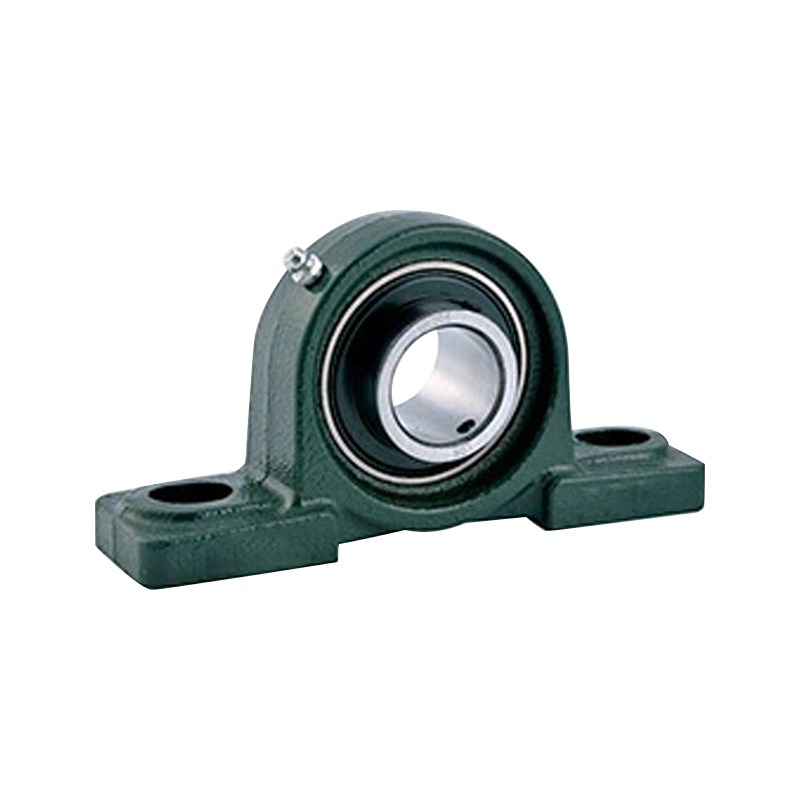

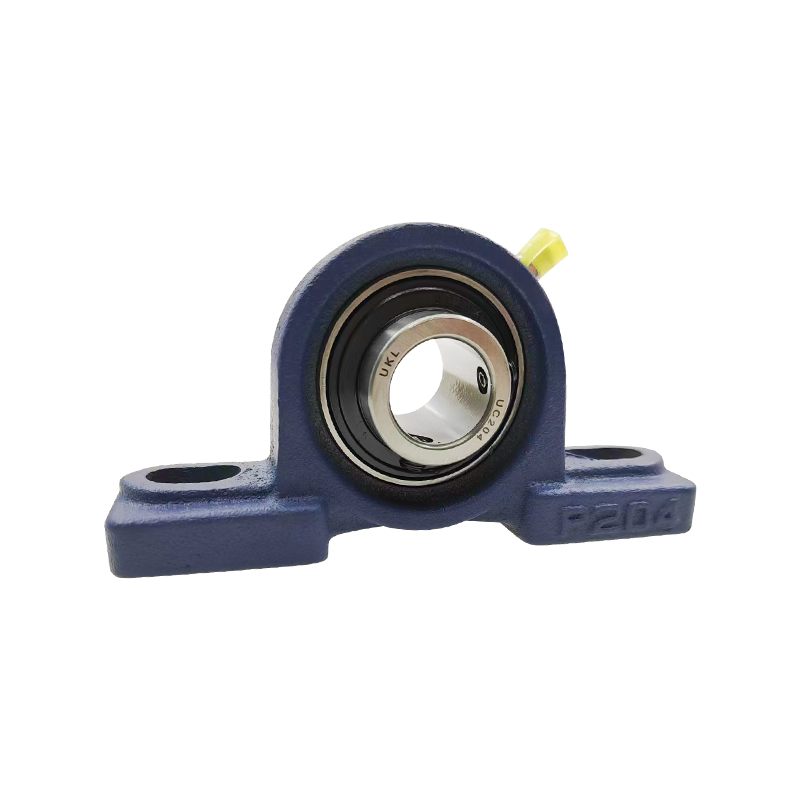

Pulvinar Acta Bearings

Pulvinus truncus portans, etiam stipes plumbi notus, fulcimentum structurae ad adiuvandum destinata est ad stabiliendum hastile rotantem utendo gestus compatibiles et varias partes consociatarum.

Hoc genus afferendi continet truncum ascendentem (pulvinar scandalum). Portatio intra truncum arduum installatur.

Pulvinum scandalum gestus in applicationibus humilibus torques plerumque adhibentur. Foramina vel foramina in ferendis basi vel pedibus ferentium admittunt pro facili conventu et temperatio.

Contact Us Nobis Contactus
PRIOR:Nullum productum prius SEQUENS:Tapped Base Cervical Clausus Bearings
  • Specificationes
  • Nobis Contactus

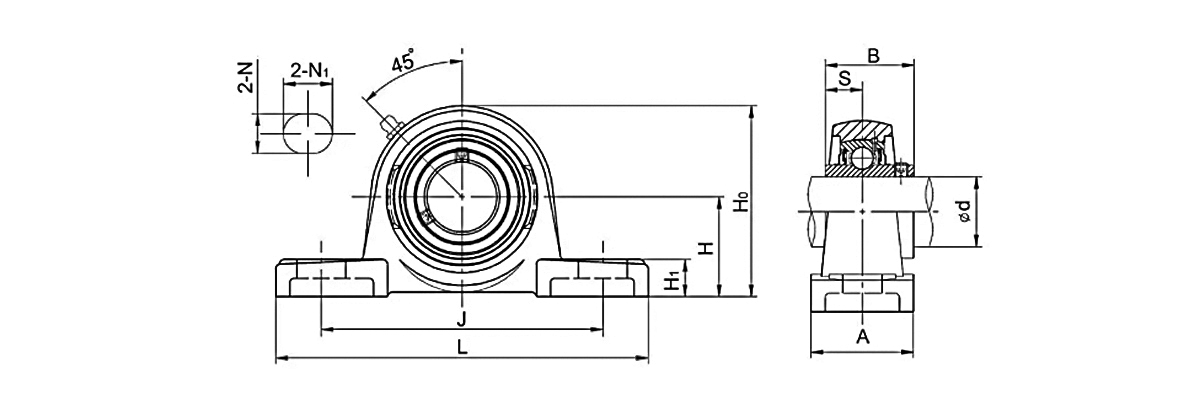

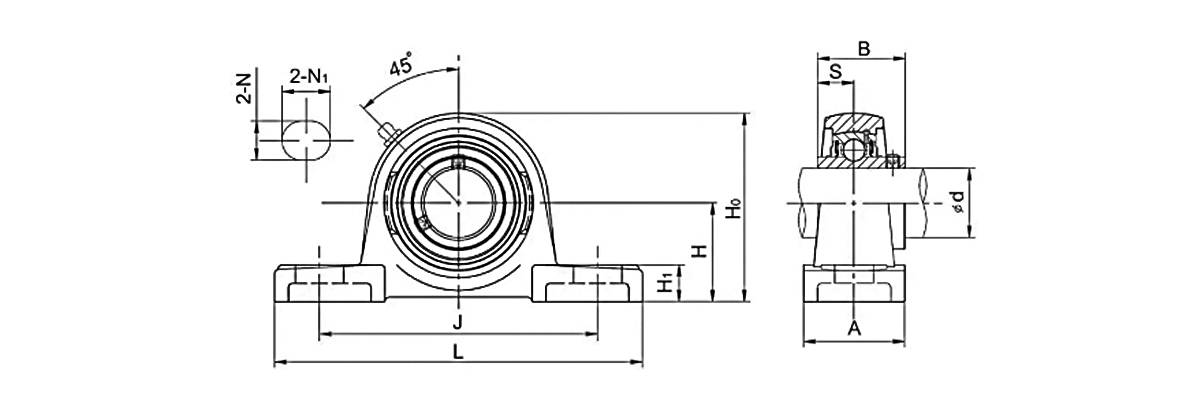

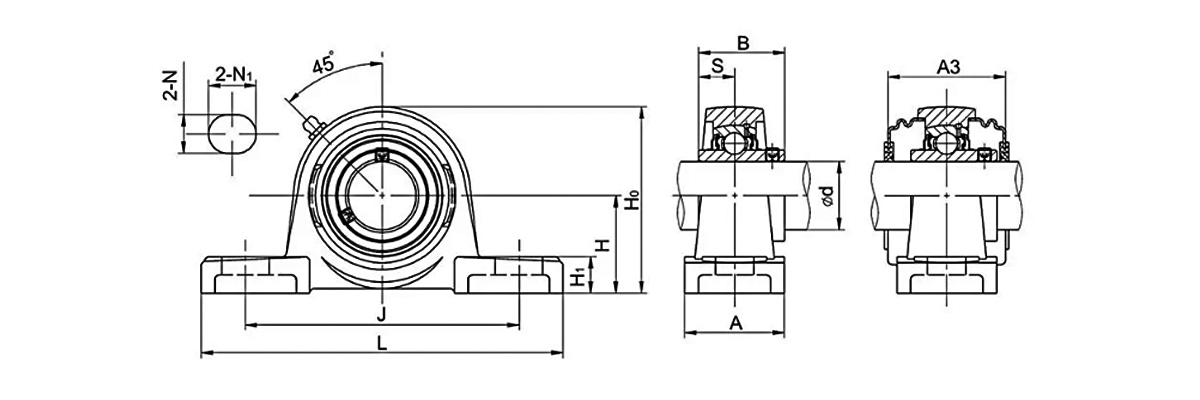

Unit No. Shaft Dia Dimensiones (mm) Bolt Siz
(mm) 		Pondus
(kg)
d H L J A N N1 H1 Ho B S A3
(in) (mm)
UCWP201 12 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.72
UCWP202 15 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCWP203 17 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCP201 12 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP201-8 1/2 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP202 15 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-9 9/16 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-10 5/8 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP203 17 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP203-11 11/16 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP204 20 33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.7
UCP204-12 3/4 33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.7
UCP205 25 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-14 7/8 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-15 15/16 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-16 1 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP206 30 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-17 1-1/16 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-18 1-1/8 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-19 1-3/16 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-20 1-1/4 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP207 35 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-20 1-1/4 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-21 1-5/16 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-22 1-3/8 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-23 1-7/16 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP208 40 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.9
UCP208-24 1-1/2 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.9
UCP208-25 1-9/16 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.9
UCP209 45 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP209-26 1-5/8 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP209-27 1-11/16 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP209-28 1-3/4 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP210 50 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-30 1-7/8 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-31 1-15/16 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-32 2 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP211 55 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP211-32 2 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP211-34 2-1/8 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP211-35 2-3/16 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP212 60 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP212-36 2-1/4 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP212-38 2-3/8 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP212-39 2-7/16 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP213 65 76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.6
UCP213-40 2-1/2 76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.6
UCP214 70 79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.6
UCP214-44 2-3/4 79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.6
UCP215 75 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.3
UCP215-47 2-15/16 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.3
UCP215-48 3 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.3
UCP216 80 88.9 292 232 78 25 30 30 174 82.6 33.3 110 M20 9
UCP217 85 95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.8
UCP217-52 3-1/4 95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.8
UCP218 90 101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13
UCP218-56 3-1/2 101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13
UCP220 100 115 380 305 95 30 36 40 225 108 42 – M24 16

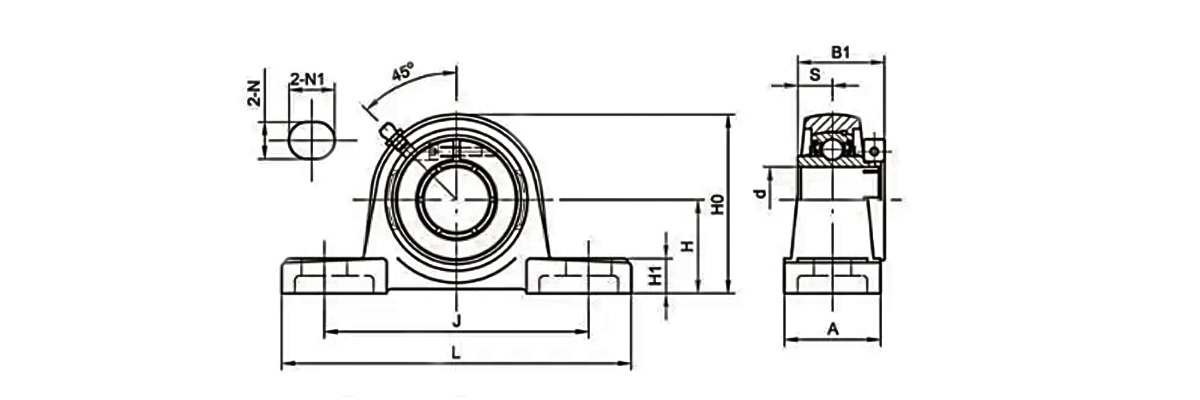

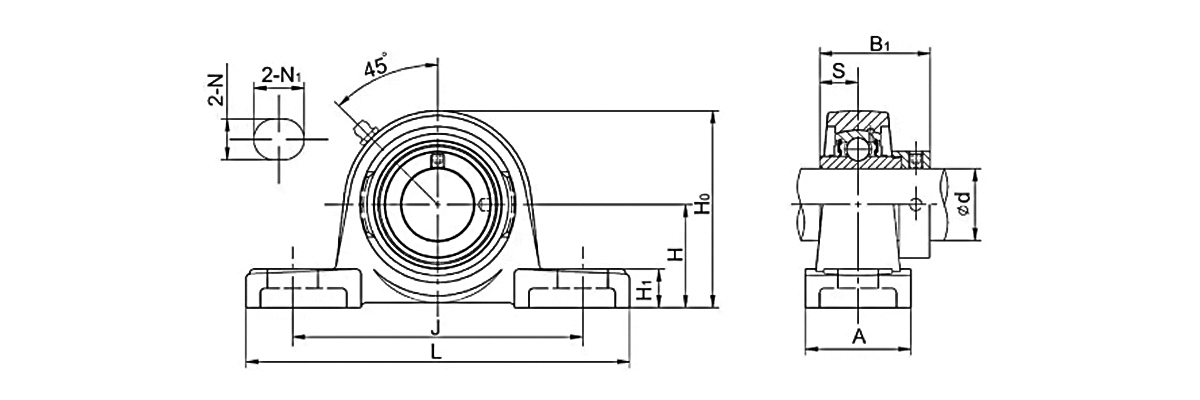

Unit No. Shaft Dia Dimensiones (mm) Fulmen Size
(mm) 		Pondus
(kg)
d H L J A N N1 H1 Ho B1 S
(in) (mm)
NAP201 12 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP201-8 1/2 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202 15 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202-9 9/16 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202-10 5/8 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP203 17 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP203-11 11/16 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP204 20 33.3 127 95 38 13 19 14 64 43.7 17.1 M10 0.72
NAP204-12 3/4 33.3 127 95 38 13 19 14 64 43.7 17.1 M10 0.72
NAP205 25 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-14 7/8 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-15 15/16 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-16 1 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP206 1-1/16 30 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-18 1-1/8 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-19 1-3/16 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-20 1-1/4 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP207 35 47.6 167 126 44 17 21 6 82 51.1 18.8 M14 1.7
NAP207-20 1-1/4 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-21 1-5/16 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-22 1-3/8 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-23 1-7/16 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP208 40 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP208-24 1-1/2 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP208-25 1-9/16 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP209 45 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-26 1-5/8 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-27 1-11/16 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-28 1-3/4 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP210 50 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-30 1-7/8 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-31 1-15/16 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-32 2 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP211 55 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-32 2 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-34 2-1/8 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-35 2-3/16 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP212 60 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-36 2-1/4 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-38 2-3/8 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-39 2-7/16 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP213 65 76.2 262 203 70 25 30 26 149 85.7 34.3 M20 6.3
NAP213-40 2-1/2 76.2 262 203 70 25 30 26 149 85.7 34.3 M20 6.3
NAP214 70 79.4 266 210 72 25 30 27 155 85.7 34.3 M20 7
NAP214-44 2-3/4 79.4 266 210 72 25 30 27 155 85.7 34.3 M20 7
NAP215 75 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8
NAP215-47 2-15/16 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8
NAP215-48 3 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8

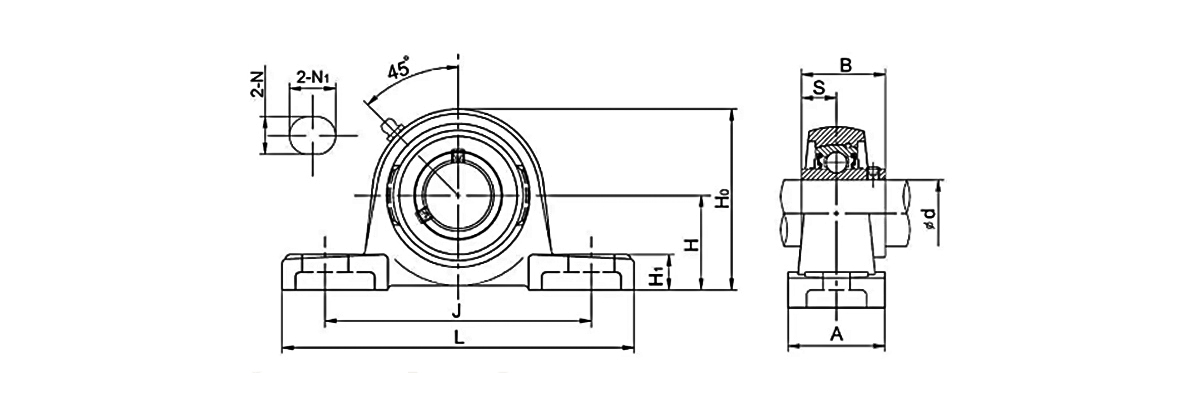

Unit No. Shaft Dia Dimensiones (mm) Fulmen Size
(mm) 		Pondus
(kg)
d H L J A N N1 H1 Ho B1 S
(in) (mm)
UEP204 20 33.3 127 95 38 13 19 14 64 33 12.7 M10 0.68
UEP204-12 3/4 33.3 127 95 38 13 19 14 64 33 12.7 M10 0.68
UEP205 25 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-14 7/8 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-15 15/16 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-16 1 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP206 30 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-17 1-1/16 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-18 1-1/8 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-19 1-3/16 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-20 1-1/4 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP207 35 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-20 1-1/4 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-21 1-5/16 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-22 1-3/8 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-23 1-7/16 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP208 40 49.2 180 137 52 17 21 18 99 50.2 19 M14 2
UEP208-24 1-1/2 49.2 180 137 52 17 21 18 99 50.2 19 M14 2
UEP208-25 1-9/16 49.2 180 137 52 17 21 18 99 50.2 19 M14 2
UEP209 45 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-26 1-5/8 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-27 1-11/16 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-28 1-3/4 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP210 50 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-30 1-7/8 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-31 1-15/16 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-32 2 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP211 55 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-32 2 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-34 2-1/8 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-35 2-3/16 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP212 60 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-36 2-1/4 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-38 2-3/8 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-39 2-7/16 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87

Unit No. Shaft Dia Dimensiones (mm) Fulmen Size
(mm) 		Pondus
(kg)

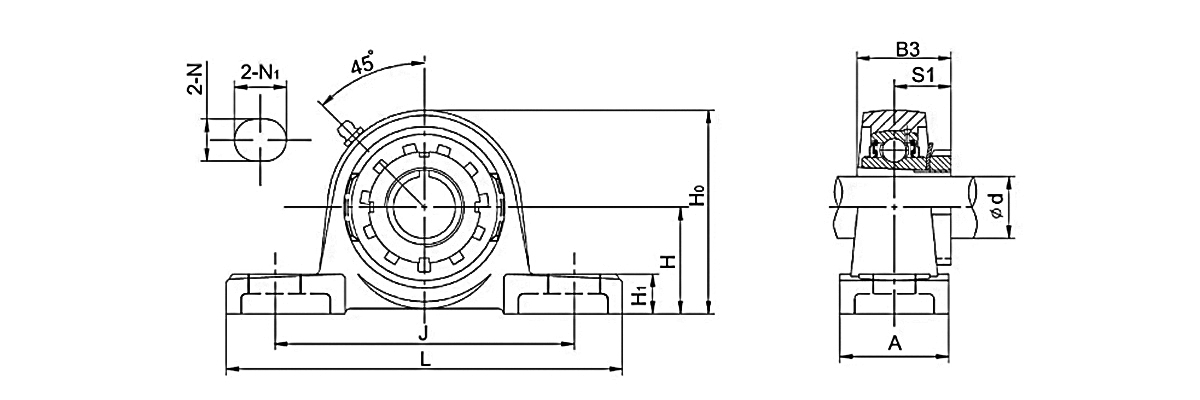

d H L J A N N1 H1 Ho B3 S1
(in) (mm)
UKP205 H2305 20 36.5 140 105 38 13 19 15 71 35 18.5 M10 0.83
UKP205 HE2305 3/4 36.5 140 105 38 13 19 15 71 35 18.5 M10 0.83
UKP206 H2306 25 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206 HS2306 7/8 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206 HA2306 15/16 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206 HE2306 1 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP207 H2307 30 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP207 HE2307 1-1/8 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP207 HS2307 1-3/16 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP208 H2308 35 49.2 180 137 53 17 21 18 99 46 24.5 M14 2
UKP208 HE2308 1-1/4 49.2 180 137 53 17 21 18 99 46 24.5 M14 2
UKP208 HS2308 1-3/8 49.2 180 137 53 17 21 18 99 46 24.5 M14 2
UKP209 H2309 40 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP209 HA2309 1-7/16 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP209 HE2309 1-1/2 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP210 H2310 45 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP210 HS2310 1-5/8 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP210 HA2310 1-11/16 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP210 HE2310 1-3/4 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP211 H2311 50 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211 HS2311 1-7/8 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211 HA2311 1-15/16 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211 HE2311 2 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP212 H2312 55 69.9 238 186 70 20 25 25 137 62 31 M16 4.7
UKP212 HS2312 2-1/8 69.9 238 186 70 20 25 25 137 62 31 M16 4.7
UKP213 H2313 60 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213 HA2313 2-3/16 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213 HE2313 2-1/4 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213 HS2313 2-3/8 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP215 H2315 65 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP215 HA2315 2-7/16 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP215 HE2315 2-1/2 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP216 H2316 70 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP216 HA2316 2-11/16 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP216 HE2316 2-3/4 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP217 H2317 75 95.2 310 247 83 25 28 32 186 82 40 M20 10.93
UKP218 H2318 80 101.6 326 262 88 27 30 33 198 86 42 M22 12.65

Unit No. Shaft Dia Dimensiones (mm) Fulmen Size Pondus
d H L J A N N1 H1 Ho B S (mm) (kg)
(in) (mm)
UCPX05 25 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-13 13/16 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-14 7/8 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-15 15/16 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-16 1 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX06 30 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-17 1-1/16 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-18 1-1/8 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-19 1-3/16 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-20 1-1/4 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX07 35 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX07-21 1-5/16 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX07-22 1-3/8 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX07-23 1-7/16 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX08 40 58.7 222 156 67 20 23 26 112 49.2 19 M16 3.3
UCPX08-24 1-1/2 58.7 222 156 67 20 23 26 112 49.2 19 M16 3.3
UCPX08-25 1-9/16 58.7 222 156 67 20 23 26 112 49.2 19 M16 3.3
UCPX09 45 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-26 1-5/8 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-27 1-11/16 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-28 1-3/4 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-29 1-13/16 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX10 50 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX10-30 1-7/8 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX10-31 1-15/16 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX10-32 2 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX11 55 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-33 2-1/16 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-34 2-1/8 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-35 2-3/16 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-36 2-1/4 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-37 2-5/16 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX12 60 76.2 286 203 83 25 28 34 151 65.1 25.4 M20 7.3
UCPX12-38 2-3/8 76.2 286 203 83 25 28 34 151 65.1 25.4 M20 7.3
UCPX12-39 2-7/16 76.2 286 203 83 25 28 34 151 65.1 25.4 M20 7.3
UCPX13 65 76.2 286 203 83 25 28 34 154 74.6 30.2 M20 7.6
UCPX13-40 2-1/2 76.2 286 203 83 25 28 34 154 74.6 30.2 M20 7.6
UCPX13-41 2-9/16 76.2 286 203 83 25 28 34 154 74.6 30.2 M20 7.6
UCPX14 70 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX14-42 2-5/8 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX14-43 2-11/16 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX14-44 2-3/4 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX15 75 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-45 2-13/16 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-46 2-7/8 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-47 2-15/16 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-48 3 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX16 80 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-49 3-1/16 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-50 3-1/8 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-51 3-3/16 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-52 3-1/4 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX17 85 101.6 384 283 102 27 30 40 202 96 39.7 M22 16
UCPX17-53 3-5/16 101.6 384 283 102 27 30 40 202 96 39.7 M22 16
UCPX17-55 3-7/16 101.6 384 283 102 27 30 40 202 96 39.7 M22 16
UCPX18 90 101.6 384 283 106 27 30 40 206 104 42.9 M22 19
UCPX20 100 127 432 337 120 33 36 45 244 117.5 49.2 M30 24.9

Unit No hastile d Dimensiones (mm) Mole fulmen (mm) Pondus (kg)
(mm) H L J A N N1 H1 Ho B s
UCP305 25 45 175 132 45 17 20 16 85 38 15 M14 1.4
UCP306 30 50 180 140 50 17 20 18 95 43 17 M14 1.8
UCP307 35 56 210 160 56 17 25 20 106 48 19 M14 2.8
UCP308 40 60 220 170 60 17 25 24 116 52 19 M14 3.08
UCP309 45 67 245 190 67 20 30 25 129 57 22 M16 4.1
UCP310 50 75 275 212 75 20 35 27 143 61 22 M16 6
UCP311 55 80 310 236 80 20 38 30 154 66 25 M16 7.4
UCP312 60 85 330 250 85 25 38 32 165 71 26 M20 9.4
UCP313 65 90 335 260 90 25 38 33 176 75 30 M20 10
UCP314 70 95 360 280 90 27 40 35 187 78 33 M22 12
UCP315 75 100 380 290 100 27 40 35 198 82 32 M22 14
UCP316 80 106 400 300 110 27 40 40 210 86 34 M22 18
UCP317 85 112 420 320 110 33 45 40 220 96 40 M27 20
UCP318 90 118 430 330 110 33 45 45 235 96 40 M27 24
UCP319 95 125 470 360 120 36 50 46 250 103 41 M30 26.5
UCP320 100 140 490 380 120 36 50 50 275 108 42 M30 34.3
UCP321 105 140 490 380 120 36 50 50 280 112 44 M30 36.6
UCP322 110 150 520 400 140 40 55 55 300 117 46 M33 42.5
UCP324 120 160 570 450 140 40 55 65 320 126 51 M33 53.5
UCP326 130 180 600 480 140 40 55 75 355 135 54 M33 72.1
UCP328 140 200 620 500 140 40 55 75 390 145 59 M33 89.1

Producta Commendata

Fabricantes Futurum Motus
De UKL
Condita anno 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) est Sinae Pulvinar Acta Bearings provisores et OEM/ODM Pulvinar Acta Bearings societas, societas industrialis et mercatoria integra quae in fabricatione praecisa versatur, coniungens R&D, productionem et venditionem.
Societas speciales solutiones gestuum summae perfunctionis praebet, subsidium technicum pro industriis globalibus cum exigentiis summe altis pro praecisione et fide.

Cum plus quam 200 peritis peritis et basi productionis plene modernizata, facultates UKL totum processum fabricationis tegunt — cudendi, temperandi, tornandi, tractationis caloris, molendi et congregationis automatae.
Utens plus quam 15 annis experientiae exportationis OEM/ODM, UKL cito respondet necessitatibus clientium, offerens flexibilia et accommodata servitia pro clientibus per Europam, Asiam, Africam et Orientem Medium.

Ukl Bearing Manufacturing Co.,Ltd Plus de Nobis Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    anni

    Experientia Industriae

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Diversitas Formarum

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Numerus Conlaboratorum

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Valor Exportationis Annuus

Ukl Bearing Manufacturing Co.,Ltd
Diploma Honoris
News
Mounted Bearings Cognitio Industriae

UCP214 Cervical Clausus Ferens: The Ultimate Guide to Specifications, Installation, and Cross-Reference

The UCP214 afferentem vexillum elevatum gerens unitatis repraesentat, quod robustam habitationem ferream deiectam componit cum globuli radiali praecisione machinato inserta portante. Haec unitas destinatur ad certa subsidia praebere per amplum spectrum machinae industriae, ab instrumento agriculturae ad systemata tractantia et applicationes TRADUCTOR. Intelligentes suas species technicas, compositionem materialem, et normas selectas proprias essentiales sunt tam professionales operandi quam speciales procurationes quaerunt meliorem effectum et diuturnitatem.

Technical Architecture and Design Features

In UCP214 pulvinar truncus portans unitatem ex duobus principalibus componentibus constat: habitationem et ferentem inserta. Habitationem, ab alto gradu griseo emissam ferrum fabricatam, rigidam basim ascendentem cum duobus foraminibus fulmen ad structuris sustentandis securam affectum praebet. features insertas gerentes annulum interiorem latum scapulis utrinque extensis, cochleis appositis cochleis positivo pro stipite densis incorporando. Hoc consilium certos torques tradendas efficit et obsessionem axialem in operatione prohibet.

Facultas auto-alignansing UCP214 peculiaris attentionis meretur. Sodales sphaerici extra diametrum afferentis insertam cum superficiei sphaerica congruenti intra habitationem, angularis commissionis recompensationem permittens usque ad plures gradus. Haec factura inaestimabilem probat in applicationibus ubi deflexio scapi vel inaccurationes ascendentes aliter praematurum ducere possent defectum afferentem.

Specifications materiales et euismod laoreet condimentum

Feature Specification Significatio muneris
habitationi Material Grey Iron (GG) Rigiditatem, vibrationem debilitantem et corrosionem resistentiam praebet ad ambitus industriae aptas
Ferens Insert Material Chrome Steel (Grade 52100) Praebet duritiem altam, resistentiam induendi, vires lassitudines ad vitam servitutis extensam
Obstructio Mechanismum Set Cochleas (2) Tutatur positivus scapus solidamentum; accommodat tam metrica quam inch hastile dimensionum
Ratio signantes Duplex Contactus Sigilla cum Slinger Protegit contra contaminantes ingressu ducatus retinens; idoneam humido pulverulenta ambitus
Lubricatio Grease (Nlgi #2 equivalent) cum congruo Facultatem initialem et relubricationem praebet; usque sustentationem intervallis
Temperature Range -20°C ad 120°C Operationem dat per diversas condiciones environmental
perago Pinxit Providet additional corrosio praesidium pro habitationi

Duo Variantes: UCP214 et UCP214-44

Duae primariae variantes huius pulvinari truncum gerentes existunt, stipite diametri specificatione distincti;

UCP214 afferentem : lineamenta 70mm diametri boream, quae ad applicationes hastili metricae destinata est. Haec versio cum signis internationalibus conformatur ac late in mercatis Europae, Asiaticis et globali versatur ubi mensurae metricae sunt.

UCP214-44 afferens : features a 69.85mm diametri boream, correspondentes 2-3/4 dig. Haec variantes systemata pollicis substructi inserviunt, praesertim in mercationibus Americae Septentrionalis et instrumento ad signa imperialia fabricata.

Ambae variantes dimensiones identicae communicant habitationis, foraminis fulminis spatium, centrum altitudinis, et aestimationes onus. Commutatio inhabitationum inter variantes simplices procurationem inventarii pro conservatione Dicasteriorum et distributorum. Procurationis professionales quaerentes UCP214 praebentes commeatus vel UCP214-44 praebentes, hanc compatibilitatem intellegentes costs inventarium reducere possunt, flexibilitate servata.

Applications and Industry Use Cases

UCP214 Stipes cervical portans applicationem invenit per numerosas industrias ob fabricam mobilitatem et robustam;

Conveyor Systems : The aligning feature accommodat hastile deflexionem communem in TRADUCTOR longi currit, dum habitationi ferrea iactus resistit continuis oneribus et vibrationibus propriae molis materialis tractandi.

Machinarium agriculturae : Pulvis, strages, et variae conditiones operandi exigunt gestus cum signatione efficaci et vetustate. Consilium UCP214 has provocationes in instrumento invenit sicut messores, balatores et instrumenta tractantia materialia.

Industrial Fans et Blowers : Facultas unitatis misalignment accommodandi et certa signandi idoneos redde applicationibus aeris tractandi ubi accessus sustentationis finiri potest.

Packaging Equipment : Cervical stipes portans congruentiam praebet in celeritate, applicationes intermittentes communes in linearum fasciculis.

Rhoncus elit : lenis, quieta operatio UCP214 afferens confert ad apparatum processus textile ubi tremor imperium essentiale est.

UCP212-39 affinis gerens, featurans 61.913mm gerens (2-7/16 pollices), alium popularem variantem in hac serie repraesentat, applicationes inserviens egentibus diametris intermediis. Multi usores UCP212-39 hanc unitatem eligunt pro compatibilitate cum certis instrumentorum instrumentorum instrumentis et eius promptitudine ex statutis cervicalibus clausurae praebitorum sustinendis.

Electio Criteria pro Procurement Professionals

Cum aestimandis UCP214 praebitoribus ferendis, procuratio adhibendi plures causas criticas considerare debet;

Onus Requisita : UCP214 portans onus dynamicum tradit aestimationem circiter 62,000 N et onus statice rating 44,000 N, aptam ad moderandas applicationes ad grave officium faciens.

Shaft Diameter Compatibility : confirmans utrum applicatio requirit metricam 70mm (UCP214) vel pollicis 2-3/4" (UCP214-44) variantes essentiales ad idoneos et ad agendum.

Environmental Conditions : Temperature extrema, humoris expositio, et contaminantium gradus influentia sigillum lectio et lubricationis requisita. Configuratio normae ambitus industriales maxime accommodat, sed optiones speciales praesto esse possunt.

habitationi configurationis : Duo fulmen basi designans in pulvinari truncum gerens directam institutionem praebet, sed examinans foramen adscendens spatii et centri dimensiones altitudinis convenientiam cum instrumento existente efficit.

UKL Portans Vestibulum Co., Ltd . (Wuxi) industrialis et mercaturae inceptis integrata est quae ad accuratas fabricandas, R&D componendas, productiones et venditiones spectat. Ut professionalis officinas sustinens et in Sinis societatem faciens, societas specialis in solutionibus faciendis laborat, subsidia technica ad industrias globales comparans, cum eximie alta postulata ad praecisionem et constantiam.

Cum plus quam 200 peritis peritis et basis productionis plene modernisata, UKL facilities totam processus fabricandi tegunt - fabricare, furnum, conversionem, curationem caloris, stridor, conventus automatus. Haec verticaliter integrata aditus qualitatem temperantiae quavis gradu efficit et responsabilitatem servitii dat clientibus in toto orbe.

Technologia & Innovatio apud Core: Dedicata R&D manipulus semper summus praecisio crucis cylindrus gestus evolvit, duplicata directio angularis globulorum gestus contactus impellit, et alia producta in machinis CNC, roboticis, et systematibus automationibus intelligentibus adhibita sunt. Per subtilitatem consiliorum et productionis digitalis imperium, UKL efficit ut omne productum signa internationalia occurrat ad accurate et perficiendum.

Sustinebilitatem & responsabilitatem: Environmentaliter responsales processus, materialia incepta redivivus, et optimized industriae usus redigunt vestigium environmental. Ultra productionem UKL etiam incepta educationis et technicae sustinet ad fovendam futuram machinationem ingenii.

FAQ

Quid interest inter gestus UCP214 et UCP214-44?

Prima differentia in diametro boreali iacet: UCP214 lineamenta 70mm gerebat pro spiculis metricis, cum lineamenta UCP214-44 69.85mm (2-3/4 inch) gestabant pro spiculis inch-basi. Dimensiones habitationum, foramen spatii fulminis, et onera ratings identificantur pro utroque variante.

Quomodo auto-aligning notam pulvinaris UCP214 stipes portantis opus?

Inserta portatio extra diametrum sphaericam habet quae congruens superficiei sphaerici intra habitationem aptat. Hoc permittit misalignmentum angularis inter hastile et habitationem usque ad plures gradus, compensans hastili deflexionis vel inaccuratiae ascendentis.

Quid densis mechanismus facit UCP214 usus afferens?

UCP214 duos cochleas in anulo interiore ponendo utitur ad claudendum stipitem portantem. Hoc positivus stipes fixationi praebet ac faciliorem institutionem et amotionem faciliorem reddat.

Quae industriae vulgo utuntur UCP214 portantes?

UCP214 gestus late adhibentur in systematibus vectionibus, machinae agriculturae, alitulae industriae et cornicines, apparatum sarcinarum, machinamenta textilia, inter alia applicationes industriales quae stimulum firmum subsidium requirunt.

Quid est temperatus range commendatus pro UCP214 afferens?

UCP214 gerens efficaciter operatur intra -20°C amplitudinem temperaturae ad 120°C, eamque aptam facit diversis ambitibus industrialibus.
