SA Sui Lubricating Rod finis Sphaerica Ferens

Home / Ferens / Virga finem ferens / SA Sui Lubricating Rod finis Sphaerica Ferens

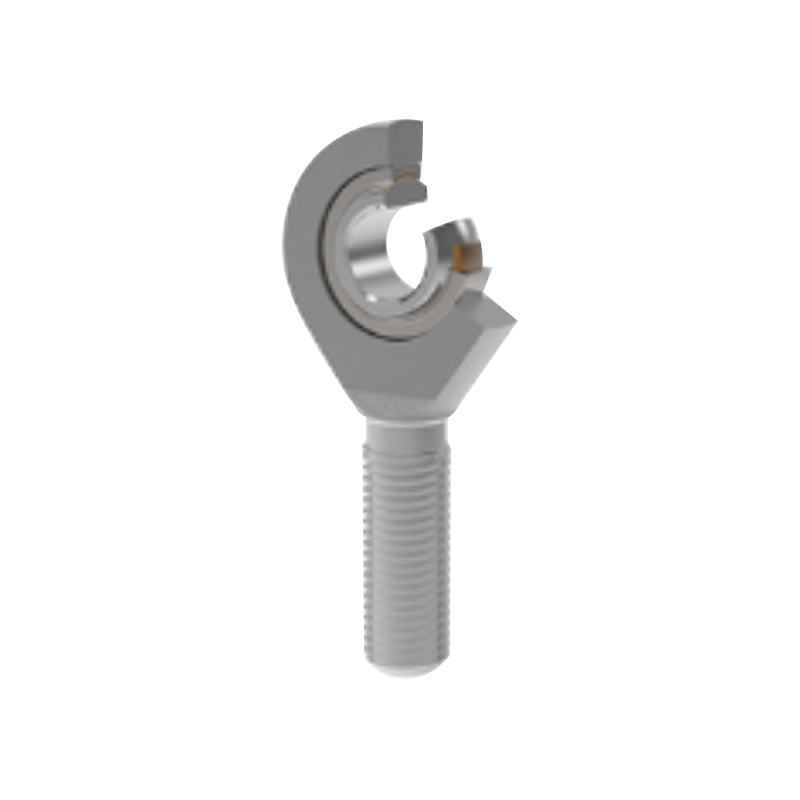

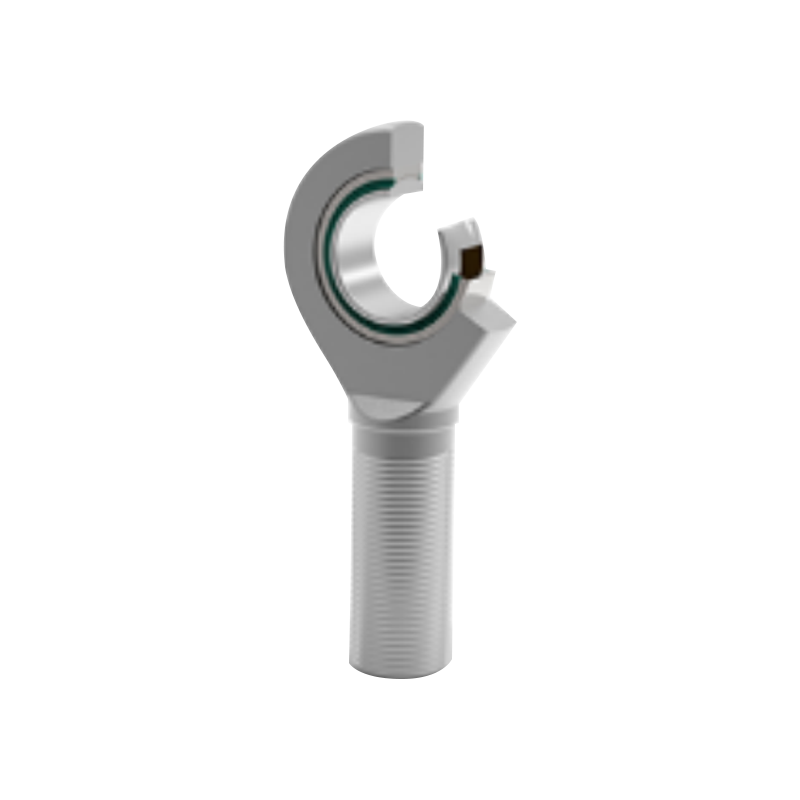

SA Sui Lubricating Rod finis Sphaerica Ferens

SA…C auto-lubricans conglobatur baculi finis gestus e virga extremitatis corporis colligentur et globosum radialem sui lubricantem gerentem GE…C. Virga extremitatis corporis fit de chalybe carbonario cum superficie galvanized; non requiritur lubricatio.
SA…ETL 2RS auto-lubricans conglobatur baculi finis gestus ex virga extremitate corporis et se-luctans radialem sphaericam gerentem GE…ET 2RS. Virga extremitatis corporis fit de chalybe carbonario cum superficie galvanized; lubrication non requiritur.

Contact Us Nobis Contactus
PRIOR:SI Sustentationem Free Rod finem supportantes SEQUENS:SIJK Precision Ferro Ferens
  • Descriptio
  • Specificationes
  • Nobis Contactus

Product Number
·SA...C 5～30
·SA...ETL 2RS 15～80

Illapsum Pal friction
·SA...C Steel/PTFE Materia composita
·SA...ETL 2RS Steel/PTFE tortis Fabric

Temperature Range operating
·SA...C 50℃～＋150℃
·SA...ETL 2RS 30℃～＋130℃
Virga finis gestus cum diversis vocibus vel speciali filo praecisione requisita in promptu sunt.
Si stamina sinistra est, exemplar afferens ac stamina notanda cum "L" et "sinistra", exempli gratia: SAL20C M20×1.5 supersunt 6g.

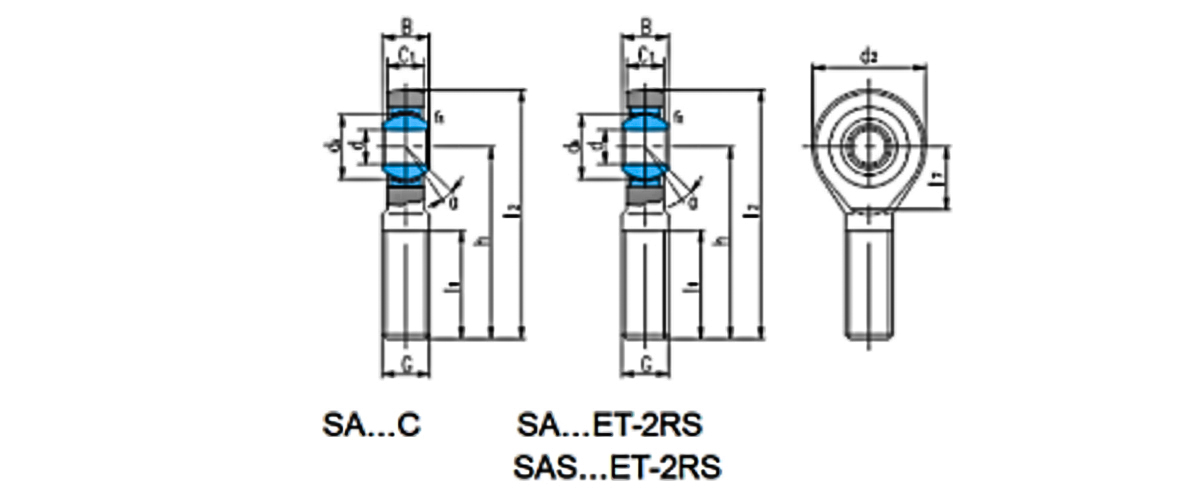

Ferens
numerus 		Dimensiones
mm/inch 		Onus ratings kN Pondus
≈kg
d B dₖ C₁
max 		d₂ G
6g 		h I₁
min 		I₂ I₇ r
min 		α°
≈ 		Dynamic Static
SA5C 5 6 10 4.5 21 M5 36 16 46.5 11.5 0.3 13 3.6 3.9 0.015
SABC 6 6 10 4.5 21 MB 38 16 46.5 11.5 0.3 13 3.6 5.5 0.016
SABC 8 B 13 6.5 24 MB 42 21 54 13 0.3 15 5.8 10 0.026
SA10C 10 9 16 7.5 29 M10 4B 26 62.5 15.5 0.3 12 8.6 16 0.050
SA12C 12 10 18 8.5 34 M12 54 2B 71 18 0.3 10 11 23 0.088
SA15C 15 12 22 10.5 40 M14 63 34 83 21 0.3 8 18 32 0.120
SA15ETL-2RS 25
SA17C 17 14 25 115 46 M16 69 36 92 24 0.3 10 22 44 0.190
SA17ETL-2RS 32
SA20C 20 16 29 13.5 53 M20×1.5 78 43 104.5 25.5 0.3 9 31 60 0.300
SA20ETL-2RS 45
SA25C 25 20 35.5 18 64 M24*2 94 53 128 31 0.6 7 51 85 0.555
SA25ETL-2RS 85
SA30C' 30 22 40.7 20 73 M30×2 110 65 146.5 35.5 0.6 6 65 110 0.875
SA30ETL-2RS 110
SA35ETL-2RS 35 25 47 22 82 M36×3 140 82 181 41 0.6 6 140 148 1.42
SA40ETL-2RS 40 28 53 24 92 M39×3 150 86 196 47 0.6 7 175 180 1.85
SAS40ETL-2R 40 28 53 23 92 M42×3 145 86 191 47 0.6 7 99 180 2.04
SA45ETL-2RS 45 32 60 28 102 M42×3 163 92 214 52 0.6 7 225 240 249
SAS45ETL-2RS 45 32 60 27 102 M45×3 165 95 216 52 0.6 7 127 240 2.74
SA50ETL-2RS 50 35 68 31 112 M45×3 185 104 241 60 0.6 6 275 290 3.58
SAS50ETL-2RS 50 35 66 30 112 M52×3 195 110 251 60 0.6 6 156 290 4.07
SABOETL-2RS 60 44 80 39 135 M52×3 210 115 277.5 75.5 1.0 6 430 450 5.89
SAS80ETL-2RS 60 44 80 38 135 M80×4 225 120 292.5 75.5 1.0 6 245 450 6.79
SA70ETL-2RS 70 49 92 43 160 M56×4 235 125 315 95 1.0 6 550 610 8.51
SAS70ETL-2RS 70 59 92 42 160 M72×4 285 132 345 95 1.0 6 313 610 11.2
SABOETL-2RS 80 55 105 48 180 M64*4 270 140 380 105.5 1.0 6 705 750 12.3
SAS80ETL-2RS 80 55 105 47 180 MB0×4 295 147 385 105.5 1.0 6 400 750 15.3
