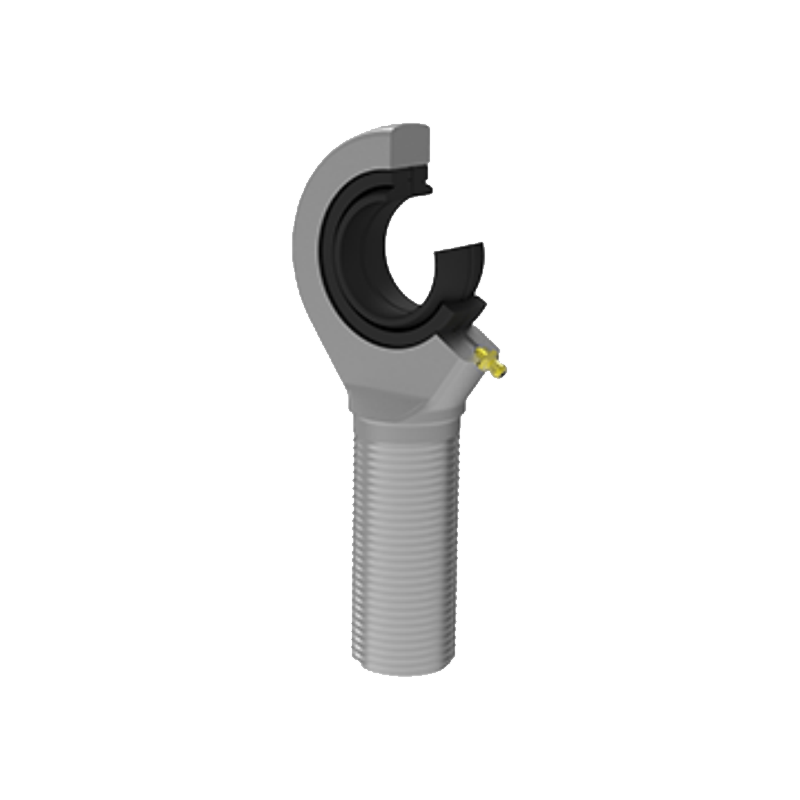

SA Zinc Coated Steel Rod End Bearing

Home / Ferens / Virga finem ferens / SA Zinc Coated Steel Rod End Bearing

SA Zinc Coated Steel Rod End Bearing

Haec series extrinsecus staminea constat, conglobata baculi tenuis gestus. Virga extremitatis corporis e chalybe carbonis cum meta galvanizata efficitur, et cum gestu sphaericis simplicis radialis vexillum componitur (GE...E/GE...ES)..

Contact Us Nobis Contactus
PRIOR:SI Steel De Steel Rod finem Ferens SEQUENS:SIZJ High Precision Carbon Steel Rod End Bearing
  • Descriptio
  • Specificationes
  • Nobis Contactus

· Product Number
SA…E 5～12 SA…ES 15～80
· PROLAPSIO Pair
Steel/Steel
· Temperature Range operating:
50℃ 150℃
· Lubricatio Methodi:
Suffixum "E"; Donec non consequat libero.
Suffixum "ES"; Offert vel oleum calicis vel baculi fine ocello lubricationis meatus.
· Optiones customization
Post Aliquam: Picis non-vexillis vel filo subtilitas postulantibus praeberi potest.
Sinistra manu Thread: Stamina sinistra require "L" et "sinistra" ut addantur post exemplar numeri et filum notationis. Exemplum: SAL20ES M20×1.5 reliquit 6g.

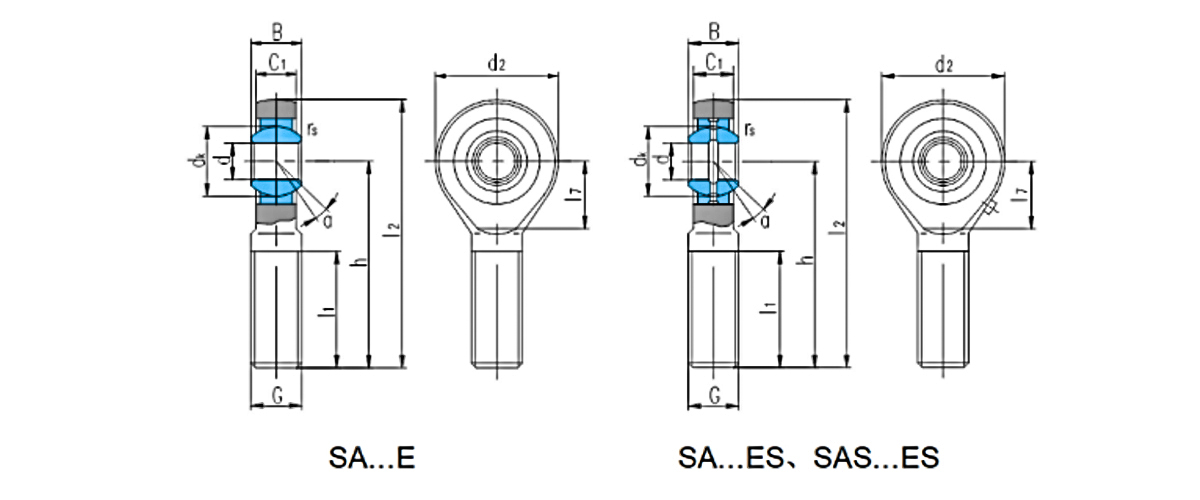

Ferens
numerus 		Dimensiones
mm 		Onus ratings kN Pondus
≈kg
d B dₖ C₁
max 		d₂ G
6g 		h I₁
min 		I₂ I₇ r
min 		α° Dynamic Static
SA5E 1) 5 6 10 4.5 21 M5 36 16 46.5 11.5 0.3 13 3.4 3.9 0.015
SABE 1) 6 6 10 4.5 21 M6 36 16 46.5 11.5 0.3 13 3.4 5.5 0.016
SA8E 1) 8 8 13 6.5 24 M8 42 21 54 13 0.3 15 5.5 10 0.028
SA10E 1) 10 9 16 7.5 29 M10 48 26 62.5 15.5 0.3 12 8.1 16 0.050
SA12E 1) 12 10 18 8.5 34 M12 54 28 71 18 0.3 10 10 23 0.088
SA15ES 2) 15 12 22 10.5 40 M14 63 34 83 21 0.3 8 16 32 0.120
SA17ES 2) 17 14 25 11.5 46 M16 69 36 92 24 0.3 10 21 44 0.190
SA20ES 2) 20 16 29 13.5 53 M20×1.5 78 43 104.5 25.5 0.3 9 30 60 0.300
SA25ES 25 20 35.5 18 64 M24×2 94 53 126 31 0.8 7 48 83 0.555
SA30ES 30 22 40.7 20 73 M30×2 110 65 148.5 35.5 0.8 6 62 110 0.875
SA35ES 35 25 47 22 82 M38×3 140 82 181 41 0.8 6 79 148 1.42
SA40ES 40 28 53 24 92 M39×3 150 86 196 47 0.8 7 99 180 1.85
SAS40ES 40 28 53 23 92 M42×3 145 86 191 47 0.8 7 99 180 2.04
SA45ES 45 32 60 28 102 M42×3 163 92 214 52 0.8 7 127 240 2.49
SAS45ES 45 32 60 27 102 M45×3 165 95 216 52 0.8 7 127 240 2.74
SA50ES 50 35 66 31 112 M45×3 185 104 241 60 0.8 6 156 290 3.58
SAS50ES 50 35 66 30 112 M52×3 195 110 251 60 0.8 6 156 290 4.07
SAB0ES 80 44 80 39 135 M52×3 210 115 277.5 75.5 1.0 6 245 450 5.89
SAS80ES 60 44 80 38 135 M80×4 225 120 292.5 75.5 1.0 6 245 450 8.79
SA70ES 70 49 92 43 160 M58×4 235 125 315 95 1.0 6 313 610 8.51
SAS70ES 70 59 92 42 160 M72×4 265 132 345 95 1.0 6 313 610 11.2
SA80ES 80 55 105 48 180 M64×4 270 140 360 105.5 1.0 6 400 750 12.3
SAS80ES 80 55 105 47 180 M80×4 295 147 385 105.5 1.0 6 400 750 15.3
